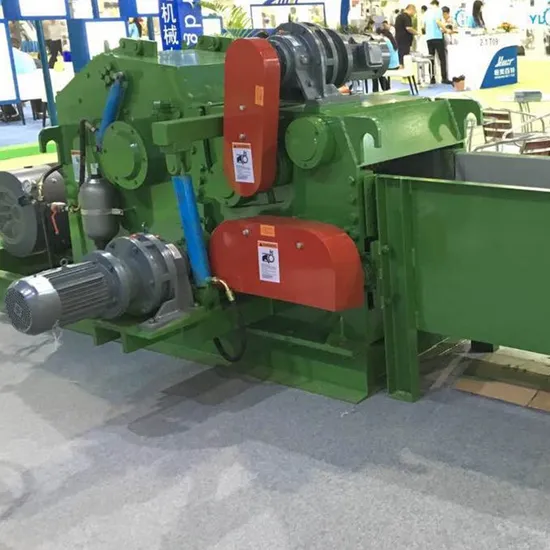

Shredder Wood Waste Tree Branches Drum Chipper and Wood Pellet Production Machines

Product Description

According to your raw materials sizes (average diameter,maximum diameter), kinds of materials (branches only, combined other wood panel boards?sawn waste?), no matter, yours raw materials and final product will affect machines recommend for you. Don't forget your expection capacity, crushing how many tons or cubic meters per hour.For example,small scale below

Knife rotor diameter	650mm
Knife rotor length	600mm
Max.production capacity	> 3ton/hour; 10(m3/h); u want 5ton/hour,20ton/hour or 2 ton per hour?
Feed inlet dimension	180x500 mm (inlet size under request ,depends on raw materials character)
Knife numbers	2pcs;3pcs
Main motor power	55kw(smalller or bigger ones according capacity adjustable)
Conveyor	conveyor length,width,height, suitable feeding raw materials or out-feeding chippers

According to the working conditions and the differentiation of the working scene, we can be transformed shredder machines to provide diesel engines, equip tires and other devices,under request to offer.

Diameter of drum	650mm	800	800	800	1000	1000	1000	1300	1300	1300	1300	1600
Intake size(H × W)	180×500mm	225×680	240×750	240×1050	330×750	330×850	330×1050	400×700	400×850	400×1050	400×1250	600×1250
Quantity of knife	2pcs	2	2	3×2	2	2×2	2×2	3	3×2	3×2	4×2	4×2
Rotating speed	590rpm	650	650	650	550	550	550	420	420	442	340	350
Feeding speed	37m/min	38	38	39	37	37	37	38	38	43	42	42
Max process log	120mm	160	160	For veneer	170	185	200	230	240	250	250	310
diameter size				sheet chip
Proudction Chip Capacity	10 m3/h	22m3/h	38m3/h	30m3/h	55m3/h	62m3/h	77m3/h	64m3/h	78m3/h	108m3/h	126m3/h	180m3/h
Wood chip size	30mm	30	30	20	33	33	33	30	30	32	32	30
Main motor power	55kw	110	132	160	160	185	220~250	200~250	250	315	450	710(10KV)

FAQ
Q1:Why ANJN? 100% customer oriented solution. 20+ years wood-based industrial team members. Strongest awareness protect customer business privacy. Deep insights&penetrate the tricks on the market. Familiar with international jargon. Attention to detail&integrity allows us to grow.
Q2:Could u offer engineer service at sight? Yes,as normal,ours engineer with experienced,and visa services,tickets,and flight.
Q3:Can you offer good price with fine quality also? Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Because we are always expecting long term business. Regarding the price.we are not sure if it is lowest or highest,But we will be offering reasonable.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.
Q4:Can you customize products for clients? Yes We can customize products according to the customer's requirements or drawings.At same time,Strongest awareness protect customer business privacy.
Q5:What's your warranty? can you do more service for us? we wish would be protected after purchasing machine? We are pleased to give products continuous after sales service. Within 12 months, if spareparts broken,we will response timely. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficulty. we must help to make solutions within 48 hours.
