400kg/Hour Guangxin Sunflower Peanut Soybean Oil Pressing Machine with Oil Filter

Product Description

Product Description
Guangxin YZLXQ140 Automatic Tempeture Control Combined Oil Press Machine with Air Pressure Oil Filter + Squeeze Chamber Heating System
With Processing Capacity 10TONS PER DAY | 400KG Per Hour
Suitable for Peanut,Coconut, Soybean, Sunflower, Mustard Seeds,etc oil seeds.
30YEARS FACTORY OF OIL PRESS MACHINE ---GUANGXIN

Mian Product: Oil Press Oil Mill Oil Extraction Oil Processing Machine Oil Filter Oil Refinery Seeds Roaster Machine

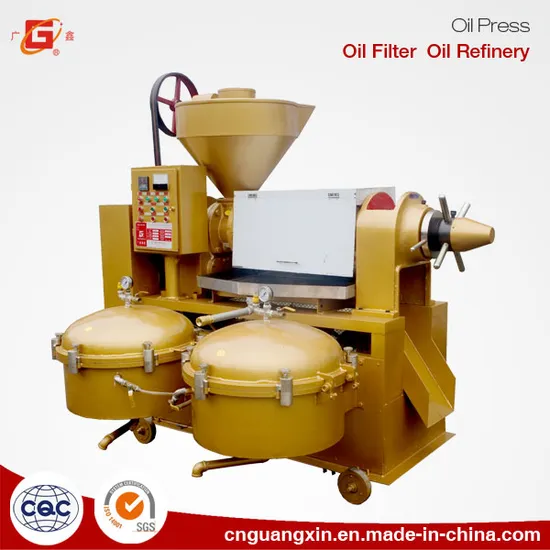

YZLXQ140 Automatic Tempeture Control Combined Oil Press with Air Pressure Oil Filter (Processing Capacity 400Kg Per Hour)
The function of auto controlling the temperature of the press chamber, replaced the traditional way by squeezing residue cake, which could shorten the preparation work, reduce the energy consumption and machine's abrasion. When the squeezing is suspended, the temperature can be maintained by this system. In the meanwhile, this machine was added with filtration function. The crude oil flowing out from the press cage will directly be filtrated in time.

Item	YZLXQ140
Processing Capacity	10Tons Per 24hours a day
Revolving speed of spiral axis (r/min)	32~46
Transmission type	Triangle belt Transmission
Power required(kw)	18.5 or 22KW
Temperature control power (kw)	≥3
The power for power (kw)	1.5
Oil content of dry cakes	≤7.6
Measurement (mm)	2120 x 1610 x 2000
Weight (kg)	1360

Detailed Photos
Suitable oil seeds
Guangxin Brand spiral oil press made by our company is suitable for squeezing many kinds of vegetable oil, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds, sesame seeds, corn germ, palm kernel, etc.
Applicable oil producing business
1. Small or medium oil refinery use it on oil production line.
2. Personal users use it in farmer's market, either to make oil to sell or for clients with supplied material and earn the processing fee. Client could see how the oil being extracted from the machine, so trust the oil quality. This type of business is very popular in developping and undevelopping countries.
1.Saving preheating time: The heating rings will heat pressing cage Automatically ,saving preparing time.
2.Multi-functional Pressing: Suitable for both cold and hot pressing.
3.User-friendly operation: The motor is installed under the oil press and the protective cover is used to protect it, which not only greatly reduces the area, but also enhances the safety performance of the oil machine.
4.Wide Application: It suitable for small scale or medium scale oil mill.
Our Advantages
Description of Automatic temperature controlled combined oil press machine
The automatic temperature controlled combined oil press is built up with electricity controlling part, auto heating and squeezing system, transmission part, oil filtrating system, and machine pedestal.
The electric controlling department mainly consists of air switch, AC contactor, thermal relay, automatic heating, temperature controlled unit, knob switch, and controlling button part, etc.
The auto heating and squeezing department mainly consists of heating part, squeeze cage part and squeeze spiral part etc.
The transmission part includes electromotor, triangle belt, and deceleration box, etc.
The filtration department mainly consists of two filter tanks for alternating using.
Product Parameters
Guangxin Single Oil Press Machine

Model	Processing Capacity (t/24h)	Motor Power (kw)	Weight (kg)	Measurement(mm)(L*W*H)	Oil Content of Dry cakes (%)	Spiral Axes Rotate Speed (r/min)
YZYX70	1.3	4	195	1180*405*1120	≤7.8	33-42
YZYX90	3	5.5	285	1250*550*1140	≤7.8	32-42
YZYX10(95)	3.5-4	7.5 or 11	528	1650*730*1340	≤7.8	32-40
YZYX10-6/8/9	4.5	11	590	1760*730*1340	≤7.8	32-40
YZYX10J-2	4.5	11	600	1770*730*1340	≤6.0	32-40
YZYX120	6.5	11 or 15	680	1860*740*1275	≤7.0	28-40
YZYX130	8	15 or 18.5	825	2020*742*1420	≤7.6	32-40
YZYX140	9-11	18.5 or 22	806	2010*750*1430	≤7.6	32-40
YZYX120J	7	11 or 15	718	2110*780*1350	≤6.0	35-40
YZYX130GX	8-10	18.5	998	2100*820*1400	≤7.8	30-40
YZYX140GX	9-11	18.5 or 22	1000	2150*820*1420	≤7.8	30-40
YZYX140CJ	9-11	22	980	2220*750*1420	≤7.8	32-40
YZYX140CJGX	9-11	22	1100	2300*820*1420	≤7.8	30-40
YZYX168	20	37 or 45	1820	2750*1100*1830	≤7.4	36-44

Our series YZLXQ140 combined spiral oil press is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc.
The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
Main Features:
Compared with other manufacturers, our product shared with the below main advantages:
1. High efficiency!! Residual oil of the cake is less than 7.8%
2. Low cost!! Our machine have more favorable price compared with our competitors
3. Easy operation!! Our machines are easy to be operated, we also provide thoroughly operation manual in English and Chinese for your reference.
4. Long durability!! Squeezing loop and squeezing spiral are conducted heat treatment as carburizing and quenching.The lifetime of our machines reach over 10 years, plus, we produce almost all the parts of the machines in our own plant, so the wearing parts and spare parts are available all year round, which solve your after-service concerns.

Company Profile




FAQ
FAQ
1. Delivery time.
---20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.
2. If I don't know how to operate this machine? how can I do?
----Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
3. What's wear-in for new machine?
---- use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1st hour, adjust oil cake thickness as 3mm.
2nd hour, adjust oil cake thickness as 2.5mm.
3rd hour, adjust oil cake thickness as mm.
4. What are cold press and hot press?
----Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
----Hot press is pressing roasted seeds. Usually only press 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture. (We produce seeds roaster heated by economical fuel.
30YEARS FACTORY ---------------- your honest parter
