Fabric System Stretcher Linear Tensioners Tension Tensioner Felt Tensioning

Fabric System Stretcher Linear Tensioners Tension Tensioner Felt Tensioning

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
Felt Tensioner
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE, SGS
Surface Treatment
Polishing
Manufacturing Process
Casting
Material
Stainless Steel
Condition
New
Transport Package
Paperboard Box and Wooden Box
Trademark
HUATAO
Origin
China
Production Capacity
10sets Per Month

Product Description

Paper Machine Felt Guide Tensioner Company Profile
Huatao Group is set up in 2008. The main business is to serve the pulp and paper industry by providing quality accessories and paper machine renovation services to help customers solve various problems in production, improve production efficiency and reduce energy consumption.
Huatao Group has a professional technician team that is devoted to pulp and paper industry. We are able to make the best proposal after completely analyzing and figuring out our problems of the paper production line through paper-making progress, equipment, electric automatization, and so forth.
We follow the "short process" concept in implementing the customer's projects to reduce energy and water consumption. On the premise of quality assured, the running speed of paper machines are made in the best condition and manufacture cost decreased on the bottom.
In addition to providing equipment, it is more important to provide technical services, including engineering, system integration, and equipment upgrade services.
Product Description

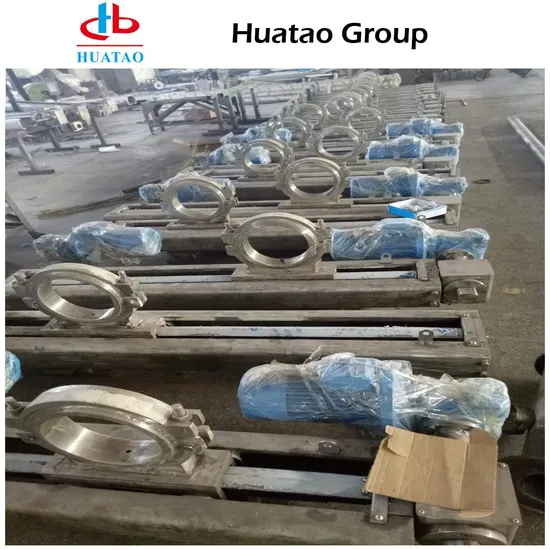

Felt Stretcher / Felt Guide Tensioner - Motorized
Can be installed in the drying/wet section.
Highly compact and can be installed in any position.
Made in stainless steel or painted steel.
Available standard 800-1000 mm strokes and various sizes according to the machine width.
Inserted into the line for the production of paper, its specific function is to maintain the tension of the wire/felt during the sliding phase of the paper, in non-stop production.
As the wire/felt becomes loose, the load cell installed in the wire/felt circuit or installed on the stretcher, detects the tension and sends the signal to the PLC of the control panel which moves the tensioning roll until the wire/felt automatically returns to the set tension.
The correct tension of the wire/felt improves the quality of the paper.
Our tensioners/stretchers are built for heavy duty operations & are easy to operate even under harsh conditions. It ensures exact roll positioning with thread spindle drive.
Detailed Photos

Our Professional Team
