High Performance New Sumore Tool Power Tools Industrial Drill Press Vertical Drilling Machine

High Performance New Sumore Tool Power Tools Industrial Drill Press Vertical Drilling Machine

US$8,300.00 1 set (MOQ)

Basic Info.

Model NO.
SP5163A
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Manual
Certification
CE
Condition
New
Drilling Capacity
63mm
Main Motor Power Kw
5.5
Exterior Dimensions
1200*800*2400
Machine Tool Weight Kg
2500
Outline Dimension mm
1050*710*2540
Transport Package
Plywood Box
Trademark
SUMORE
HS Code
8458912090
Production Capacity
1000

Product Description

Product Description

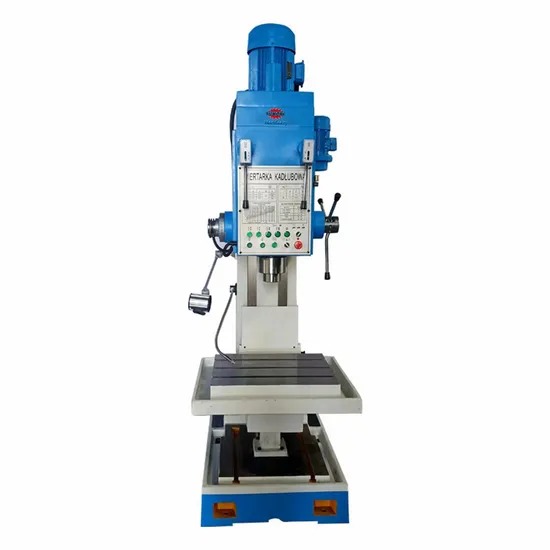

SP5163A Drill Press Drilling Machine 63mm Bench Vertical Drill Press Machine With Factory Price SUMORE
1. Z5163A square column type vertical drilling universal machine tool, which can be used for drilling, reaming, countersinking, boring, tapping, etc. The automatic reversal of spindle tapping and inching feed are very convenient for blind holes and fixed depth holes.
2. The machine tool has high efficiency, good rigidity, high accuracy, low noise, wide speed change range, centralized operation, novel appearance and convenient use and maintenance.
3. Multi axis machine can realize simultaneous processing of multiple holes and greatly improve processing efficiency.
Product Parameters
Main technical parameters
SP5163A
Maximum borehole diameter
ะค63mm
Main motor power
5.5kw
Mores
NT5
Feed range
0.056-1.8mmr(6steps)
Spindle stroke
250mm
Spindle box stroke (manual)
200mm
Spindle Drilling Speed Series
9
Main shaft speed
40-780r/min(9steps)
Workbench area
650x550mm
Vertical travel of worktable
300mm
Distance from spindle centerline to track
375
Distance from end face of spindle to worktable
400-900mm
Exterior dimensions
1200*800*2400
Machine tool weight
2500kg
Machine tool weight kg
1250
Outline dimension mm
1050*710*2540

As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
