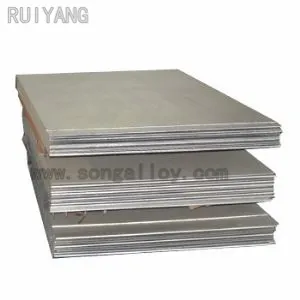

Titanium and Titanium Alloy Plate

Titanium and Titanium Alloy Plate

US$15.00-50.00 100 kg (MOQ)

Basic Info.

Model NO.
0.3-100
Hot Rolled Thickness
4.1-100
Width
Max3000mm
Length
Customed
Type
Titanium Sheets
Application
Industrial, Medical
Technique
Cold Rolled
Grade
GR1
Transport Package
Wooden Box
Specification
4.1-100
Trademark
Ruiyang
Origin
China
HS Code
81089090
Production Capacity
5000tons/Year

Product Description

Titanium Sheet & Plate Available from 0.3mm to 100mm thick cold roll and hot roll SIZES:
Sheet is 0.3mm to 4.1mm thick, up to 1500mm width cold roll
Plate is 4.1 mm to 100mm thick, up to 3000mm width hot roll
PROCESSING
Hot rolling and cold rolling
PROCESSING STANDARD:
ASME SB/B265, AMS 4911, AMS 4919, AMS 4914, ASTM F67, ASTM F136, ASTM F1341, ISO 5832-2, MIL-T-9046
EXAMPLE APPLICATIONS:
Fire wall, driver protection, valve covers, bell housings, driveshaft tunnels, brake backing plates, heat shields, rocker shaft stands, jewelry etc
STANDARD CHEMICAL COMPOSITION (weight %, max or range) MECHANICAL PROPERTIES (min)
ASTM B265 UNS
No		 N C H Fe O Al V Pd Mo Ni Tensile Yield El. Red.
Mpa Mpa % %
GR 1 R50250 0.03 0.08 0.015 0.2 0.18 240 138 24 30
GR 2 R50400 0.03 0.08 0.015 0.3 0.25 345 275 20 30
GR 3 R50550 0.05 0.08 0.015 0.3 0.35 450 380 18 30
GR 4 R50700 0.05 0.08 0.015 0.5 0.4 550 483 15 25
GR 5 R56400 0.05 0.08 0.015 0.4 0.2 5.5-6.75 3.5-4.5 895 828 10 25
GR 7 R52400 0.03 0.08 0.015 0.3 0.25 0.12-0.25 345 275 20 30
GR 9 R56320 0.03 0.08 0.015 0.25 0.15 2.5-3.5 2.0-3.0 620 483 15 25
GR 12 R53400 0.03 0.08 0.015 0.3 0.25 0.2-0.4 0.6-0.9 483 345 18 25
GR 23 R56401 0.03 0.08 0.0125 0.25 0.13 5.5-6.5 3.5-4.5 828 759 10 15
TITANIUM MATERIALS SUPPLY SCOPE
TITANIUM GRADE UNS NO. WIRE BAR SHEET PLATE TUBE PIPE FITTING FORGING FASTENER
Ti Grade 1 R50250 √ √ √ √ √ √ X √ √
Ti Grade 2 R50400 √ √ √ √ √ √ √ √ √
Ti Grade 3 R50550 √ √ √ √ X X X √ √
Ti Grade 4 R50700 √ √ √ √ X X X √ √
Ti Grade 5 (6Al 4V) R56400 √ √ √ √ X X X √ √
Ti Grade 7 (0.2Pd) R52400 √ √ √ √ √ √ √ √ √
Ti Grade 9 (3Al 2.5V) R56320 √ √ √ √ √ X X √ √
Ti Grade 11 R52250 √ √ √ √ √ √ X √ √
Ti Grade 12 (0.3Mo 0.8Ni) R53400 √ √ √ √ √ √ √ √ √
Ti Grade 17 R52252 X √ √ √ √ √ X √ √
Ti Grade 23 (6Al 4V Eli) R56401 √ √ √ √ X X X √ √
Notes 1) √-Available, X-Unavailable
Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details.
Notes 3) It may differs a little for materials in different sizes, please also contact us.
Titanium and Alloy Products
Product name Specifications
Titanium Rod & Bar & Ingots Ф3mm~Ф1020mm,the maximum weight is up to 12t
Titanium Slab (80~400)mm×(~1500)mm×(~2600)mm
Titanium Forgings Weight per piece≤2000kg
Titanium Hot-rolled plates (4~100)mm×(800~2600)mm×(2000~12000)mm
Titanium Cold-rolled Sheet (0.01~4.0)mm×(800~1560)mm×( ~6000) mm
Titanium Foil / Strips (0.01~2.0)mm×(800~1560)mm×L
Titanium Tubes / Pipes Ф(3~114)mm×( 0.2~5)mm × (~15000)mm
Standards GB,GJB,ASTM,AMS,BS,DIN,DMS,JIS,ГОСт
Titanium Grade GR1,GR2,GR3,GR5,GR7,GR12 BT1-00,BT1-0,BT1-2 TA0,TA2,TA3,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4
Titanium Production Process
Titanium Production Equipment
Welcome to conact us for titanium inquiry
