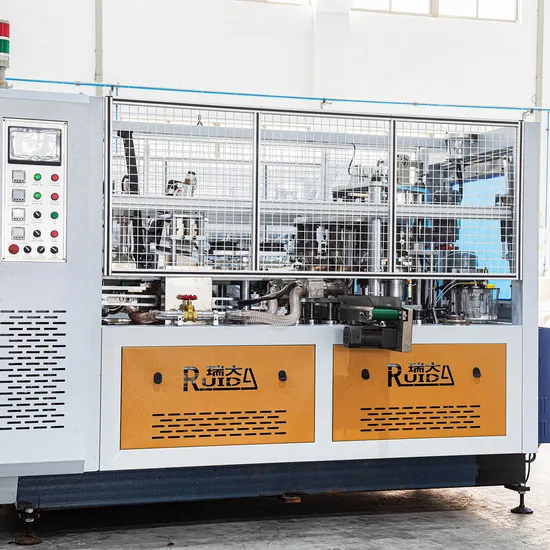

Ce Approved Automatic High Speed Paper Bowl Machine (RD-12/22-100B)

Product Description

RD-12/22-100B high speed paper cup forming machine comes with two turnplate,open intermittent indexing cam mechanism and gear transmission,longitudinal axis structures.The machine comes with PLC control system,sensorfailure detecting,and can stop working automatically if the machine has any problem,it can greatly improve operation safety and reducing labor cost.The machine can finish the whole process including paper feeding,side sealing,cup bottom punching & feeding,heating,knurling,cup-top curling,cup stacker.It is the best choice for making paper cups. Product Description

Model	RD-12/22-100B
Cups Specifications	6-22OZ
Cups material	Single PE/Double PE coated paper (Any one can be)
Paper Specifications	190-500g/m²
Speed	60-80 pcs/min
Weight	3500kg
Gas source	0.4m³/min
General Power	9Kw
Power supply	220v/380v, 50Hz
Packing Dimensions	2730*1660*1800mm(L*W*H)
Port	Ningbo/Shanghai
Shipping Details	By sea/air,according to customers' requirements.
Cup Use	Round paper cups, drinking , noodle and vending cups ice-cream and food containers
Other Products	Paper cup machinery,die cutting machine,paper cup forming machine,cup top flatten machine and other products.

The characteristic of the machine:
1.High speed paper cup forming machine comes with two turnplate, open intermittent cam mechanism and gear transmission, longitudinal axis structures. The cam is made in Korea.
2. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly.
3. Bottom sealing by hot air devices, so that the machine is efficient, the hot air device is imported from Switzerland.
4. Cup side sealing by ultrasonic, Evergreen which is made in Taiwan.
5. Cup top curling has two steps, rotary curling and heating figuration, which makes the curling more stable and with better appearance (round and smooth).
6. The machine comes with PLC control system, sensor failure detecting and it stops working automatically if the machine has any problem, it can greatly improve operation safety and reducing labor cost. THE PLC, touch screen, Invertor, temperature controller and sensor is made in Korea.
7. More efficient and higher performance.
8. It is easy to make cups with different sizes by changing moulds.
9. With automatic cup delivery system and counter.
10. The machine dimensions is smaller than RD-12/22 machine, more compact.
