Hck280 Ton Custom Plastic Flip Cap Injection Molding Machine
Basic Info.
Model NO.
HCK280
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Ejector Force
80kN
Factory
More Than 20 Years Experience
Power(W)
30 Kw
Ejector Force(kN)
80kN
Single Gross Weight
2000.000 Kg
Ejector Stroke(mm)
150mm
Injection Weight (G)
772g
Condition
New
Key Selling Points
Competitive Price
Place of Origin
Zhejiang,China
Open Stroke(mm)
560mm
Brand Name
Haichen
Product Name
Small Iniection Molding Machine
Plastic Processed
PP,Pet,PVC,FRPP/PVC,PPR,PE,HDPE/PP ABS/PP,PE/PP
Distance Between Tie Bars
620*570mm
Transport Package
Standard Machine Packing
Trademark
Haichen
Origin
China
HS Code
8477101090
Production Capacity
226 Set/Sets Per Month Injection Molding Machine
Product Description

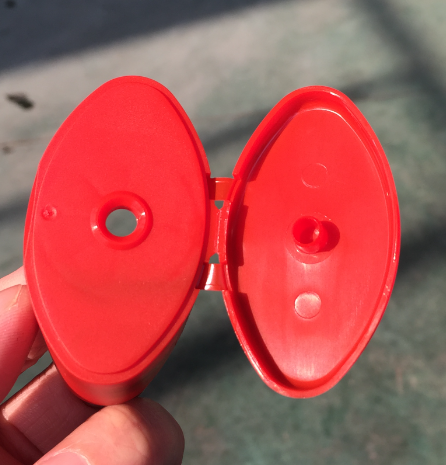

HCK 280 ton custom plastic flip cap injection molding machine| Name:flip cap |
As long as there is the weight, size and output of the products, our machines can produce flip cap in different types and colors.
Double rod injection structure,injection more durable.
Injection cylinder and drive shaft intergrated to ensure the injection mechanism coaxiality and straightness.
Injection adopts high precision linear guide rail to reduce the load of storage stable back pressure.
| INTERNATIONAL CLASS NO | HCK280 | |||
| INJECTION UNIT | ||||
| A | B | C | ||
| Screw diameter | mm | 55 | 60 | 65 |
| Screw L/D ratio | L/D | 21.8 | 20 | 18.5 |
| Shot volume(theoretical) | cm3 | 713 | 848 | 995 |
| Injiection weight(ps) | g | 649 | 772 | 906 |
| oz | 22.9 | 27.2 | 32 | |
| Injection pressure | Bar | 2114 | 177 | 1514 |
| Injection rate | cm3/s | 243 | 288 | 338 |
| Plasticizing capacity | g/s | 36 | 46 | 56 |
| Screw speed (Max.) | r/min | 220 | ||
| CLAMPING UNIT | ||||
| Clamping force | kN | 2800 | ||
| Space between tie bars(W×H) | mm | 620×570 | ||
| Platens size | mm | 880×830 | ||
| Opening stroke | mm | 560 | ||
| Min.Mold height | mm | 270 | ||
| Max.Mold height | mm | 620 | ||
| Distance between platens(daylight | mm | 1180 | ||
| Ejector stroke | mm | 150 | ||
| Ejector force | kN | 80 | ||
| OTHERS | ||||
| Systerm pressure | Bar | 175 | ||
| Pump motor | KW | 30 | ||
| Heating power | kW | 16 | ||
| Oiltank cubage | L | 300 | ||
| Machine dimension(L×W×H) | m | 6.0×1.5×2.3 | ||
| Machine weight | t | 9 | ||
We are prefessional production base specialized in designing and manufacturing plastic injection machines and enjoy high reputation in the Plastic machinery industry.
