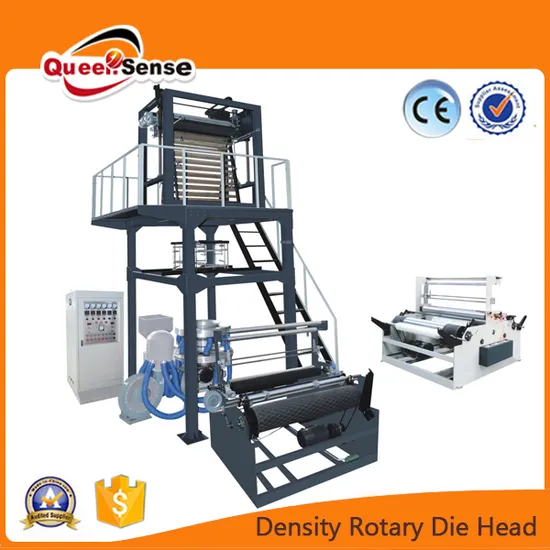

Film Blowing Machine (PE Heat-shrinkable)
| US$10,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QS-B50/55/65
Maximum Folding Width of Film
1200mm
Screw Diameter
120mm
Automation
Automatic
Computerized
Computerized
Machine Weight
8T
Certification
CE, ISO9001:2008, QS
Max.Extrusion Output
70kg/H
Driving Motor
22kw
Die Size
120/250mm
Weight
3500kg
Transport Package
Wooden Box
Specification
CE, SGS
Trademark
QUEENSENSE
Origin
China
HS Code
8477309000
Production Capacity
1000PCS/Year
Product Description
This unit uses LLDPE as main material and adopts several kinds of resins to manufacture the single/double-side self-sticky stretch wrapping film. The film has good tensile strength, anti-pricking ability and impact strength. Its good shrinking memory function and self-sticky can make goods integrity to prevent goods from loosening and collapsing during transportation and being polluted by dust. The transparency and tensile strength of this product can make the packaging beautiful, economical and practical.
| Model | SJ-B50 | SJ-B55 | SJ-B65 |
| Screw Diameter | 50mm | 55mm | 60mm |
| Screw Ratio(L/D) | 28: 1 | 28: 1 | 28: 1 |
| Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min |
| Power of Main Motor Max Output | 11Kw 35kg/h | 15Kw 50kg/h | 15-18.5Kw 65kg/h |
| Max. Folding Width of Film | 600mm | 800mm | 1000mm |
| Single-sided Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Total Power | 22Kw | 26Kw | 30Kw |
| Weight of Machine | 2T | 2.3T | 2.6T |
| Overall Dimensions | 4000 x 1800 x 4600mm | 4200 x 2000 x 4900mm | 4600 x 2300 x 5600mm |
