Factory Direct Sales 500V Rated Voltage Electricity Switching Capacitor Contactor

Product Description

Product Description
INTELLIGENT CAPACITOR CONTACTOR
The C/19 switching capacitor contactor is an improved design and manufacturing of our company based on the 3TK44cahacitorcontactor (capacitor contactor) manufactured by Siemens of Germany. It has a compact structure, the main circuit and the resistor circuit are integrated, and the main circuit wiring is convenient. It is a commonly used contactor for controlling small-capacity capacitors.We can meet a large supply capacity of 20,000 units per month, catering to the needs of various industries, including yours, user, who requires a substantial quantity for their operations.Product Parameters

SPECIFICATION
Product Name	Switching Capacitor Contactor
Keywords	Device Intelligent Capaciton Contactor
Model	BOSD-CJ19
Use Conditions	altitude </=2000m
Ambient Temperature	-25 Celsius-+40 Celsius
Installation Surface Tilt	<5 angle
Rated Insulation Voltage	500V
Control Coil Voltage Range	85~110%
Mechanical Life	<1 million times
Electrical Life	<100,000 times
Auxiliary Circuit Insulation Voltage	500V
Rated Current	6A
Auxiliary Contact Life	100,000 times
Limit Closing Inrush Current	</=20lc
Voltage Level Of Control Coil	AC 48V, 127V, 220V, 380V
We support customized capacitor contactors for various needs

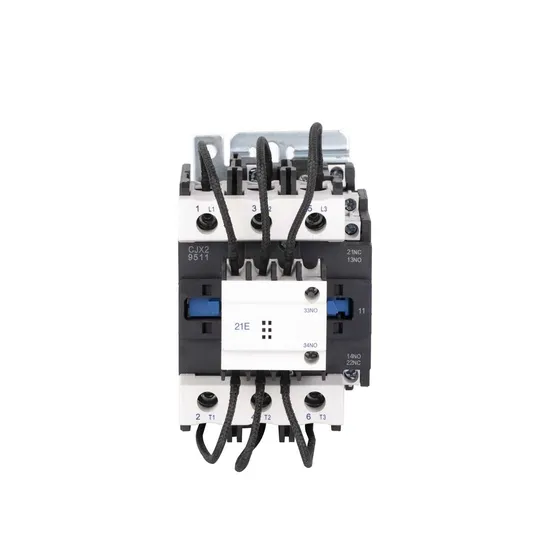

Detailed Photos
PRODUCT FEATURES
It realizes the perfect combination of measurement and control technology and synchronous switch, controls the action speed of the switch, eliminates bounce, improves life, tracks and corrects the closing phase angle, and reaches a switch life of millions of times. Compared with existing similar intelligent power capacitor contactors, it has many advantages such as high reliability, few faults, low power consumption, and long life.WORKING CONDITIONS
After the capacitor contactor is disconnected from the power supply, the residual voltage of the capacitor must be reduced to 10% of the rated voltage before it can be put back into operation. Usually this time takes about 200 seconds, so the controller should have a lock time function after disconnection and then put into operation. If a general controller is used, a quick discharge facility must also be installed separately.ELECTRICAL SAFETY
Compensation is carried out in the most appropriate way, various control functions are perfect, and it has the function of high-end power analyzer, complete functions, good performance, and can also be configured with a variety of peripherals to meet different customer needs.PRODUCT PROTECTION
The product has complete measurement and protection functions, and has special protections such as control room body temperature, power grid harmonic content, phase failure, and three-phase imbalance.FEATURES
The contact system of the contactor is composed of eight contacts in two layers, forming a three-pole main circuit. One contact in each pole main circuit is connected in advance, and there are only two cut-in resistors. Because the capacitor bank is connected in a triangle, when the resistor cut-in circuit is connected, a resistor is connected in each phase capacitor circuit.FAQ
Q1. What's the order process?
1)Inquiry-Provide us with all clear requirements (total qty and package details).
2)Quotation-official quotation with all clear specifications from our professional team.
3)Marking Sample-confirm all quotation details and the final sample.
4)Production-mass production.
5) Shipping by sea or by air.
Q2. What terms of payment do you use?
As for the payment terms, it depends on the total amount.
Q3 . How do you ship the products?
By Sea, By Air, By courier, TNT, DHL, FedEx, UPS Etc. It is up to you.
Q4. How would I get a price list for a wholesaler?
Please e-mail us, and tell us about your market with MOQ for each order. We will send the competitive price list to you ASAP.
Q5. What is your product warranty?
We are an ISO9001 & CCC certificated enterprise in China, we supply long-life free maintenance.
