Rubber Floor Tile Vulcanizer for Gym Sports Rubber Flooring Mat Making Machinery

Product Description

Rubber Paver Tile Making Machine Rubber Tile Floor Vulcanizing Machine Rubber Floor Mats Pressing Machine
Rubber flooring tiles product line is one type of environmental type rubber machine , it is used to process the waste tire rubber granules to be different types of rubber flooring tiles by vulcanizing and solidifying . Meanwhile , it can also process the PU granules , EPDM granules and nature rubber to be tiles . Generally we can customize the machine according customer need.
Machine Features
1,This machine is used to heat , vulcanize and solidify the rubber compound from mixer machine to be 500*500mm and 1000*1000mm rubber tiles.
2,One set molds includes one top mold and two bottom mold .

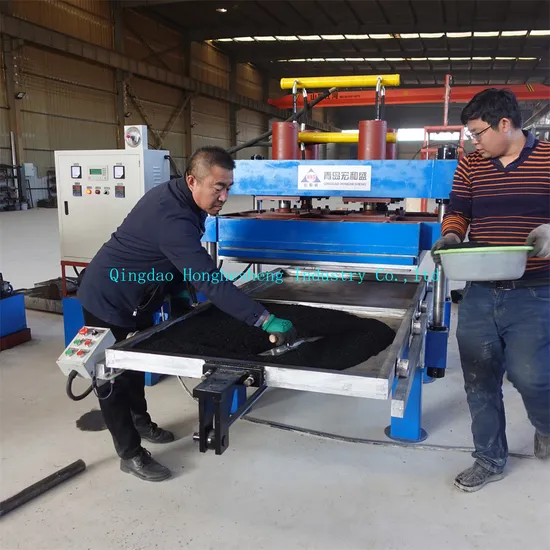

3,As showed in picture , the machine is equipped with adjustable rail device , which is used to push mold in and out for easy operation.
Production Process ♦ Conching: Put the rubber granulates and stain into the stirring barrel to stir,and then put into the adhesive to stir,this process requires for 4-6 minutes( because the adhesive is easy to cure, so stir it when use ).
♦ Weighing raw materials: weight the rubber granulates stirred, according to the granulates' thickness requirement of the tiles .
♦ Paving and pressing: Paving the rubber granulates weighted on the mold, then floated it by trowel. Firstly paving the surface rubber granulates which is fine and color, then the thickness and black.
♦ Vulcanization molding: Covering anti adhesion cloth, pushing the mold into vulcanizer to vulcanize, the time of vulcanization accord to the thickness of the rubber tiles, in general, 3-8inutes finished. After that, Mold separate automatic, thenremove floor tile on the shelves to dry.
♦ Inspecting: Inspect the surface of the floor tiles formity, no aberration, no flaw, line with the product quality.

Technical Parameter

Parameter/model		XLB-D 550x550x4	XLB-D 1100x1100x1	XLB-D 1100x1100x2
Structure		Column	Column	Frame
Plate size (mm)		550x550	1100x1100	1100x1100
Plate QTY		5	2	3
Working layer		4	1	2
Motor power(kw)		3	5.5	5.5
Heating power(kw)		18	26.4	39.6
Plate distance (mm)		200	200	200
Piston stroke (mm)		600	200	400
Size (mm)	Length	800	1300	1600
	Width	1600	3300	3300
	Height	1900	1800	3000
Weight (KG)		2000	5000	8000

Machine Pictures
Machine Delivery
Other Rubber Machines
Our factory is professional in manufacturing different types of plate vulcanizer,also can manufacture rubber cutter,open mixing machine,and kneading machine,etc. Welcome to contact me for more machine details~~
