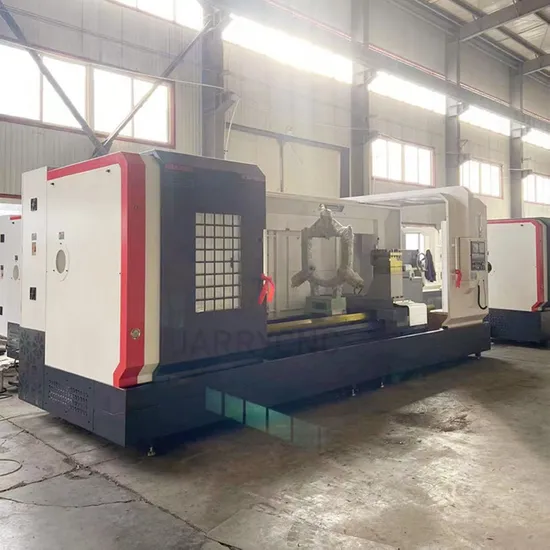

Precision Metal Turning Machine Horizontal Ck6180 Flat Bed Lathe CNC Lathe

Product Description

Product Parameters

CK6136/6140 Flate Bed CNC Lathe
Specification:
Item	Discription	CK6136	CK6140
1	Max.swing over bed (mm)	Φ360	Φ400
2	Max.swing over toolpost (mm)	Φ210	Φ240
3	Distance between centers of spindle to tailstock(mm)	750/1000/1500
4	Max.machining length(mm)	750/1000/1500
5	Chuck size(mm)	Φ160
6	Spindle nose and taper style	A2-6
7	Spindle speed range(RPM)	60-2000
8	Spindle bore dia.(mm)	Φ60
9	Spindle power(KW)	5.5KW
10	Torque of Feed Motor(X/Z,· N/M)	5/6
11	Rapid traverse speed(X/Z, M/MIN)	4/7
12	Tool Post Stations No.	4
13	X/Z Accuracy of positioning repeatability	0.01/0.01
14	Quill diameter(mm)	Φ55
15	Quill travel(mm)	120
16	Taper of quill	MT4
17	Guideway width(mm)	330
18	Overall size(L*W*H)(mm)	2220/2540/3040×1420×1750
19	Net Weight(KG)	1500/1700/2100
Standard Accesseries:Ø160-3Jaw-Chuck;4 Station Electrcal Tool Post;Coolant System;Automatic lubrication System;Working Lamp.
Option:
AC Servo Motor To Drive Main Spindle
6 or 8 Positions Turret Tool-Post
Pneumatic or Hydraulic Chuck

CK6150/6156 Flate Bed CNC Lathe
Specification
Item	Discription	Parameter
		CK6150	CK6156
1	Max.swing over bed (mm)	Φ500	Φ560
2	Max.swing over toolpost (mm)	Φ280	Φ340
3	Distance between centers of spindle to tailstock(mm)	1000/1500	1500/2000
4	Max.machining length(mm)	1000/1500	1500/2000
5	Chuck size(mm)	Φ250
6	Spindle nose and taper style	A2-8
7	Spindle speed range(RPM)	30-1600
8	Spindle bore dia.(mm)	Φ100
9	Spindle power(KW)	7.5KW
10	Torque of Feed Motor(X/Z,· N/M)	10/12
11	Rapid traverse speed(X/Z, M/MIN)	5/8
12	Tool Post Stations No.	4/6/8
13	X/Z Accuracy of positioning repeatability	0.01/0.01
14	Quill diameter(mm)	Φ75
15	Quill travel(mm)	150
16	Taper of quill	MT4
17	Guideway width(mm)	400	460
18	Overall size(L*W*H)(mm)	2860/3320×1600×1830	2860/3320×1600×1830
19	Net Weight(KG)	3100/3350	3450/3850
Standard Accesseries:Ø250-3Jaw-Chuck;4 Station Electrcal Tool Post;Coolant System;Automatic lubrication System;Working Lamp.
Option:
AC Servo Motor To Drive Main Spindle
6 or 8 Positions Turret Tool-Post
Pneumatic or Hydraulic Chuck

CNC Lathe CNC210
Item	Discription	Parameter
1	Max swing over bed	210mm
2	Max.swing over carriage	100mm
3	Max.length of work pieces	250mm
4	Spindle bore	26mm
5	Spindle taper	MT4
6	X Travel	90mm
7	Z travel	300mm
8	X Moving speed	2000mm/min
9	Z Moving speed	2000mm/min
10	Spindle motor power	1.1kw
11	X Motor power	2NM
12	Z Motor power	2NM
13	Mini setting unit	0.001mm
14	Electric Turret	4 Position
15	Tailstock diameter	22m
16	Tailstock Travel	50mm
17	Tailstock taper	MT2
18	Packing size	1220X850X720MM
19	N/G weight	190/230KG
Option	Stand
	Configured 5C Collet Spindle with Pneumatic

Flat Bed CNC Lathe MCK30
Specification and Picture
Maximum turning diameter over the bed	mm	320
Maximum swing diameter over the slide	mm	140
Maximum Z travel	mm	295
Maximum X travel	mm	500
Rapid speed of X/Z	m/min	X:24, Z:24
Spindle through the hole	mm	Ø49
Power of spindle motor(Servo Motor)	kw	3.7KW
The maximum speed of the main spindle	rpm	4000
X-direction and Z-direction motor torque	nm	X/4; Z/6
Dianmeter and pitch of X and Z ballscrew		X-2510; Z-3210
Type of linear guideway of X and Z		X-25 ; Z-30
Spring clip head specification		Standard 40#chuck
Repeat positioning accuracy	mm	0.003
Positioning accuracy (machine tool accuracy)	mm	0.008
Cooling pump power	W	90
Machine weight	kg	2100
Dimention(L*W*H)	mm	1260*1050*1520

Product Description
Product Description
CK6150 big bore automatic low cost cnc lathe machine for metal cutting programming High precision of machine tool, the spindle adopts Harbin bearing HRB high precision double ball bearing support, low noise, high precision and good stability.
2. The CK6150 cnc lathe machine bed body guide is refined by ultrasonic quenching, high hardness and good rigidity.
3. The CK6150cnc lathe machine electric four-position tool holder is positioned with precise gear positioning, and the positioning accuracy is high.
4. The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
5, wide CNC system adopts several system or Cain emperor and other well-known brands at home and abroad, the hybrid stepping motor driver or optional ac servo motor drive, can also according to user's request matching other systems.
6.CK6150 lathe cnc machine Easy to operate, especially suitable for complex parts or high precision machining of high-volume parts, which is also the first choice for numerical control teaching.
7. The CK6150 cnc lathe tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
