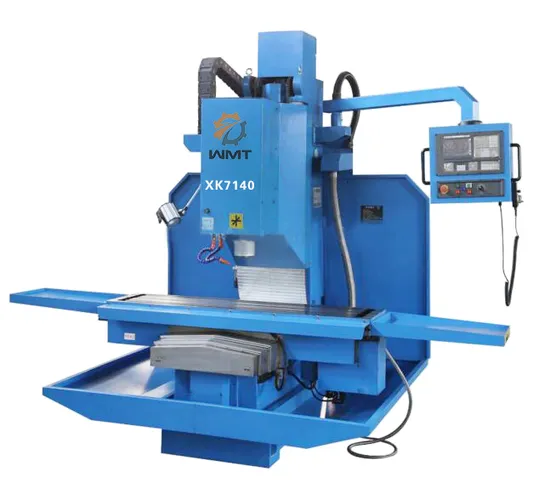

High accuracy cheap XK7140 3 axis cnc milling machine for metalworking with CE

High accuracy cheap XK7140 3 axis cnc milling machine for metalworking with CE

US$22,500.00
1 Piece
US$22,450.00
2+ Pieces

Basic Info.

Model NO.
XK7140
Structure
Vertical CNC Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size
1700*2400mm
X Axis Travel
1300mm
Y Axis Travel
400mm
Z Axis Travel
500mm
Main Power
7.5kw
Spindle Speed
8000rpm
Spindle
Bt40
Machine Type
CNC Milling Machine
Transport Package
Poly-Wood Case
Specification
CE, SGS, ISO
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
845961900
Production Capacity
20 Sets Per Month

Product Description

Main Specification:
CNC milling machine with half enclosure or full enclosure optional
GSK, Siemens, Fanuc system optional
Specification XK7140
Table size 1700x400mm
X/Y/Z axis travel 1300x400x500mm
Spindle motor 7.5kw servo motor
Distance between spindle center and column surface 520mm
Distance from spindle to table 100-600mm
Spindle taper BT40
Machine controller GSK990, SIMENS 808D
Rapid speed of X/Y/Z axis 15m/min
X/Y/Z way motor torque X/Y 8N/M Z10N/M
Position precision 0.02/300mm
Repetable Position precision 0.015/300mm
Geometry precision 0.01/1000mm
Spindle speed 0-8000rpm
T-slot 3/18/110
Max. load on table 900kgs
Machine dimension 2600x2200x2300
