Highly Efficient Chenille Production Equipment

Product Description

Highly Efficient Chenille Production Equipment
Product Description

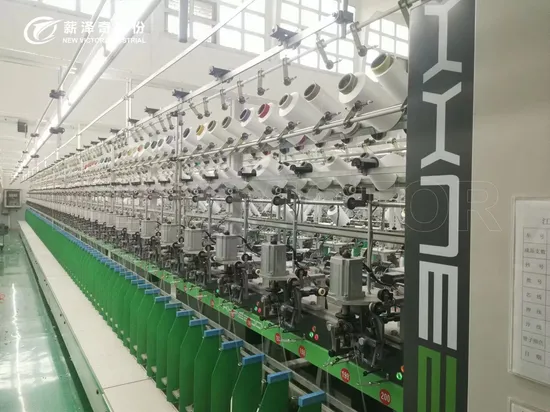

XXNE-200 Digital Chenille Machine
This machine is a new type of chenille machine,which can hugely save energy with speed.it is updated based on widely absorbing our customers' experience.
Features
1.Each rotary head is driven by independent and high speed motor which has steady rotation,low noise and small speed difference.The Max.rotary head can be 24000 rpm, which is two times faster than the old design;
2.The rollers are driven by stepper motor to make sure the rotation steadier,the noise lower and the breakage rate lower;
3.The high speed spindle is more stable and reliable.The max. speed can be 10000 rpm,which is more than two times faster than the old design;
4.The lifiting movement is driven by stepper motor with precise planetary reducer,to make sure not only the winding more stable and reliable,but also the unwinding easier;
5.The rotation of all the rotary heads,rollers and spindles is continuously variable,to make not only the craft adjustment more convenient and faster,but also the shutdown automatic and doffing easier when the bobbin is full;
6.Because of the independent motors controlling transmissions,the craft can be easily and fastly adjusted only by changing the parameters on the touch screen,without changing the belt pulley;
7.Spindle distance decreases to 160mm from 200mm,which greatly saves the space and increases the plant utilization.
Product Parameters

Quantity of spindles	200spindles/set
Spindle distance	200mm
Roller diameter	29.5mm
Ring diameter	75mm,90mm,112mm
Lifting distance	300mm(Adjustable)
Lifting speed	Adjustable,adjusted by inventer and PLC
Spindle rotate speed	3000~12000rpm
Rotary head speed	500~24000rpm
Yarn Count	1~32 Nm
Production Speed	4~18.5M/min
Twist type	Normally S type;Z type is customized
Total power	40kw
Size	21200mm × 3600mm × 2460mm(L × W × H)

Company Profile
Jiangsu New Victor Industrial Co., Ltd. is a machinery equipment manufacturing enterprise integrating product research and development, manufacturing, and domestic and international independent marketing. Stock abbreviation: Xinzeqi, stock code: 873713. Over the years, the company has adhered to a strategy of leading technology, continuously researching and developing and improving products according to market demand. The company focuses on its core business, deeply cultivates the segmented market of company products, continuously improves product and service quality, and builds the company's brand. The company has established a research and development center, formed a professional technical research and development team, and purchased advanced metal processing equipment. The company has passed ISO9001 quality system certification, integration of two management systems certification, and CE certification for product export. The company owns more than 70 independent research and development product patents and adds new patents every year.
The company has been awarded honors such as "National Special New Small Giant Enterprise", "Jiangsu Province High-tech Enterprise", "Jiangsu Province Special New Small Giant Enterprise", "Jiangsu Private Technology Enterprise", "Jiangsu Enterprise Technology Center", "China Textile Industry Association Special New Small Giant Enterprise", "Suzhou Gazelle Plan Candidate Enterprise", "Zhangjiagang Harmonious Labor Relations Enterprise", "Zhangjiagang Civilized Unit", etc. In addition to selling products in the domestic market, the company also exports to Eastern Europe, Africa, the Middle East, Southeast Asia, South America, and other countries.
Textile machinery, mainly including: crochet machines, snarl machines, fancy twisting machines, etc. The equipment is mainly used in the field of fancy yarn spinning and can produce hundreds of different three-dimensional styles of fancy yarns such as slub yarns, ribbon yarns, loop yarns, plush yarns, jet yarns, and snarl yarns, creating new fashion elements for garments, sweaters, and other textiles. The company is a leading enterprise in the domestic fancy yarn spinning machinery industry, and its products rank among the top in the domestic market share. The company's crochet machine was awarded the "Jiangsu Province Quality Credit Product" in 2006, the VFG-300 high-speed high-elastic filament machine was recognized as a high-tech product by Jiangsu Province in 2010, the XXNE200 high-speed snarl machine won the Silver Award for Industrial Design Products in Suzhou in 2019, and the XHND104 fancy yarn twisting machine won the Gold Award for Industrial Design Products in Suzhou in 2020.
After Sales Service
Pre-sale service
1. We can provide machine running videos for reference
2. We will recommend the most suitable equipment according to the needs of customers
3. We can provide the layout of the factory
4. We welcome customers to visit our factory, we can show you the running machine in China.
After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions, Our fast and professional aftersales service engineer team will go to your factory
to install the machine, give you the operating manual, And train your employee until they can operate the machine well.
3.We provide one year warranty and life-long technical support.
4.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
5 .24 hours for engineer response.
6.Your business relationship with us will be confidential to any third party.
7. We offer one year's supply of spare parts free of chargeQuality ControlWe have the single quality department, that make sure the material of the raw materials is good, and ensure the machine running smoothly.
FAQ
Are you a trading company or a manufactory?
We are a manufactory with 30 years experience, we supply the factory price with good quality, welcome to visit !
Do you have reference project?
We have reference project in most countries, If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory. And you are always welcome to come to visit our company, and see the machine running in our factory, we can pick you up from the station near our city. Contact our foreign sale team you can get video of our reference running machine.
Do you have agent and after-service stations?
So far we have agent in the middle east, Ethiopia, Singapore, South America. welcome to join us!
When can I get my machine after I paid?
Normally production time is around 30days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port.
How long time for installation?
According your machines order, we will send one or two engineers to your plant, it will take about 7 days.
How about the spare parts?
We will send one year enough easy broken spare parts together with the machines, shipping together.
Do you have any certificate?
We have CE, ISO, SGS certification
Do you provide customized service?
We can design the machines according your requirements.
What's your guarantee or the warranty of the quality if we buy your machines?
We offer you high quality machines with 1 year guarantee and supply life-long technical support.
