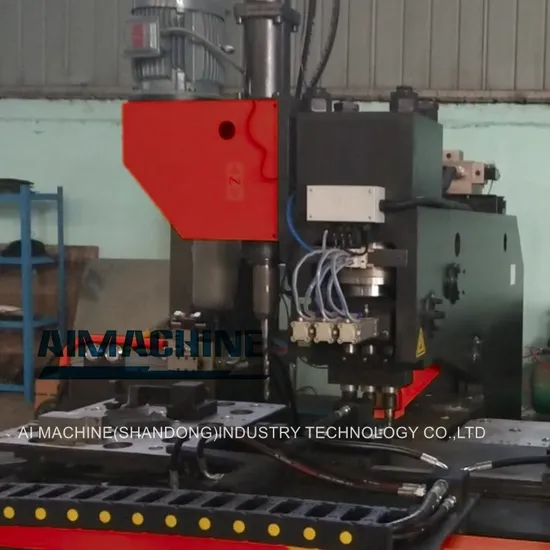

CNC Automatic Hydraulic Press Plate Steel Punching Drilling Machine

Product Description

Product Description
Used for punch and mark of joint plate in the field of iron tower. It is also used to punch and mark of metal plate of other trade.
1.The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets three die-stations (among them, one is the marking die-station), automatic switching die-stations. Clamping system can adapt to different work piece, with zero baffles as datum mark, and work piece supported by rolling-ball working table. Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of work piece to computer for repeated calling program in the future.
2. Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
3. Important functional components adopt modular assembly, easy to repair it.
4. Carry out punching, marking and drilling on the one plate.
5. Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.
6. Easy programming, may input the diameter of holes, position and the quantity of work piece to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.
7. With function of self-diagnosis for failures.
8. Lighten the working strength of workers.
Product Parameters

Model	SPP1580	SPP2560	SPP3350
Max size of work piece L×W(mm)	1500×800	2500*600	3300*500
Max. diameter of punching (mm)	Φ26	Φ30
Plate thickness of punching (mm)	5~25	5-30
Punching force (KN)	1000	1400
Marking force (KN)	800	1000	1200
Min. distance between hole and plate edge (mm)	25/30
Dimensions of characters (mm)	14×10×19 By customers' request
Quantity of character	10~18
Die-stations	3
Precision	Accordance with GB2694
Programming mode	Input by keyboard, RS232 interface, floppy disk and USB interface
Overall dimensions L×W×H (mm)	3200×3000×1900	3500×3000×2600
Weight of machine (kg)	Approx. 5420	Approx. 6200

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery.
We have been engaged in design and development for many years and have a technical team with rich manufacturing experience, and have advanced production equipment as the backing.
We have a complete after-sales service network, which can provide you with full support from pre-sales to after-sales, so that you can get the most satisfactory equipment, to ensure that you solve all the problems you encounter in the most convenient and timely manner during use, and get our thoughtful services. Create your future with our technology and services.
Other products
FAQ
1. The delivery time?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. After-sale service?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Installation and Training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Model choose?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
