China Supplier Continuous Tumble Drying Machine for Woven

Product Description

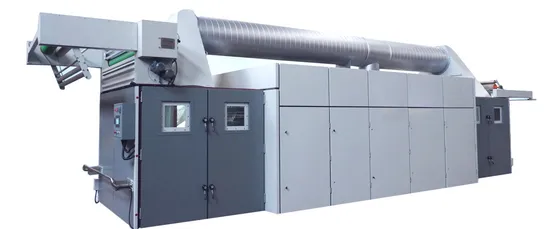

CONTINUOUS TUMBLE DRYER
Features:
1. The upper and lower blower speed, exhaust blower speed, entry and exit speed, temperature and fabric duration time inside the chamber, all
are adjustable according to different textile material and process requirement
2. Loading capacity in chamber and hitting times can be setted by means of fabric weight and timing
3. All parameter including air flow, exhaust flow, machine speed, capacity can be set and monitored on color touch screen controller
4. Automatic cleaning device for machine continuous running without machine stoppage
5. Fabric movement is driven by air flow, low tension treatment
6. Perfect hand feel with continous beating the ss fence.
Specification:

MODEL	AIR-X
Machine width	2000-3600mm
Working width	1800-3400mm
Speed	5-50m/min
Heating system	Natural Gas, Thermal Oil, Steam
Temperature	Steam: 150ºC, Thermal Oil/ Gas: 170ºC
Application	Knitted, woven, Warp knitted, Upholestery

Machine Consist of:
- Entry system with fabric expander rollers
- J- Box (entry drying chamber) with beating fence
- Venturi tube
- J-Box (Exit drying chamber) with beating fence
- Fabric exit plaiter
- Electrical cabinet
- Upper blower motor, lower blower motor
- Gas burner/ Heating exchanger
- Auto filtering device
Tumbling Process:
