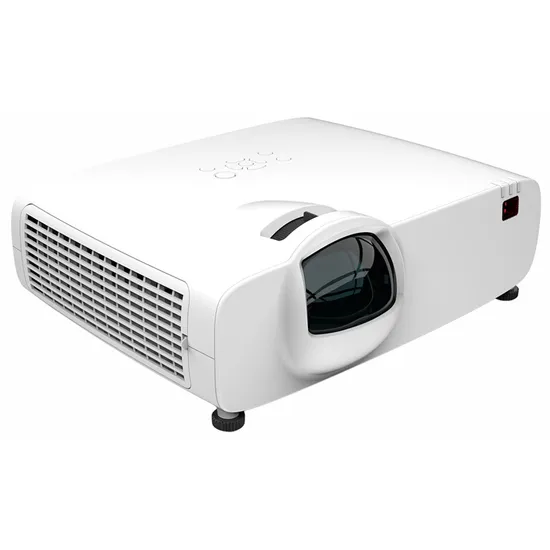

High Brightness 4800 Lumen Short Throw Laser Projector for Immersive
| US$1,540.00 | 20 Pieces (MOQ) |
Basic Info.
Model NO.
MX-ST4800U
Brightness
4800 Lumens
Working Principle
LCD
Model
Mx-St4800u
Panel
Sony 0.64′′
Resolution
Wuxga (1920 X 1200)
Light Source Life Time
20000hrs
Projection Lens
Ricoh Lens
Projection Size
30-300 Inch
Contrast
5000000:1
Products Size
390*319*143mm
Transport Package
Carton
Specification
4800 lumen
Trademark
Windon
Origin
China
HS Code
8528620000
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
40.00cm * 32.00cm * 15.00cm
Package Gross Weight
5.500kg
Product Description
Product DescriptionMX-ST4800U short throw laser projector is deal for home cinema it is designed to provide a large and immersive home theater experience. This projectoris typically capable of projecting a large, high-quality image from a short distance, making them an ideal choice for smaller rooms or apartments.
Use laser technology to produce bright and vibrant colors, with 4800 lumen brightness,5000,000:1 high contrast ratio and 0.44:1 throw ratio. It is designed to produce sharp and clear images, even in rooms with ambient light.
It also come with built-in speakers or support external sound systems to create a complete home theater experience.
Overall,it is an excellent choice for you if you want a build a large and immersive home theater experience in a smaller space. They provide high-quality visuals, making them an ideal alternative to traditional TVs.
Product Features
Product Parameters
| Model No. | MX-ST4800U | |
| Brightness (Anti Lumen) | 4800 | |
| Resolution | WUXGA | |
| Key parts | ||
| Panel | SONY 0.64" | |
| Lens Maker | RICOH Lens | |
| Throw Ratio | 0.44:1 | |
| Zoom Ratio | N/A | |
| Lens Shift | N/A | |
| Light source | NICHIA LASER | |
| Light source | NICHIA LASER | |
| Overall Spec | ||
| Light source Life time | FullNirmal/Normal mode | 20000hrs |
| ECO1 mode | 30000hrs(TBD) | |
| ECO2 mode | TBD | |
| Projection Lens | Lens Vendor | RICOH |
| F | 1.6 | |
| f | 6.39mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 0.48:1 | |
| Zoom Ratio | N/A | |
| Screen size | 50-120 inch | |
| Lens Shift | N/A | |
| CR | Dynamic Contrast Ratio (FOFO) | 5000,000:1 |
| Native Contrast Ratio (FOFO) | 400:1(Min) | |
| Noise | Noise(dB) | TGT: 37dB(Normal) 27dB(ECO1) |
| Uniformity | Uniformity(Actual Min) -ISO21118 | 80% |
| AR | Aspect Ratio | Native:16:10 Compatible: 4:3/16:9 |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in (mini jack,3.5mm) | *1 | |
| Audio in (RCA×2) <Audio L/R> | *1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| YCbCr/Component | N/A | |
| S-Video | N/A | |
| Output | VGA | *1 |
| Audio out (mini-jack,3.5mm) | *1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 | |
| LAN | *1 | |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 7300h(TBD) | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | TBD | |
| Power Consumption (ECO1) (Max) | TBD | |
| Power Consumption (ECO2) (Max) | TBD | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 5 to 40°C |
| Operating Thumidity. | 20-80% | |
| Storage Temp. | -10 to 50°C | |
| Storage Thumidity. | 10-85% | |
| High altitude | 1700-3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±15° H:±15° 4 corner |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-- AMX Discovery | Yes | |
| LAN Control-- PJ Link | Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p | |
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic, Standard, Cinema, Colorboard, Blackboard(Green) | |
| Cooling time | 5s | |
| Closed caption | Yes | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~19 | |
| Others | 360° projection | Yes |
| Wireless display (Optional function) | SmartPhone: Android:Install APK for Android iphone: Airplay function PC: Support WiFi Display@Windows&MAC system through dongle | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 390*319*143; With lens protrusion | |
| Net. Weight (KG) | 5.5Kg | |
| Packaging Box Dimensions (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~7Kg | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power cord Remote control&RC Battery | |
| Regulation List | ||
| China | CCC | √ |
| WW | CB | √ |
| EMC Class | ||
| EMC Class | Class B@3dBm | |
