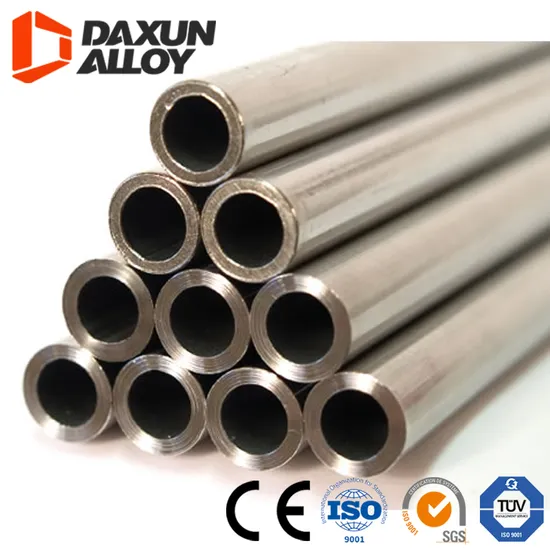

Grade7 Titanium Tube Seamless ASTM B338 High Strength Excellent Corrosion Resistance Neutralizer Large Quantity of Spot Gr7 Titanium Tube

Product Description

Product Parameters

Grade 7 Titanium pipe & Tubes Specification	ASTM B338 / ASTM B861 / ASTM B862 / ASME SB338 / ASME SB861 / ASME SB862
Grade 7 Titanium pipe & Tubes Grades	Commercially pure titanium Grade 7- TA2- USN 50400
Grade 7 Titanium pipe & Tubes Type	ot Rolled / Cold Drawn / Welded / ERW
Grade 7 Titanium pipe & Tubes Outer Diameter Size	Titanium seamless pipe - φ1.0mm to φ508.3mm
	Titanium welded pipe - φ1.0mm to φ719mm
Grade 7 Titanium pipe & Tubes Wall Thickness	1.0mm-50mm (customizable wall thickness)
Grade 7 Titanium pipe & Tubes Length	5 to 7 Meters, 09 to 13 Meters, Single Random Length, Double Random Length And Customize Size.
Titanium pipe Form TA2	' Hollow, U' bent, LSAW, Hydraulic, Straight Tube, Boiler, Round, Tube Coil, Square, Rectangular Etc
Marking TA2 3.7035	All Titanium Tubes Tubing are marked as follows: Grade, Standard, Thickness, OD, Heat No., Length (Or according to the customer's request.)
Uses of Titanium Alloy Tubes	Gas pipes, oil pipes, heat exchanger tubes, boiler tubes, fluid pipes, titanium exhaust pipes.
Grade 7 Titanium pipe & Tubes Pipe Ends	Plain Ends / Beveled Ends
Grade 7 Titanium pipe & Tubes Delivery Conditions	As Rolled, Cold Drawn, Hot Finish, Stress Relieved, Annealed, Hardened, Tempered
Grade 7 Titanium pipe & Tubes Coating	Electropolish, Mechanical Polish, Satin Finish, Passivated
Grade 7 Titanium pipe & Tubes Other Testing	ardness Test, Hydrostatic Test, Eddy Current test, Eddy Current, Tensile Test, Flattening, Flare Test, Annealed, Hydrostatic Test, Tempered, Stress Relieved etc.
Grade 7 Titanium pipe & Tubes Dimension	All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME
Grade 7 Titanium pipe & Tubes Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment
Grade 7 Titanium pipe & Tubes Packaging	Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Grade 7 Titanium pipe & Tubes Shipment & Transportation	By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes
Grade 7 Titanium pipe & Tubes Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC

Detailed Photos
Titanium Grade 7 stands out as a unique alloy, blending the mechanical and physical traits of Titanium Grade 2 with the added advantage of interstitial palladium. This enhancement not only maintains but elevates its exceptional weldability and fabricability. Renowned for its superior corrosion resistance among titanium alloys, Grade 7 is the material of choice for chemical production processes and various production equipment applications.Titanium Grade 7 (0.8NI-0.3MO) is a commercially pure, wrought Titanium alloy esteemed for its impressive high-temperature strength, outstanding weldability, and remarkable resistance to crevice corrosion. Unlike Titanium Grades 2 and 3, the inclusion of molybdenum and nickel in Grade 7 augments its corrosion resistance. This versatile material can be molded through diverse methods such as press brake forming, hydropress forming, stretch forming, or drop hammer techniques. Its adaptability makes Grade 7 indispensable across numerous applications. Quality, Delivery, InspectionAt Daxun, we uphold the highest standards of quality assurance by conducting a comprehensive suite of tests, including flattening, flaring, ultrasonic flaw detection, pitting resistance, mechanical, hardness, material positive identification, and expansion tests. These rigorous evaluations ensure the suitability of our Grade 1 Titanium Welded and Seamless Pipes for any application. Throughout production, we meticulously measure the diameter, thickness, and surface quality of our products. Adhering to our commitment to prompt delivery, standard orders are dispatched within 5-7 days, while custom-sized products are delivered within 15-20 days.
Our delivery schedule is strictly aligned with the contractual agreements.We welcome third-party agency inspections at our factory.We offer free samples for customer testing purposes.We support both on-site and video inspections of our factory. Technical SupportShould you require any further technical assistance, our resident metallurgist and expert team are always ready to assist. Daxun takes pride in our certified testing laboratory, a pioneering facility in the multi-metal and plastic inventory industry. This highlights our relentless commitment to quality and underscores our ethos as a comprehensive service provider.
Packaging & Shipping
Company Profile
Titanium Seamless Tubes
Daxun produces:
Hot-finished Titanium Tubes
Our high-quality titanium tubes are meticulously manufactured using advanced hot-rolling or hot-extrusion processes. Each tube is straightened, machined to precise inside and outside diameters, and surface polished to perfection. Available in both heat-treated and non-heat-treated forms, every tube undergoes 100% ultrasonic flaw detection to ensure ultimate reliability and performance.
Titanium Tube Materials Available:
Hot-rolled Titanium Tubes: Ranging from an outer diameter of 19mm to 325mm, wall thickness of 9mm to 30mm, and lengths up to 5000mm (customizable per agreement); Hot-extruded Titanium Tubes: Outer diameter from 50mm to 160mm, wall thickness of 7mm to 35mm, and lengths up to 3000mm (customizable per agreement).
Cold-finished Titanium Tubes
Our cold-finished titanium tubes are available in heat-treated, surface-etched forms, and undergo stringent hydrostatic or ultrasonic testing as per manufacturing specifications. Product range: Outer diameter from 6mm to 89mm, wall thickness of 0.5mm to 11mm, and lengths up to 6000mm (customizable per agreement).
Titanium Welded Pipes
DaXun is a leader in the production and supply of titanium pipes with diameters ranging from 100 mm. Wall thickness spans from 0.4 to 1.65 mm and lengths extend up to 25000 mm. Our titanium welded pipes, made from flat-rolled raw material via advanced tungsten inert gas (argon) welding and subsequent heat treatment, meet stringent ASTM B 338 and ASME SB 338 standards. These pipes undergo comprehensive mechanical tests, geometrical measurements, ultrasonic and eddy current testing, and either pneumatic or hydrostatic tests. Custom packaging options are available to meet customer specifications.
Ti Gr 7 / 3.7235Thanks to its high palladium content, Titanium Grade 7 boasts exceptional corrosion resistance. It is particularly impervious to saltwater environments and chloride media, and also demonstrates remarkable resilience against erosion and impacts.
MaterialApplicationCompositionCharacteristicsFillerDelivery programOutlMaterial Data Sheet

Material Design action	3.7235
Material	Titanium Gr 7
UNS	R52400

Main fields of application of Titanium Gr 7Titanium Grade 7 is predominantly utilized in chemical plants due to its robust corrosion resistance.
Chemical composition of Titanium Gr 7

Ti	Pd	N	Fe	O	H	C
ca %	%	%	%	%	%	%
99.3	0.12-0.2	0.05	0.25	0.18	0.013	0.06

Characteristics of Titanium Gr 7

Temperature Range	Material for wet corrosion
Melting Range	1670°C
Density	4.51 g/cm³
ISO-V notch impact toughness at -59°C	Across < 62 J/cm²
	lengthwise < 83 J/cm²

Filler metal (for welding with titanium Gr 7)To weld Titanium Grade 7, it is recommended to use bare wire from the same titanium group.
Delivery programSheets and Plates: 5 - 14 mm
With short delivery time:
25fcf93c
