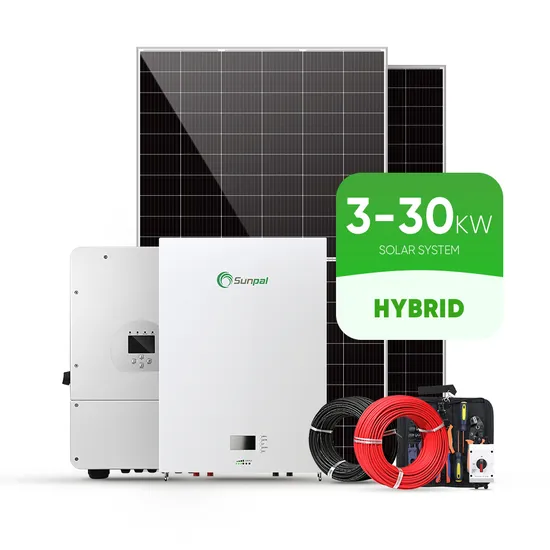

Sunpal Solar Energy System 5000W 5kVA 8kw 10kw Hybrid Solar Power System for Home

Product Description

Product Description
Warranty
How it worksWhat's Included

Model	SP-3KW-HY	SP-5KW-HY	SP-10KW-HY
Half Cut Mono 550W Solar Panel	6 Pieces	10 Pieces	2 Pieces
DC Disconnect Switch	1 Piece	2 Piece	3 Pieces
Hybrid Inverter	SUN-3K-SG04LP1-EU	SUN-5K-SG03LP1-EU	SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery	5Kwh	5Kwh	10Kwh
DC Cable 4mm2	100 meter	200 meter	400 meter
AC Disconnect Switch	1 Piece	1 Piece	1 Piece
MC4 Connector	10 Pairs	10 Pairs	10 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

Model	SP-15KW-HY	SP-20KW-HY	SP-30KW-HY
Half Cut Mono 550W Solar Panel	30 Pieces	420 Pieces	63 Pieces
DC Disconnect Switch	4 Piece	6 Piece	9 Pieces
Hybrid Inverter	SUN-5K-SG03LP1-EU 3 Pieces	SUN-10K-SG03LP1-EU 2 Pieces	SUN-10K-SG04LP3-EU 3 Pieces
Wall Mounted LiFePo4 Battery	15Kwh	20Kwh	30Kwh
DC Cable 4mm2	600 meter	800 meter	1000 meter
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	1 Set

System ComponentsHalf Cut Mono 550W Solar PanelPeak Power Watts: 550W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm Weight:26.9 kgHybrid Solar Inverter48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging. Max.
charging/discharging current of 240A
Max.10pcs parallel
DC couple and AC couple to retrofit existing solar systemMonitoring SystemOpen station supports one-click installation and registration Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliabilityWall Mounted LiFePo4 Battery15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.PV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs OptionalPV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs OptionalDC & AC Disconnect SwitchIP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20APV ToolsWire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Company Profile
Company Overview
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels.Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation for quality. With over 10 years of development, Sunpal now has a factory area covering 150,000 square meters, with 600 experienced employees.Product packaging
