CNC Vertical Machining Center, CNC Millling Machining Center, CNC Machining Center Vmc850 Vmc855

Product Description

CNC Vertical Machining Center, CNC Millling Machining Center, CNC Machining Center Vmc850 VMC855

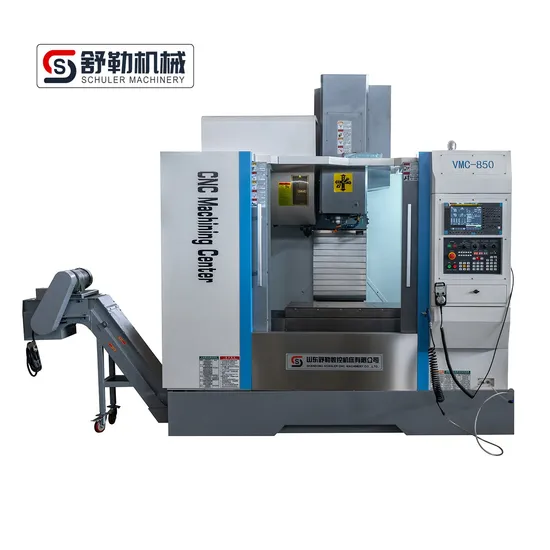

Product Picture:
Features: 1. Resin sand castings.
2. Taiwan's three-axis ball screw. (Taiwan)
3. Precision lock nut. (Shanghai Yu Kai) (standard)
4. Taiwan-made spindle, Japan NSK bearing, spindle pulley and belt.
(Taiwan Health) 8000 rpm
5. Taiwan-made pressurized cylinder. (Taiwan Hao Orange) (standard)
6. Imported bearings (P4 grade). (standard)
7. Domestic high quality coupling. (Tianjin Longchuang) (standard)
8. Tool magazine 24 bucket knives (Tokyo, Taiwan)
9. X, Y, Z (bottom) stainless steel rail protection. (standard)
10. Imported electronic lubrication pump. (standard)
11. Domestic cooling system water pump, water tank. (standard)
12. Pneumatic components, . (standard)
13. Headstock weight. (standard)
14. System.Siemens 828D, FANUC, Mitsubishi M80A.
15. Machine alarm light (standard)
The machine is equipped with an anti-impact device, which can absorb the vibration caused by the impact caused by the worker's operation error, so as to minimize the damage of the impact and ensure the original accuracy;
The oil and water separation design can effectively separate the lubricating oil from the cutting fluid, and prevent the cutting fluid from deterioration, affecting the processing quality. CNC Milling Machine Technical Parameters:

Item	Unit	VMC850
X axis travel	mm	800
Y axis travel	mm	500
Z axis travel	mm	500
Spindle nose to table	mm	120-620
Spindle nose to column	mm	550
Max. X rapid feed	m/min	36
Max. Y rapid feed	m/min	36
Max. Z rapid feed	m/min	36
Cuttting feed	mm/min	1-10000
Torque (X/Y/Z)	N.m	10/10/15
Table size	mm	1000x500
Table max load	kg	500
T slot	mm	5-18-90
Spindle type		Belt
Spindle speed	rpm	50-8000
Spindle bore	mm	120
Spindle taper		BT40
Pull stud		MAS403-40BT-1
Spindle motor synchronizing wheel		Taiwan
Spindle belt		Taiwan
Main motor	kw	7.5/11
Positioning accuracy (JIS)	mm	±0.015/300
Repeatibility (JIS)	mm	±0.0075
Machine size	mm	2750x2200x2550
Weight	kg	6000

Brand Image: As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers. CNC Milling Machine Details:
CNC Milling Machine In the Workshop:
CNC Milling Machine Package Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location. Our Company:
