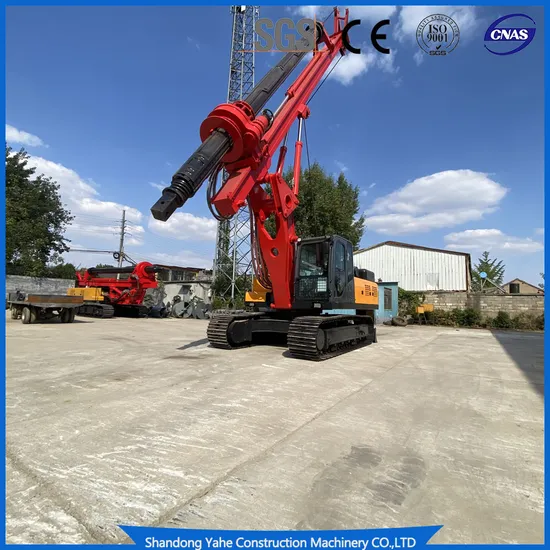

Small Crawler Hydraulic Rotary Drill/Drilling Rig for Foundation Engineering/Water Well/Mining Exploration Excavating/Geotachnial Construction Equipment Dr-120

Product Description

Product DescriptionThe maximum drilling depth of this rig is 30M, and the drilling diameter is 500-1600MM. Equipped with automatic mast vertical adjustment and automatic body reset functions. Our products have obtained CE / SGS / ISO and other product quality certifications. More information welcome you advice.
Fetures
1.Excellent performance, fast lifting, large lifting weight, drilling rig can be 360 degree rotary construction.
2.Full hydraulic system control can ensure that all indexes of pile foundation verticality, hole position, hole depth and sedimentation thickness meet the requirements of construction specifications.
3.Driving power is strong, the power head acts directly on the drill bit and keeps the torque unabated during piling.
4.The hole wall drilled by rotary drilling rig has good stability, complete hole cleaning after hole completion and fast construction progress.
5.Small investment,quick gains:
The utility model also has high cost performance, wide application scope and high social and economic benefits;
6.The characteristic of stabilization, credibility, speediness and high capability which makes the Rotary Drilling Rig is favored.

Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-30m
Diamension (mm)	11500X2800X3400mm
Total weight (t)	26T
Power head max output torque (KN.m)	120KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	151KW ,cummins ,water cooling ,turbo charger

Detailed Photos
Certifications
EXHIBITION
Company Profile
Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.
FAQ

1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
