Semi Automatic Rotary Silk Screen Printing Machine for Cups Printing

Product Description

Auto UV Cylinder Silk Screen Printing Machine For Plastic Paper Cups
Product Description Application area:

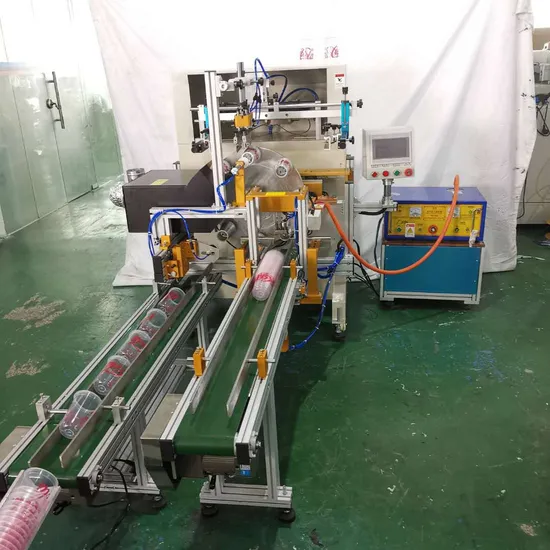

This machine is full Automatic rotary screen printing machine with auto loading and unloading with uv dryer system
But machine model YK-400C-1 just can print single color on cups ,as cups there is no anchor point at the bottom for color registration ,
If you need print 2 color or more ,pls use our another model YK-400C-2 ,this machine is adopted full Servo system to control ,So that print multiple color very precise,It is adopted advanced high sensitive sensor for making registration by automatically , automatic positioning ,It is very easy to print multiple color with high quality ,such ,2,3,.4,5,6 color etc.
pls check below link of multicolor printing.
https://ecoprinting.en.made-in-china.com/product/sOmaZowrkHUv/China-2-Color-Full-Automatic-Screen-Printing-Machine-for-Plastic-Cup.html
Main performance
1.This machine is a high speed UV rotary screen printer with auto loading and unloading for printing logos on disposable plastic cup ,PP cup ,PET cup , paper cup ,U type cups ETC....
2.It with 2KW UV curing system, drying the UV inks immediately.
3.With automatic loading and unloading, greatly improve productivity and save labor cost.
4.It can print 360 degrees full circle on cups, Max printing diameter is 120mm.
5.Adopt PLC operation to ensure printing results.
6.Automaticoil scrabbing, oil return and lifting table.
7.It's equipped with 8 working stations ,printing speed reach 3000pcs/hours .

1.	Product appearance:Round
2	Max printing diameter: Φ120MM
3	Max printing area: 320x220MM
4	Printing Speed: 3000 PCS/H
5	Printing precision:±0.05mm
6	Turntable diameter:Ø500 mm
7	Air pressure: 6 bar
8	Power supply:220V/50Hz, 110V/60Hz
9	Max product gradient: <14o
10	UV Machine power:2KW
11	Work cycle:4S
12	Gross weight: 480 KG Package size:L*W*H 2400*1600*1800 mm=6.912cbm
Warranty	For all our machines, we provide two-year warranty.lifelong maintenance Life-long on-line technical support and provide free parts when problems occur within one year not including shipping cost.

Detailed Photos
Company Profile Shenzhen Eco Printing Co.,LTD is located in Dong guan city,"World trade Factory"with an experienced and professional team for more than 20 years, we have exported our machines to more than 150 countries around the world, including the Europe, Africa, USA, Slovakia, Romania, Lithuania, Lebanon, Bangladesh, Egypt, Spain, Russia and Saudi Arabia.etc.
Our main production line:Auto UV Screen printer, Pad printer, ,UV curing machine,flame treatment machine ,IR dryer machine, Peripheral Equipment &Accessory & consumable field . We gathered highly experienced and skilled staff.With our proven track record of customer service,we have gained a quality yet valuable reputation in the digital printing and ink industry.Thanks to our customers ,we are on a high way of becoming a global.Advanced industrial digital printing and ink supplier."The quality to win client, the service to retain client, the sincerity to impress client."is responsibility and target of Shenzhen Eco. There are customers from 98 countries to visit our factory and we had a good cooperation.
Certifications We passed ISO-9001-2000 certification in 2000, and we are a member of SGIA and all of our industrial printers had passed CE standard.
