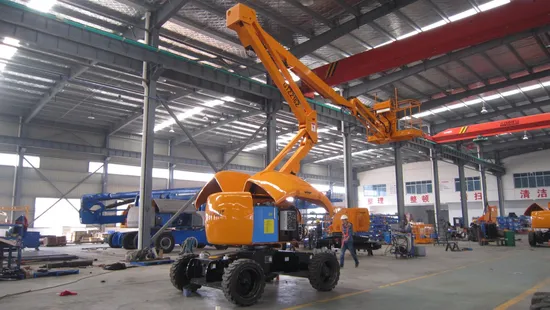

12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform

12-28m Electric Li-ion Articulating Boom Lifts Aerial Working Platform

US$12,500.00-130,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RE22E
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Certification
CE, ISO 9001
Working Height
22m
Platform Height
20m
Safe Load
230kgs
Size of Platform
1.83*0.76*1.1m
Outreach
12m
Occupancy Max.
2
Transport Package
Nude
Specification
CE
Trademark
KUDAT
Origin
China
HS Code
8428909090
Production Capacity
100units/Month

Product Description

-Made of high strength steel, and the European production of hydraulic, control, parts;
-Pipeline all the built-in, to avoid the sun and rain or foreign objects tangled;
-Shape lightweight, low pressure rubber tracks on the ground, can travel, work on any ground;
-Outrigger separately controlled to bypass obstacles in a limited space work;
-Reliable torque control to ensure that the vehicle will not roll;
-Wired remote control walks, working bucket with 220V outlet;
-Small size, compact and flexible;
Wuhan Kudat Industry & Trade Co.,Ltd
16-34M Electric Telescopic Boom Lifts
Technical Parameters
Model RL16E RL20E RL22E RL24E RL29E RL34E
Size
Max working height m 16 20 21.6 23.5 28.6 34
Max platform height m 14 18 19.6 21.5 26.6 32
Max horizational outreach m 12.6 15 13.7 15.8 18.5 20.6
Platform dimensions(LxW) m 1.83x0.76 2.44x0.91
Length(stowed) m 8.55 9.07 10.06 9.1 10.76 12.6
Width(stowed) m 2.28 2.38 2.5 2.58
Height(stowed) m 2.58 2.59 2.83 3.03
Wheelbase m 2.5 3
Ground clearance(center) m 0.32 0.35 0.46 0.37
Performance
Max lift capacity kg 300 480
Max platform occupancy 2
Platform rotation ±90°
Vertical jib rotation 135°
Turntable rotation 360° 360°Continuous
Drive speed(stowed) 4.4 5
Drive speed(raised) 1.1
Gradeability 40% 45%
Max working slope 5°
Turning radius(inside) 1.87 1.82 2.1 1.6 2.6
Turning radius(outside) 4.8 4.85 5.4 4.73 6.15
Drive & steer mode 4x2x2 4x4x2
Tire type 33x12-20 36x14-20 385/65-22.5
Power
Battery V/Ah 48/390 48/300(Li-ion)
48/390(Pb-A)		 80/52(Li-ion)
80/560(Pb-A)
Pump motor power kW 7.5 12 23
Drive motor power kW 2x4 4x4
Charger V/A 48/60 80/60
Hydraulic tank capacity L 150 110 160
Control Voltage V 12
Weight kg 7500 9500 9000 10000 12000 18500
Standard Compliance EN280:2013+A1:2015 GB25849-2010
