Basic Info.
Model NO.
MJ6132YII MZ1 MZ73031 MF50G
Controlling Mode
Artificial
Automatic Grade
Automatic
After-sales Service
Online support
Saw Blade Titling Angle
90-45
Scoring Saw Spindle Diameter
20mm
Main Saw Spindle Diameter
30mm
Scoring Saw Blade Speed
8000rpm
Main Saw Blade Speed
4000/6000rpm
Scoring Blade Diameter
120mm
Main Saw Blade Diameter
305mm
Max.Cutting Thickness
80mm
Overall Dimensions
3200X3150X900mm
Sliding Table Size
3200X430mm
Max.Cutting Length
3100mm
Cutting Width Between Saw Blade and Rip
1200mm
Transport Package
Plywood Case
Specification
3250*425*290mm
Production Capacity
50sets/Month
Packaging & Delivery
Package Size
330.00cm * 320.00cm * 100.00cm
Package Gross Weight
850.000kg
Product Description
ZICAR MJ6132YII woodworking machine 1600/2800/3200mm 45 degree wood mdf plywood cutting automatic sliding table panel saw
Characteristics
This production line is suitable for some new furniture factories.
Space requirement is about 5(Width)x 7(Length)square meters.
Each machine is simple and easy to operate.
This production line can reach up to 60-80 pieces standard size board(1220*1440 mm ) within 8 hours.
Only 3-4 workers are needed, saving labor costs.
Description
This processing line is very suitable for some small manufacturers who are just starting to do business. We believe this simple production line is your best choice if you are faced with the problems of limited space, limited budget and insufficient experience. For this production line, you can process ordinary furniture, such as desks, cabinets, wardrobes, and office furniture. Each model from this line is very easy to operate and you just need 3 workers without rich experience, also with lowest cost of maintenance.

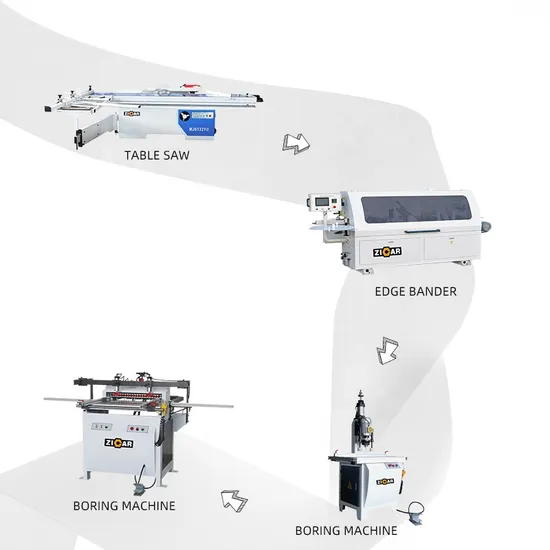

SLIDING TABLE SAW
EDGE BANDING MACHINE
DRILLING MACHINE
Application Field
Company Profile
FAQ
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have closely relationshipwith each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the roundtrip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer. Wearing parts are notincluded.
(3)24 hour technical support by email or calling.
(4)User-friendly English manual for machine using and maintaining.
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provide engineer oversea service.
