Efficient Gantry Vertical CNC Double Column Metal-Cutting Machining Center

Product Description

1. Experience the power and precision of the China CNC Large Horizontal Machining Center GMC321 GF-2214. This state-of-the-art machine is engineered to deliver exceptional performance, boosting productivity and ensuring flawless results in every operation.
Product Description

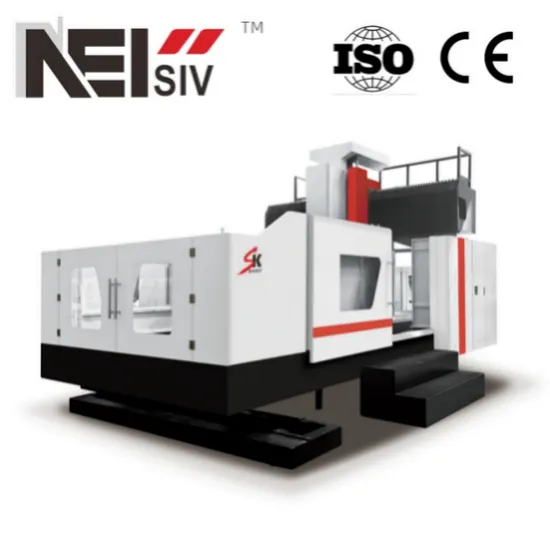

1.1 DESCRIPTION: The Efficient Gantry Vertical CNC Double Column Metal-Cutting Machining Center by NANJING NEWSIV EQUIPMENT CO., LTD. is designed to redefine precision and performance in metalworking. Engineered with state-of-the-art technology, this advanced machining center ensures unparalleled accuracy, speed, and reliability, making it the perfect solution for complex and heavy-duty metal-cutting tasks. Experience the ultimate in efficiency and innovation with this robust and versatile machine, crafted to meet the highest standards of modern manufacturing.
FEATURE
1.2 FEATURE
This state-of-the-art machining center boasts exceptional performance, maintaining stable precision and unparalleled high rigidity.
Crafted from premium-grade resin sand casting, the machine showcases a robust, box-shaped structural design.
Subjected to meticulous aging treatment to eliminate internal stress, ensuring long-lasting durability and reliability.
The entire machine epitomizes robust rigidity and strength, highlighting its cutting resistance and high-precision capabilities.
Automatic Tool Change System
Equipped with a fast and secure arm-type tool change system, ensuring swift, seamless, and dependable tool exchanges.
Controlled by sophisticated PLC software, it achieves a tool change time of merely 8 seconds, significantly reducing non-cutting intervals.
Rota-Table Control Box
Ergonomically designed rota-table seat type operation box, paired with a portable handwheel operation box for ultimate convenience.
Operators can utilize it effortlessly from any position, with a foot switch for easy tool clamping and release on the spindle head.
Servo Motor
The high-performance servo motor directly drives the screw rod via coupling, minimizing vibration and enhancing precision across three axes.
Featuring a servo motor with a built-in absolute encoder for indirect displacement measurement, forming a semi-closed loop system to ensure unparalleled positioning accuracy. The three-axis positioning is precisely set by the numerical control system.
1.2 PARAMETERS

Specification		GF-2214/2514/3014/4014	GF-2217/2717/3017/4217	GF-2718/3218/4218	GF-2722/3022/42222/5222/6222	GF3025/4025/5025/6025
X-axis travel	mm	2200/2500/3000/4200	2200/2700/3000/4200	2700/3200/4200	2700/3000/4200/5200/6200	3200/4200/5200/6400
Y-axis travel	mm	1450	1700	2000	2400	2800
Z-axis travel	mm	850	850	1000	1000	1100
Gantry width	mm	1400	1700	1800	2200	2500
X/Y/Z guide track	-	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track
Worktable size	mm	2200/2500/3000/4000x1200	2200/2700/3000/4200X1500	2600/3000/4000X1800	2500/3000/4200/5000/6000X2000	3200/4200/5000/6200X2300
Table form (,No.*screw hole)	mm	7-22*150	7-22*220	9-22*180	9-22*203	9-22*226
Spindle type	BT	BT50	BT50	BT50	BT50	BT50
Spindle speed	rpm	6000	6000	6000	6000	6000
Spindle dia	Ø	190	190	190	190	190
Spindle motor	kw	15/18.5	15/18.5	15/18.5	22/26	22/26
X/Y/Z quickly move speed	m/min	15/15/12	15/15/12	15/15/12	12/12/12	12/12/12
Max cutting feed speed	-	1-10000	1-10000	1-10000	1-10000	1-10000
Tool magazine capacity	pcs	24	24	24	24	24
Max tool weight	Kg	18	18	18	18	18
X/Y/Z axis position accuracy	mm	0.008	0.008	0.008	0.008	0.008
X/Y/Z axis repeat position accuracy	mm	0.005	0.005	0.005	0.005	0.005
Max.loading of worktable	g	4000/5000/6000/8000	5000/5000/6000/8000	6000/8000/10000	7000/9000/11000/13000/16000	8000/12000/16000/19000
Distance from the spindle front end to worktable center	mm	270-1120	165-1025	150-1150	150-1150	200-1300
Machine size (L×W×H)	m	6.4/7.4/8.4/10x4x3.7	6.6/7.6/8.6/10.6X4.5X3.5	7.5/8.5/10.5X4.7X3.8	7.5/8.5/10.5/12.5/14.5X5X3.8	8.5/10.5/12.5/14.5X5.7X4.5
Machine weight	t	16/19/22/25	18/21/24/27	23/26/31	24/27/30/35/40	32/37/42/47

Specification		GF3228/4228/5028/6228	GF-3232/4232/5232/6232	GF4037/5037/6037/8037	GF4042/5042/6042/8042
X-axis travel	mm	3200/4200/5000/6200	3200/4200/5000/6000	4200/5200/6200/8200	4200/5200/6200/8200
Y-axis travel	mm	3200	3300	4000	4500
Z-axis travel	mm	1100	1250	1250	1250
Gantry width	mm	2800	3200	3700	4200
X/Y/Z guide track	-	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track	XY:Linear guide track Z:Slide guide track
Worktable size	mm	3200/4200/5000/6200X2300	3200/4200/5000/6000X2700	4000/5000/6000/8000x3000	4000x5000x6000x8000x3000
Table form (,No.*screw hole)	mm	9-22*226	13-22*180	13-28*200	13-28*200
Spindle type	BT	BT50	BT50	BT50	BT50
Spindle speed	rpm	6000	6000	6000	6000
Spindle dia	Ø	190	190	200	200
Spindle motor	kw	22/26	22/26	22/26	22/26
X/Y/Z quickly move speed	m/min	12/12/12	12/12/12	15/15/12	12/12/12
Max cutting feed speed	-	1-10000	1-10000	1-10000	1-10000
Tool magazine capacity	pcs	24	24	24	24
Max tool weight	Kg	18	18	18	18
X/Y/Z axis position accuracy	mm	0.008	0.008	0.008	0.008
X/Y/Z axis repeat position accuracy	mm	0.005	0.005	0.005	0.005
Max.loading of worktable	g	9000/12000/15000/18000	16000/20000/23000/26000	16000/20000/26000/30000	16000/20000/26000/30000
Distance from the spindle front end to worktable center	mm	200-1300	175-1425	250-1500	250-1500
Machine size (L×W×H)	m	8/10/12/14X6X4.8	9/11/13/15X6.5X4.8	11/13/15/19X7X5	11/13/15/19X7.5X5.2
Machine weight	t	35/40/45/50	40/45/50/60	50/57/65/80	55/63/73/93

1.4 STANDARD ACCESSORIES

1	24 tool magazines	6	Tri-color warning light	11	Spindle cooling	16	Portable chip blowing air gun
2	Workpiece Cooling System	7	Machine cleaning water gun	12	Fully enclosed protective cover	17	Large flow chip flushing device
3	Automatic lubrication system	8	Spindle output water	13	Foundation screws and pads	18	Spindle nose labyrinth dust blower
4	Spindle air curtain dustproof system	9	Electric cabinet heat exchanger	14	Tools and Toolboxes	19	Chip trolley
5	LED working light	10	Network transmission and CF card function	15	Double screw conveyor& chain chip conveyor	20	Transformer

2. SERVICE
2.1TRAINING AND INSTALLATION
2.2AFTER SALES
1. From the BL date, the manufacturer offers a comprehensive one-year 'three guarantees' service for the product (excluding user-induced damage which may incur additional costs).
2.
Upon receiving feedback regarding machine tool malfunctions, the manufacturer will promptly diagnose and address the issue; if the cause is not immediately apparent, a response will be provided within 24 hours.at that time, a reply will be given within 24hours
2.3 Package

FACTORY WORKSHOP
3. Unveiling the pinnacle of engineering - the Efficient Gantry Vertical CNC Double Column Metal-Cutting Machining Center by NANJING NEWSIV EQUIPMENT CO., LTD. This revolutionary product redefines precision and efficiency in metal-cutting technology.FACTORY WORKSHOP: Explore the core of NANJING NEWSIV EQUIPMENT CO., LTD. Discover where innovation and excellence converge in a space equipped with cutting-edge technology and a focus on superior craftsmanship.
