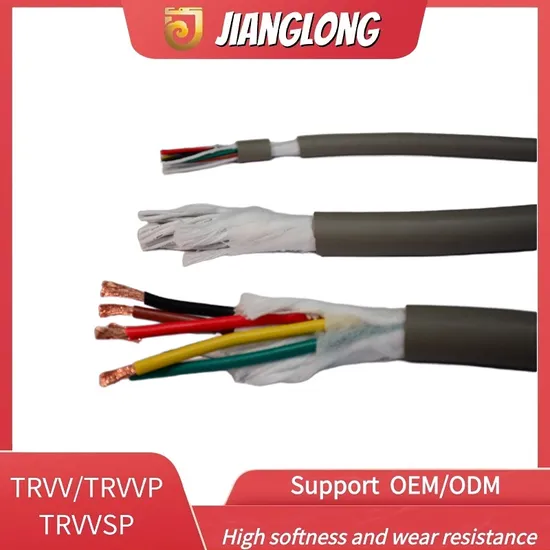

Trvvp High Flexible Drag Chain Shielded Wire (2 3 4 5 6 core) Tank Chain Cable Robot Arm

Product Description

Product Description
Robot cables used in robots have stringent requirements. They not only require robust signal transmission capabilities but also excellent wear resistance to ensure optimal performance of the robots. Robot cables are specialized cables that many companies cannot provide. Therefore, when choosing robot cables, we welcome you to choose Jianglong cable. The high-flex drag chain cable is a specially designed wire product with excellent flexibility, suitable for applications requiring frequent bending and movement. It is typically constructed with high-quality conductors and flexible insulation materials, offering outstanding abrasion resistance and durability to ensure reliability and stability in various harsh environments. The high-flex cable is widely used in machinery, automated production lines, cable carrier systems, portable equipment, and other applications where electrical connection wires need to be highly flexible and durable. Structure: Conductors: High-flex drag chain cables typically consist of multiple flexible conductors, often made of materials like copper or aluminum. These conductors are soft and easily bendable. Insulation Layer: Each conductor is insulated with a layer of insulation material, commonly polyvinyl chloride (PVC) or polyethylene (PE), to prevent electrical shorts between conductors and provide protection. Outer Sheath: All conductors are typically covered by an outer sheath, which protects the conductors and insulation layers from mechanical damage and environmental factors. The outer sheath is often made of durable and corrosion-resistant materials. Characteristics: Waterproof, oil resistant, abrasion-resistant, tensile, UV resistant, flame retardant and other characteristics; Using high-quality nitrile mixture, with high tensile and wear-resistant strength, it meets the requirements of frequent bending of cables. The designed cycle bending life is 8 million times, and the actual use has exceeded 10 million times. Flexibility: High-flex drag chain cables exhibit high flexibility, allowing them to bend and move easily. This makes them suitable for applications requiring frequent movement and changes in position. Durability: Due to their common usage in moving equipment and mechanical systems, high-flex drag chain cables have high durability and resistance to wear, capable of withstanding prolonged use and friction.

Structrual Diagram
Product Application Internal wiring of machinery and equipment: Used for electrical connections within various types of machinery and equipment, such as automation equipment, robots, and sensors. Automated production lines: Employed in factory automation production lines, such as assembly lines and packaging lines, as electrical cables connecting machine equipment. Cable carrier systems: Utilized within cable carrier systems as internal electrical cables for transmitting power and signals. Portable equipment: Used in various portable devices and machinery, such as mobile robots and handheld tools, due to their flexibility to adapt to different moving and bending conditions. Product Construction

Model	Product	Number of cores/square	Conductor/ Number of items/ Diameter	ID core wire	OD External covering
T02	TRVV	2x0.15mm²	30/0.08AS+200Ds	1.25mm	4.5
T03	TRVV	3x0.15mm²	30/0.08AS+200Ds	1.25mm	4.8
T04	TRVV	4x0.15mm²	30/0.08AS+200Ds	1.25mm	5.5
T05	TRVV	5x0.15mm²	30/0.08AS+200Ds	1.25mm	6.0
T06	TRVV	6x0.15mm²	30/0.08AS+200Ds	1.25mm	6.1
T08	TRVV	8x0.15mm²	30/0.08AS+200Ds	1.25mm	6.6
T10	TRVV	10x0.15mm²	30/0.08AS+200Ds	1.25mm	6.8
T12	TRVV	12x0.15mm²	30/0.08AS+200Ds	1.25mm	7.5
T14	TRVV	14x0.15mm²	30/0.08AS+200Ds	1.25mm	7.8
T16	TRVV	16x0.15mm²	30/0.08AS+200Ds	1.25mm	8.5
T20	TRVV	20x0.15mm²	30/0.08AS+200Ds	1.25mm	9.2
T22	TRVV	22x0.15mm²	30/0.08AS+200Ds	1.25mm	10.5
T24	TRVV	24x0.15mm²	30/0.08AS+200Ds	1.25mm	11
T26	TRVV	26x0.15mm²	30/0.08AS+200Ds	1.25mm	11.5
T30	TRVV	30x0.15mm²	30/0.08AS+200Ds	1.25mm	13

Product	Number of cores/square	Conductor/ Number of items/Diameter	ID core wire	OD External covering
Core wire material, abrasion-resistant -40+105 degrees. Abrasion resistant outer coating, cold -40+high temperature 105 degrees. PVC Sheath: black, gray, and orange can be customized. The outer diameter size can be customized according to customers. 2-core: blue, brown. 3-core: blue, brown, yellow, green. 4-core: brown, gray, black, yellow, green. 5-core: brown, gray, black, blue, yellow, green. The color of the 6-50 core wire is uniformly white, with numbers numbered 1-50.

Comparison of performance between PUR polyurethane, modified PVC drag chain cables, and other cables.

Materials	PUR	Polyvinyl chloride	PUR	PVC	Rubber	Rubber
Type	Polyether	Modified projectile	Polyester type	Ym2	Natural rubber	Chloroprene rubber
Application
Temperature	-35/+80ºC	-40/+105ºC	-25/+80ºC	+5/+70ºC	-25/+60ºC	-20/+60ºC
Dry Room	+++	+++	+++	+++	+++	+++
Wet Room	+++	+++	+	++	++	+++
Air	+++	+++	+	--	--	+++
Connectivity	+++	+++	+++	++	+++	+++
High bending stress connectivity	+++	+++	+++	+	+++	+++
Electrical performance
Volume resistivity	10 12	10 12	10 12	10 13	10 13>	10 13>
Wet electrical stability	++	++	+++	+++	+++	+++
Mechanical performance
Durability	+++	+++	+++	+	+	++
Ultimate elongation	+++	+++	+++	+	+++	+++
Tear strength	+++	+++	+++	++	+	++
Abrasion resistance	+++	+++	+++	+	+	++
Resistance
Low temperature	+++	+++	++	+	++	++
Hot air	++	+++	+++	++	+	++
Thermal expansion	--	--	--	--	+++	+++
Grease	++	++	+++	++	+	+++
Solvent	++	+	+++	+	+	+
Ozone	++	+	+++	+++	+	++
Climate	+++	++	++		+	++
Hydrolysis	+++	++	+	+++	+++	+++
High-energy rays	++	++	+++	+++	+	+
+++=Excellent ++=Good +=Commonly -- =Poor
