Flexible Customized Agricultural Machine Potato Harvester 4uzy-100

Product Description

Product Description
AUTOMATIC LOADING HARVESTER
Potato automatic loading harvester has good performance and efficiency and can harvest crops directly into the transport truck.
It can be made according to the actual planting situation of farmers with the corresponding width of the harvester, which is mainly used for harvesting Potatoes, sweet potatoes, and other underground root crops.
Potato automatic loading harvester has automatic loading and harvesting efficiency high, low damage rate, light operation, no vibration, no blocking grass, fast soil leakage, simple structure, long service life, and so on.
These machines come in different sizes and types, including manual, semi-automatic, and automatic models, as well as those specifically designed for small-scale or large-scale farming operations.
Product Parameters

4UZY-100 Parameter List
NO	PROJECT	DESIGN VALUE	NO	PROJECT	DESIGN VALUE
1	Model	4UZY-100	19	Depth limiting mechanism type(depth limiting wheel, others)	Depth limiting roller wheel
2	Structure type (traction type,self-propelled type,three-point suspension)	Self-propelled type	20	Pick up the smallest size	33.5mm
3	Cab(no,simple ordinary,closed)	Simple type	21	Type of cleaning separation device (vibration simple,others)	Sorting
4	Walking mode(wheel type, cate-rpillar type)	Wheel typd	22	Conveyer type (grid chain type, Belt type,other)	Grid chain
5	Tire/track model	Drive:9.5-20 Steering wheel:26X10-12	23	Conveyor chain gap	Front:50mm; Medium:45mm; Rear:45mm
6	Number of tires/tracks	2 driving wheels, 2 steering wheels	24	Chain bar material	55 chrome-silicon
7	Tire/track spacing(center)	500mm	25	Collection methods	The fashion ton bag
8	wheel base	2095mm	26	Discharge method	Lift back tilt plate
9	Minimum ground clearance	230mm	27	Engine manufacturer	Anhui Quanchai power Co,LTD
10	Working size (L*W*H)	6200*2400*2800mm	28	Engine model number	V30-100C41
11	total weight	3500kg	29	Engine em ission standard	Fourth-stage national
12	working width	1000mm	30	Nom inal engine speed	2400r/min
13	working performance	0.13-0.2ha/h	31	Fuel filling	Diesel
14	Tool forward speed	5-20km/h	32	driving type	Hydraulic drive
15	Matching power/machine horsepower	100HP	33	Brake type	Transmission braking
16	Type of excavation device	Scraper knife	34	Variable speed mechanism type(mechanical,electric)	Mechanica
17	Blade material	65Mn steel	35	Job gear	High,empty,low
18	Digging depth adjustment	0-150mm	36	Travel gear	Hydraulic stepless speed change
Note: The values in the specification table are the oretical values,please refer to actual values.

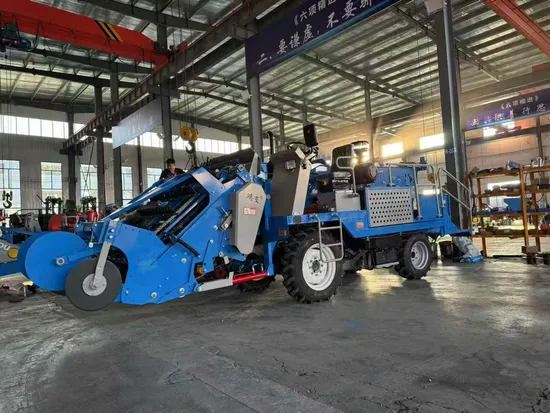

Detailed Photos
MULTIFUNCTIONAL HARVESTING:
This machine is designed to harvest multiple crops, including potatoes, sweet potatoes, and peanuts, making it an ideal investment for farmers with diverse agricultural needs.
RELIABLE PERFORMANCE:
The machine features a gear drive system and a powerful motor, ensuring reliable performance and durability in various farming conditions.
SUITABLE FOR VARIOUS FARM SIZES:
This harvester is suitable for farms of all sizes, including small, medium, and large-scale operations, making it a versatile addition to any agricultural operation.
OUR ADVANTAGE:
1.It features working efficiency, lower breakage rate, and lower skin break rate.
2. Light & quick running without vibration, no blocking by the grasses, leaks the soil quickly, lower buried potato rate.
3. The penetrating angle of the excavating device is the same as the elevation angle of the transfer & separate device. It effectively solves the problem of soil accumulation after shoveling.
4. Matching power is the common four-wheel tractor, it features wide adaptation, strong applicability, low investment, and ease of operation.
OUR FEATURE:
1. Single-row potato harvester machine for sale can be used in various tubers harvest, such as potato, sweet potato, peanut, garlic, and so on.
2. This Single-row potato harvester machine for sale has high efficiency, low breaking rate, and fast working speed without vibration.
3.The Single-row potato harvester machine for sale has no block grass & soil leakage fast, simple structure & durable.

FAQ
Q1. What are your terms of payment?
A1:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What are your terms of delivery?
A2:EXW, FOB, CFR, CIF. Which delivery terms depend on your choice?

Q3. How about your delivery time?
A3: Generally, it will take 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Most time we have some in stock.

Q4. Are you interested in a dealership with a local company?
A4: Of course, we are quite interested in this business. We'd like to cooperate with some local partners to sell more HONGYOU machines in the local market and supply better service.


Q5. Do you test all your goods before delivery?
A5: Yes, we have 100% test before delivery and we can email you the test video if you need it.

Q6.Can you customize the machine for me?
A6: Yes, we can customize it according to the customer's requirements.
