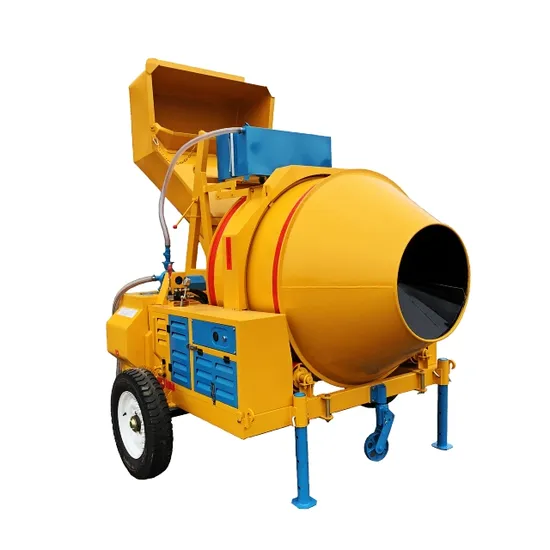

Containerized Used R Sale Kenya Market Mixer Concrete Portable Concrete Mixer
Basic Info.
Model NO.
(JZR500)
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Vacuum
Structure
Cylinder Type
Productivity
15m3/H, 10-14m /H Mixer Concrete
Feeding Height
1370mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Green
Speed of Mixing Drum
13
After Warranty Service
Video Technical Support
Engine
Changfa or Yanmar Diesel Engine
Water Supply Mode
Pump
Weight
1850
Outline Dimension
3100*2320*3070
Warranty of Core Components
1 Year
Marketing Type
New Product 2019
Motor Power
11kw
Keywords
Mixer Concrete Portable Concrete Mixer
Working Cycle Period
13
Video Outgoing-Inspection
Provided
Mixing Power
11
Applicable Industries
Construction Works
Unique Selling Point
High Load Moment
Transport Package
1*20 Feet Container
Specification
1790kg
Trademark
Topall portable concrete mixer
Origin
Jiangsu, China
Production Capacity
2000 Unit/Units Per Month
Packaging & Delivery
Package Size
190.00cm * 230.00cm * 225.00cm
Package Gross Weight
1790.000kg
Product Description
Containerized used concrete mixer for sale Kenya Market mixer concrete portable concrete mixerProduct Description
Application of reversing drum concrete mixer
The reversing drum concrete mixer is of middle capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete.
Features of reversing drum concrete mixer
1. reversing drum concrete mixer adds a water pump for water circulation between water tank of the engine and the radiator; keeps the engine water temperature to be stable.
2. Removing the air sucking point from the back to the front, reduce to suck the dust. It will be good to prolong the service life of the engine.
3. It has the advantages of compact structure, higher reliability, mixing evenly, big capacity, easy operation, easily movable between sites, etc. The mixer is widely used in building site, road and bridge project, and many other construction sites.
| Model | RDCM500-16DH (JZR500) | RDCM350-11DHA/B (JZR350) | RDCM350-11D (JZC350) | RDCM350-8EH (JZC350Y) | RDCM350-6E (JZC350) | ||||||
| Capacity of discharging(L) | 500L | 350L | 350L | 350L | 350L | ||||||
| Capacity of loading(L) | 750L | 560L | 560L | 560L | 560L | ||||||
| Power Source | Yanmar deisel engine | Changfa S1100BNM | Changfa S1100BNM | Electric motor,3-Phase, 380v,50Hz | Electric motor,3-Phase, 380v,50Hz | ||||||
| Power(kw) | 16.2 | 11 | 11 | 7.5 | 5.5 | ||||||
| Capacity of water tank(L) | 140 | 110 | 110 | ||||||||
| Drum rotating speed(r.p.m) | 13 | 13 | 13 | 13 | 13 | ||||||
| Capacity per hour(m3/h) | 13-18 | 10-14 | 10-14 | 10-14 | 10-14 | ||||||
| Max. towing speed(km/h) | 20 | 20 | 20 | 20 | 20 | ||||||
| Overall size(mm) | 3750*2240*3800 | 3250*2240*3200 | 3100*2320*3070 | 3100*2140*3070 | 2765*2140*3000 | ||||||
| Weight(kg) | 2050 | 1790/1840 | 1850 | 1510 | 1420 | ||||||
| Hopper lifting model | Hydraulic tipping hopper | Wire rope hoisting tipping hopper | Hydraulic tipping hopper | Wire rope hoisting tipping hopper | |||||||
Packaging & Shipping
Our Services
Company Information
Topall company was establish in Yixing City, starting date in October 2005, is a focus on small and medium sized construction machinery R & D, production and international trade, private partnership enterprises, the main market is Africa, South Asia, the Middle East and South America and other underdeveloped countries and regions.
