Concrete Vibrator Shaft, Concrete Vibrator Poker, Concrete Vibrator Needdle
Basic Info.
Model NO.
SA200MP103
Machining Process
Vibrating
Structure
Connect with Poker
Productivity
240m²/h
Feeding Height
1370mm
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000
Condition
New
Color
Yellow
Engine Brand
Ey20, Petrol, Honda Gx160
Engine Power
5.0 HP, 5.5 HP
Vibration Frequency (V.P.M)
10, 000-12, 000
Vibration Amplitude
0.9 mm, 1.1 mm
Rotation Speed of Engine
3600 Rpm
Default Poker Diameter
36 mm
Default Poker Length
6000 mm
Gross Weight of Engine
23 Kgs
Gross Weight of Poker
17 Kgs
Transport Package
Carton
Specification
CE
Trademark
Super-above
Origin
Jiangsu, China
HS Code
8430610000
Production Capacity
1000PC/Month
Product Description
PRODUCT DESCRIPTIONProfessional concrete vibrator with EY20 5.0HP engine
Concrete vibrator, work with concrete vibrator shaft, Is suitable to the commodity concrete, widely applies to the bridge, the harbor
construction, the large-scale dam, the water wheel power plant, the high-level building base pours into post picket, crowded reinforcing
steel bar net coagulation dirt wall and major and medium small architectural engineering.

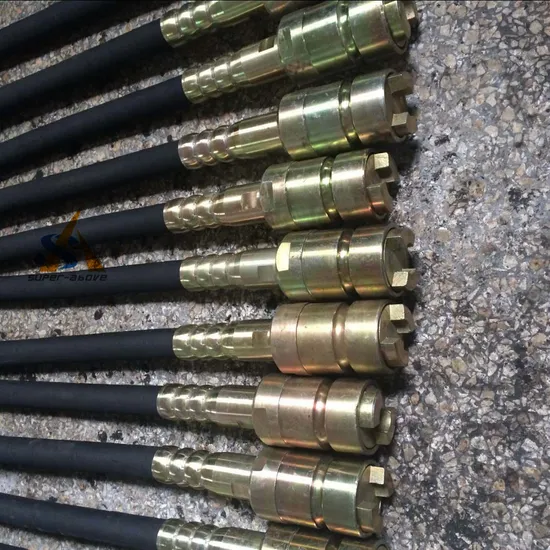

Gasoline Engine Vibrator Coupling Choice
1. DYNAPAC Coupling
2. Japanese Coupling
3. Ball Type Coupling
4. Pin Type Coupling
5. Other coupling like Australia type, Russia type can be available, based on customers' choice.
Gasoline Engine Vibrator Specification:
Model | SAV-H | SAV-R | SAV-L | SAV-K |
| Engine | Air-cooled, 4-cycle,single cyliner | |||
| Engine Type | Petrol, Honda GX160 | Petrol EY20 | Petrol, Lifan 168F | Diesel, Kama 170F |
| Power | 5.5hp/4.0kw | 5.0hp/3.6kw | 5.5hp/4.0kw | 3.8hp/2.8kw |
| Rotary Speed | 3600rpm | |||
| Coupling Choice | DYNAPAC Type, Pin Type, Ball Type | |||
| Applications | Concrete vibrator, submersible flexible pump | |||
| Weight | 22kg(49lbs) | 25kg(55lbs) | 24(53lbs) | 34(75lbs) |
| Packing | 53*38*54cm(21*15*21in) | |||
| Model | SAVH1 | SAVR2 | SAVC 3 | SAVG 4 | GVD |
| Engine type | Petrol, Honda GX160 | Petrol EY20 | Petrol EY20 copy | Petrol, Wilson 168F | Diesel engine 170F |
| Engine | 5.5 | 5 | 5 | 5.5 | 3.8 |
| Power(hp) | 22 | 23 | 23 | 2.2 | 31 |
| Rotation speed(r/min) | 3600 | 3600 | 3600 | 3600 | 3600 |
| Coupling | Chinese type, Japanese type, Malaysian type | Chinese type, Japanese type, Malaysian type | Chinese type, Japanese type, Malaysian type | Chinese type, Japanese type, Malaysian type | Chinese type, Japanese type, Malaysian type |
Technical Specification
| Model | ZV25 | ZV28 | ZV32 | ZV35 | ZV38 | ZV45 | ZV50 | ZV60 | ZV70 | |
| Dia.of vibrator head(mm) | 25 | 28 | 32 | 35 | 38 | 45 | 50 | 60 | 70 | |
| Vibrating Frequency(Hz) | 230 | 230 | 210 | 200 | 200 | 200 | 200 | 200 | 200 | |
| Dia.of Flexible Hose (mm) | outside | 24 | 25 | 30 | 30 | 30 | 32 | 36 | 36 | 36 |
| inner | 13 | 14 | 16 | 16 | 16 | 18 | 20 | 20 | 20 | |
| Dia.of Flexible Shaft(mm) | 8 | 8 | 8 | 10 | 10 | 12 | 13 | 13 | 13 | |
| Amplitude(mm) | 1.10 | 1.11 | 1.13 | 1.15 | 1.18 | 1.2 | 1.21 | 1.28 | 1.32 | |
| Weight(kg)(6m) | 9.7 | 10 | 10.6 | 14.6 | 15.2 | 17.5 | 21.7 | 22.7 | 24.2 | |
| Dimension(mm)(6m) | 830×650×55 | 830×650×75 | ||||||||
| Hose Length(mm) | 1~12 | |||||||||
| Couling | Chinese Type,Japanese Type,Malaysia Type,Australian Type | |||||||||
