WPC Board Celluka Board Extrusion Machinery

Product Description

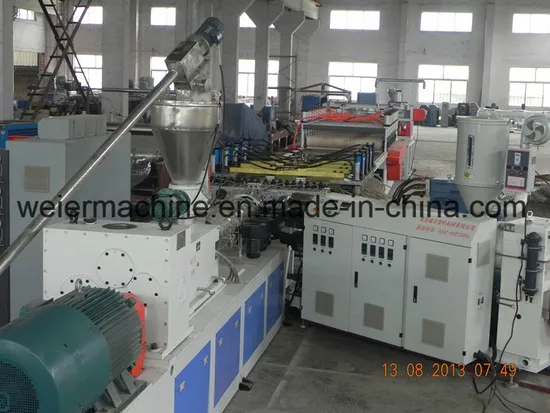

WPC Foam Board extrusion Line
PVC 1220mm (4-25mm) Hard-surface Foaming Solid Board machinery
Characteristics and functions of products
1. PVC crust foamed plate has such characteristics as sound separation, sound absorption, heat separation, temperature-keeping, etc.
2. The material is incombustible, it is safe for use.
3. All series of products have property of moisture proof, mildew proof, water resistance, its vibration resistant effect is good.
4. All series of products have property of weathering proof, its luster may remain forever, it is not easy to be ageing.
5. This product is light, storage &transport, construction are rather covenient.
6. This product can be worked with normal tools for wooden material.
7. Drilling, sawing, nail, planning, bonding can be conducted like wooden material.
8. It is suitable for thermal shaping, thermal bending and fold procession.
9. It can be welded, it can also be bonded with other PVC material.
10. The surface of the product is smooth, it can be printed.
Transport industry:
Ship, plane, bus, train carriage, ceiling, tank core layer, indoors decoration plate.
Architectural decoration industry:
Building outer wall cladding, indoor decoration plate, residence, office, separation of public building, commercial decoration shelf, dust free room, ceiling plate.
Advertising industry:
Screen printing, computer lettering, advertising plate, exhibition plate, logo plate.
Industrial application:
Anti-erosion project in chemical industry, thermoforming pieces, refrigeratory warehouse plate, special cold insulation project, environmental protection plate.
Other application:
Construction template, cultivation plate, seashore damp-proof facility, water resistant plate, various of light clapboard

Model	Length	Width	Thickness
SJSZ-80/156	2440 mm	1220mm	4-20mm
SJSZ-92/188	2440 mm	1500mm	4-30mm

		Equipment name	Quantity	Price
	1.	WPC foam board extrusion line
	1.1	SJSZ-80/156 conical twin-screw extruder	One set	USD
	1.2	Extrusion T die mould	One set
	1.3	Hydraulic pressure calibration machine	One set
	1.4	Cooling conveyor Bridge	One set
	1.5	Edge cutting unit	One set
	1.6	Rollers Haul-off	One set
	1.7	Length metering device	One set
	1.8	Transverse cutter	One set
	1.9	Stacker	One set
	1.10	embossing rollers	One pair
	2.	Wood powder production line
	2.1	Wood chipping system	One set
	2.2	Wood Crushing system	One set
	2.3	Wood Drying System	One set
	2.4	Wood Millling/Pulverizing System	One set
	3.	UV surface treatment system for PVC/WPC board	One set
	4.	FMB-1300 WPC/PVC board lamination machinery	One set
	5.	Auxiliary machines
	5.1	SHR-500/1000 hot and cold mixer	One set
	5.2	SWP-560 grinder	One set
	5.3	SMP-500 pulveriser	One set
		Total amount		USD
Delivery time:delivery within 50-60 days since getting the payment advance.
Payment terms:payment by TT 30% advance,then we start the Machine manufacture,the 70% Balance by TT or Irrevocable L/C before shipment(after you come to test the machine in our factory)
