Mini Toroidal Cores Fully Automatic Winding Machine Fully Automatic Toroid Coil Winder Toroid Transformer Coil Winding Machine with PLC Programmable Controller

Product Description

Specificaton

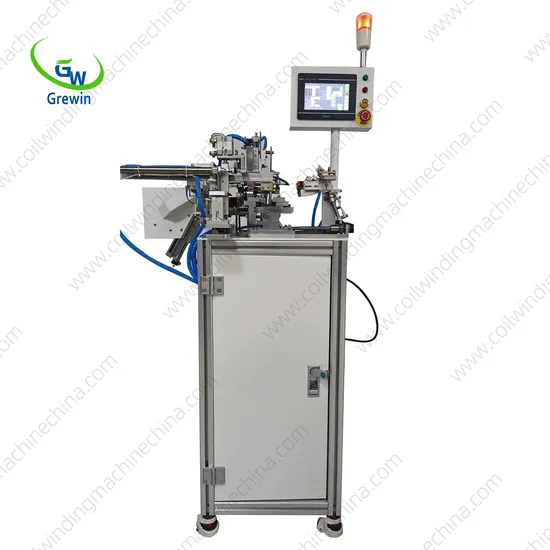

Mini toroidal Cores fully automatic winding Machine Fully Automatic Toroid Coil Winder Toroid Transformer Coil Winding Machine with PLC Programmable Controller

GW-7004 New design servo motor Intelligent fully automatic toroidal coil winding machine

1	Model	GW-7004
2	power supply	220V/110V 50/60HZ
3	Air pressure	0.6Kpa-0.8Kpa
4	Maximum wire diameter	0.2mm
5	Minimum wire diameter	0.05mm
6	Maximum finished outer diameter	40mm
7	Minimum finished inner diameter	6mm
8	Maximum finished product height	20mm
9	Line spacing control	Programming control
10	Sectional winding control	Programming control
11	Cumulative winding control	Programming control
12	Cable motor	Hybrid stepping motor
13	Main motor	servo motor
14	Winding speed	Adjustable,the fastest equipment is1400rpm
15	physical dimension	900mm*900mm*1500mm
16	Weight	75KG

Features:
1.winding speed:7004:1300rpm 7005:1200rpm
2.Output:About 20PCS/hour if the winding turn is 3000 turns.
3.Main motor: servo motor make the wiring more precise
4.PLC controller
5.This machine is very easy to operate,one worker can watch over 30-50 machines at same time in china.
6.Three winding mode:Clockwise mode CMC mode Back and forth mode.
GWA-70HMT Full Automatic Hook Winding and Taping Machine

No.	Item category	Value
1	Equipment model:	GWA-70HMT
2	Adapt to the magnetic ring (outer diameter):	14mm-45mm
3	Adapt to wire diameter:	0.5mm-2.0mm
4	Length of unilateral line:	1200mm
5	Winding speed:	Depends on wire diameter and number of coils
6	application winding method:	conventional winding method / forward winding
7	Power supply:	220V/50Hz single-phase alternating current
8	Air source:	0.55Mpa-0.60Mpa
9	Noise:	60 decibels
10	Equipment power:	3KW
11	Equipment power:	0.55°/hour
12	Operating ambient temperature:	-5°C~40°C
13	Relative humidity:	(40~90)%RH
14	Comprehensive pass rate:	99.5%
15	Dimensions:	length 1750mm (including belt line) * width
16	Machine weight:	500KG

Features:
1.Two winding machine head:One head for one side winding,the other for another winding
2.The machine is fully automatic operation, automatic loading and unloading,
alarm for lack of material
3.one person can monitor multiple machines, work 24 hours,
and the production efficiency can reach more than 3 times that of manual winding.
4.It only takes 25 seconds for a total of 30 turns on both sides to produce a finished product
GWV-12A Servo motor PLC contorller Toroidal Transformer Winding machine

Wire size	0.15-2.36mm
Minimum finish inner diameter	25mm
Maximum completion height	100mm
Maximum finish outer diameter	25-300mm
Max speed	150rpm
Tape Magazine diameter	220mm

Features:
1.The servo motor + paired with proximity switch counting ensures hundreds of percent accurate turns, and the maximum idle speed of the machine head can reach 150rpm
2.The stepper motor ensures exquisite wiring
3.Brand new PLC+touch screen control system, German manufacturing technology
GW-29T PLC contorller Toroidal Transformer coil Winding machine with Servo motor

Wire size	0.2-1.6mm
Minimum finish inner diameter	17mm
Maximum completion height	70mm
Maximum finish outer diameter	50-150mm
Max speed	240rpm
Tape Magazine diameter	210mm

Features:
This model is a professional machine for winding toroidal transformers, toroidal
potentiometers, and toroidal current transformers with exquisite wiring and powerful
power to adapt to various wire diameters.


GWV10-PLC Automatic Micro core Servo motorToroidal Coil Winding Machine

Wire size	0.05-0.32mm
Minimum finish inner diameter	1.8mm
Maximum completion height	10mm
Maximum finish outer diameter	5-14mm
Max speed	1500rpm
Magazine inner diameter	60mm

Features:
1.Actual input of the inner and outer diameter, wire diameter and wire spacing values of the magnetic ring without repeated debugging is required.
2. Can be completed automatically: dense winding, sparse winding, multi-layer winding, forward and reverse winding, segmented winding, multi-thread parallel winding, etc.winding method.
3.The main motor is a 400-watt servo, with constant torque and precise rotation, and the magnetic core clamp is driven by a stepper motor neat and beautiful wiring.

GWL-0119 Toroid Transformer copper wire coil Winding Machine

Equipment model	GWL-0119
Winding mode	Gear type
Finally complete the outside diameter	80-200
Minimum finished inside diameter	40
Maximum finished height	80
Wire diameter	0.7-2.5
Perimeter of magazine	300
Width of magazine	8-25
Maximum speed	230 RPM
Operating voltage	220V/50HZ
Overall dimension	500x600x750
Weight	120KG

Features:
1.Toroid coreTransformer Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wirewithout insulation damage.
2.One set standard automatic toroid coil winding include one PCS winding shuttle only,other sizes winding shuttles are optional.
3.The open gap gear rack and hinged gap magazine of auto Toroid Transformer Winding Machine facilitate core change ,maximizing output.

GWL-6200 Slider type toroidal transformer coil winding machine

Equipment model	GWL-6200
Winding mode	Gear type
Finally complete the outside diameter	60-120
Minimum finished inside diameter	35
Maximum completion height	80
Suitable winding diameter range	0.2-0.7
Diameter of wire storage ring	195
Width of storage ring	9-12
Maximum speed	800 RPM
Operating voltage	220V/50HZ
Overall dimension	500x600x700
Weight	90KG

Features:
1.Toroid Coil Winder Machine feature high quality,easy to operate.
2.Automatic transformer winding machineLock gap shuttles,with polished sliders,gentle on wire insulation.
3.Coil transformer winding machine is ability to control winding speed.

GWLA-0319 Gear type middle speed copper wire toroidal coil winder

Equipment model	GWLA-0319
Winding mode	Gear type
Finally complete the outside diameter	60-200
Minimum finished inside diameter	25
Maximum completion height	80
Wire size	0.5-1.6
Diameter of magazine	250
Width of magazine	3-8
Depth of storage ring	10/12/16
Maximum speed	230 RPM
Operating voltage	220V/50HZ
Overall dimension	500x600x750

Features:
1.Brake tension adjustable, Good settlement for large outer diameter, small inner diameter,transformer coil winder heavy wire coils.
2.Current transfromer coil winding machine with high production efficiency, increase winding efficiency by adjustment of suitable brake tension
3.It adopts the latest microcomputer full Chinese liquid crystal display controller, which has practical functions

GWL-0519 Gear type Current Transformer Winding Machine

Wire diameter	0.7-2.0mm	Max.winding speed	200rpm
Max.final coil.O.D	φ60-250mm	Magazine width	4-18mm (optional) standard 8mm
Min.final coil.I.D	Φ40	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	90	Mechanical dimensions	650*500*700mm
Controller storage capacity Programs	50*20 set	Wight	120kg

Features:
1.High quality auto transformer coil winder guarantee no wire damage.
2.Parts highly optimized and universal for general use, Easy maintenance
3.Enquiries can be quoted one day service

GWL-815 Gear type high quality coil winding machine for toroidal transformer

Wire diameter	0.3-1.6mm	Max.winding speed	300rpm
Max.final coil.O.D	Φ50-200mm	Magazine width	3-10mm (optional)
Min.final coil.I.D	Φ20mm	Supply voltage	AC 220V(50Hz)
Max.final coil height	60mm	Mechanical dimensions	650*500*700mm
Controller storage capacity Programs	50*20 set	Wight	100kg

Features:
1.Accurately wire and tape spacing by adjustable.
2.Toroid Digital Transformer Winding Machine can easily exchangeable magazines secure maximum flexbility.
3.Extremely powerful,maintenance free AC motors for main drive and core rotation.

GWL-0619 Big gear high stability floor type winding machine for inductor

Equipment model	GWL-0619
Winding mode	Gear type
Max.Final outer diameter	130-450
Mini final inside diameter	70
Max Final height	220
Wire diameter	1.0-4.0
Perimeter of magazine	1200
Width of magazine	10-30(Optional)
Max winding speed	120 rpm/min

Features:
1.Floor type winding machine Complete range of articles, large range of wire diameter, Multipurpose
2.Big toroidal transformer winder machine with good compatibility, parts are interchangeable
3.High stability, part quality guarantee
GWLJ-0519 Gear type Rectangle transformer coil winding machine

Wire size	0.7-2.0mm(Single enamelled copper wire, multi-wire winding, the combined strength does not exceed the maximum value)
Finish the outer length/width	60-300mm (Please note: 60-300mm does not mean such a wide range directly, but refers to adjustment by adjusting some installed parts. If the maximum 300mm is selected, products smaller than 150mm cannot be processed; on the contrary, if the product is selected to be suitable for small products, it cannot be processed. Products larger than 150mm.)
Minimum the inner length/width	45mm(Length is greater than 45mm Width is greater than 45mm)
Maximum finished height	60mm
Magazine width	4-18mm(Optional)Standard configuration (8mm)
Magazine perimeter	720mm
Max winding speed	250rpm/min
Controller storage capacity Programs	50*20set (1000 running programs)
Weight	120KG
Dimension	650*500*700mm

Features:
1.Rectangular Coil Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire without insulation damage.
2.Copper wire Rectangular winder extremely powerful,maintenance free AC motors for main drive and core rotation.
3.Easily exchangeable magazines secure maximum flexibility.

GW-9751i High efficiency copper wire automatic bobbin winder machine

Spindles	1	Spread Motor	stepping Motor
Wire diameter	0.5 - 2.5mm	Max Speed	2000rpm
Spread Pitch	0.001 - 9.999mm	Memory	999 Sequences
Spread Width	600mm(Max)	Power Source	AC 220V 50/60MHZ
Winding Width	200mm(Max)	Weight	75Kg
Main Motor	500W DC Motor	Dimension	940*510*430mm
Winding turns	9999	Special device	An external sensor can be installed to calculate the length

Features:
1.This single spindle linear synchronal winding machine for highest efficiency
2.This bobbin transformer coil winding machine more convenience by using foot-switch
3.Memory capacity accommodates 999 sequences of parameters with off-power memory retention
GWP8-126 Eight Spindles full Automatic Linear Coil Winding Machine for bobbin transformer

Number of winding spindles	8
Spindle speed	10000rpm
Wire diameter	0.05-0.6mm (more than 0.4mm need to add different accessories)
Spindle spacing	126mm
Maximum bobbin outer diameter	60mm
Spindle Inner Diameter	Standard:10mm Special :12mm\14mm
Guide pin moving range	X:80 Y:100 Z:70 mm
Winding motor power	1.5KW\2.0KW
X\Y\Z axis power	400W\750W
Pressure	0.4-0.65Mpa
Supply voltage	AC220V±10% 50HZ
Total power	2.8KW\4.0KW
Machine size	Length:1100mm Width:1000mm Height:1400mm
Machine weight	800Kg

Description of main components:

Winding servo motor	Panasonic Japan
X/Y/Z-axis servo motor	Panasonic Japan
Control System	Weiding high-precision six-axis motion controller
Human-machine interface	7-inch WEINVIEW touch screen
Screw guide	Taiwan TBI, grade C accuracy
Timing belt	BANDO Japan
Bearing	NSK Japan
Sensors	Omron
Tensioner	High-precision magnetic tensioner
Spindle box	Cast iron box
Worktable board	Cast iron platen
Other mechanical components	Independent design

Features:
1.The control part adopts the most advanced multi-axis motion control system, with excellent performance such as linear and circular interpolation, spiral winding, etc.
2.All moving parts are driven by AC Panasonic servo motors with high speed, accurate positioning and long service life.
3.All important components are imported brands.
