Diesel Engine Used Cement Mixer Pump Mobile Concrete Mixer Machine Price Diesel Concrete Pumps 40m3/H Concrete Mixing Pump

Product Description

Product Description

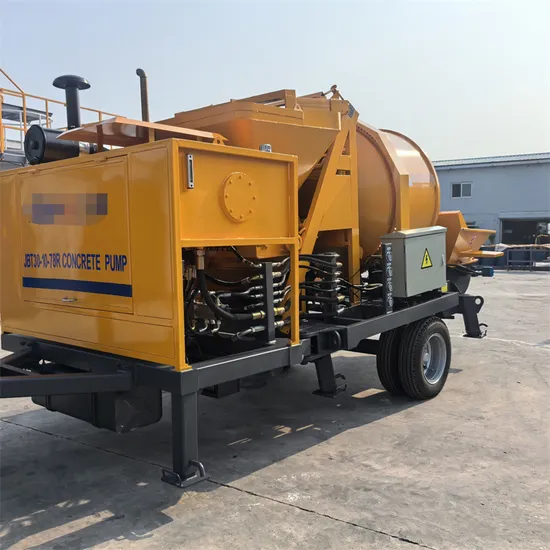

Used Diesel mixing integrated conveying pump
Concrete mixing and pumping integrated machine is a small concrete conveying pump that adopts a fully automated construction operation system, integrating feeding, mixing, and high-pressure pumping. It can achieve on-site mixing and continuous pumping, greatly improving construction efficiency.
Suit for:
Transporting large aggregate concrete such as foundation pile driving, including rural civil construction, township and new rural construction, and various tunnel constructions such as highways and railways; Water conservancy and hydropower engineering; Geological hazard slope management; Construction characteristics such as large concrete pouring volume or narrow space for basic irrigation
Technical Characteristics:
1.It is equipped with special pipeline.2.It can continuously complete horizontal and vertical conveyance of concrete along pipeline. 3.It is an ideal kind of existing concrete conveyance equipment. 4.It combines the production of ready-mixed concrete with pumping construction and uses coagulation. 5.The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete.6.It is used for conveying concrete in large concrete projects.
Product Parameters

40 Diesel Drum mixing&conveying pump
Project	Parameter	Project	Parameter
Pump model	JBS40-12-84R	conveying cylinder diameter x stroke	Ф180×1000mm
Theoretical concrete conveying capacity	45 m³/h	main cylinder diameter × stroke	Ф100×1000mm
Theoretical concrete mixer mixing amount	15-20 m³/h	Control mode	Remote control
Concrete mixer lift bucket volume	800L	Distribution valve form	S-valve
Concrete mixer feed capacity	650 L	Hydraulic oil circuit form	Open
Discharge capacity of concrete mixer	450 L	Lubrication system	Automatic lubrication
Engine power	84 kw	Pumping system oil pressure	32 Mpa
Engine brand	Weifang Yuxing	Mixing system oil pressure	8 Mpa
Engine speed	2000r/min	Hydraulic tank volume	450 L
Concrete transfer pressure	12 Mpa	Allow concrete aggregate size	<40mm
Theoretical vertical height of concrete conveying	150 m	Discharge port inside diameter	Ф150mm
concrete conveying horizontal distance	600 m	Inside diameter of concrete conveying pipe	Ф125 mm
Equipment dimensions: length × width × height	5800×2200×2300 mm
Equipment weight	6000 kg
