Multifunctional Polyester Rope String Monofilament Extrusion Machine for 1-20mm Rope From 100% Water Bottle Flakes/Chips

Product Description

Multifunctional PET and HDPE Rope String Monofilament Extrusion machine for 1-20mm Rope
Product Description

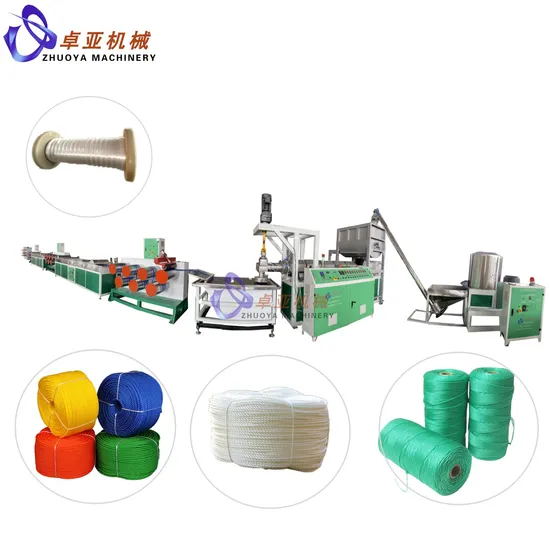

Plastic Twine and rope filament extruding machine is automatic production line for PET,HDPE monofilament which is used to produce different kinds plastic rope and twine product.This unit can produce PET, PP, PE,PA monofilament automatically for plastic rope product. To make different raw materials plastic rope fiber, we have advanced and professional machine line design and technology support which is in leading position in this field. With recycled raw material, and less labor requirements, the production cost is cheap, so our clients will get good profit in the market.
1. Most experienced manufacturer: Professional machine and mature technology with more than 20 years experience.
2. Green and Eco-friendly: 100% recycled PET flakes as the raw material for PET filament and can be recycled many times
3. Machine Development: Continuous improvement and feedback from Customers from more than fifty countries all around the world.
4. Better performance: low energy consumption, high production capability
5. Automatic Operation: Automatic and convenient operation with one or two workers



Customized Services:

According to customers requirements for the target rope filament product, our machine can be customized to produce various types filament such as round filament, flat filament, split film filament etc. And the filament will be processed into ropes of different diameters with rope twisting machine.


Product Parameters
Machine Model

Model	ZYLS-75	ZYLS-80	ZYLS-90
Screw L/D	30:1	30:1	30:1
Gearbox model	200	225	225
Main motor	18.5kw	22/30kw	30/37kw
Capacity(kg/h)	80-100kg	100-120kg	120-140kg
Mould Dia.	200	200	200
Filament Dia.	0.01-2.5mm	0.015-2.5mm	0.015-2.5mm

Equipment Configuration

No.	Name	Qty.
1	SJ75/SJ80/SJ90 single screw extruder	1 set
2	Die head	1 set
3	Water-cooling tank	1 set
4	First tensile machine	1 set
5	Pre-heating machine	1 set
6	Second tensile machine	1set
7	Third tensile machine	1 set
8	Oil bath tank	1 set
9	Pneumatic tensioner	1 set
10	Two position winder	1 set
	Electrical Configuration
	1) Main motor frequency controller: ABB 2) Temperature controller: OMRON 3) AC contactor: SIEMENS 4) Thermal overload relay: SIEMENS 5) Breaker: CHINT or according to customer requirement

Certifications
Packaging & Shipping
Customers and Exhibitions

Company Profile
Qingdao Zhuoya Machinery Co., Ltd. is a science and technology knowledge-intensive corporation integrated with research and development, fabrication, sales and service, professionally engaged in the manufacture of plastic filament production line equipment. We are expert in manufacturing plastic broom&brush filament extruding machine line, plastic rope filament extruder machine line, plastic synthetic hair filament extruder line, plastic synthetic false eyelash filament extrusion machine line, plastic safety net filament production line and plastic wire extruding machine line.
ZHUOYA is the pioneer in the field of PET monofilament extruder machine and Synthetic hair filament extruder machine. We invest and study the technology to use recycled PET water bottle flakes to make quality broom and brush filament, and produce qualified synthetic hair filament for wigs. Zhuoya is always holding the lead in its field and explore to new field at the same time.
Our extruders are exported to more than twenty countries all around the world such as Russia, Saudi Arabia, Kazakhstan, Canada, Ethiopia, South Africa, Tunisia, Nigeria, Algeria, Mexico, India, Vietnam, Sri Lanka and get a very good reputation among our customers and lots of feedback to improve our machine continuously.
To build stable long-term business relationship with our customers, we provide quality product and circumspect service to guarantee the benefit of our customers and create win-win cooperation. Located in Qingdao, a beautiful coastal city in Shandong Province, Zhuoya make full use of convenient land, sea and air transportation advantages and high-tech prosperity here to provide customer speed service and quality product.
We warmly welcome customers from the world to visit our factory and build long-term business relationship.
After Sales Service
1. Pre-sale service:
To provide best solutions and plans as per customer requirement
To help customers make project planning and systematic analysis
To maximize customer's satisfaction
To achieve the mutual benefits of our customers and our company
2. After-sale service:
To install products and test products for customers
To provide the formulas and technologies of relevant products
To provide technical direction according to customers' requirements
To provide technical training for clients' employees
To be responsible for maintenance service, door-to-door service under necessary circumstance
