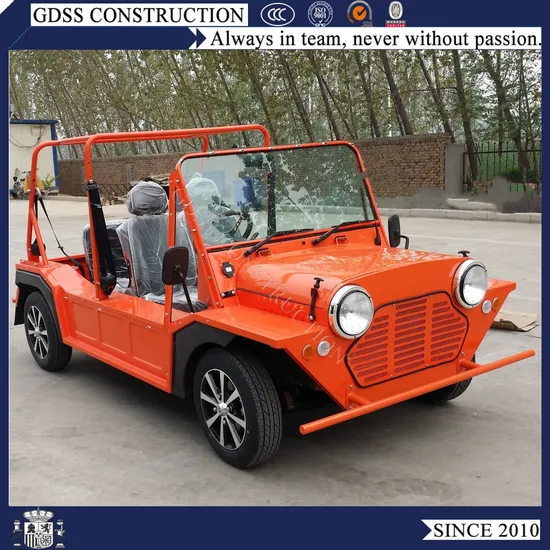

Lithium Battery Electric Car Golf Mini Moke
| US$11,750.00-13,670.00 | 4 Pieces (MOQ) |
Basic Info.
Model NO.
GD-EM2B
Power
10 Kw
Power Fuel
Electric
Maximum Speed
80 Km/H
Gradeability
>30%
Suitable for
Tourist Area
Certification
EEC, ISO
Voltage of Battery
96V
Color
All Colors Available
Vehicle Type
Mini Moke
Model
Electric Moke
Battery
Lithium Battery
Transmission
Automatic and Manual Transmission Both Available
Delivery
by Container
MOQ
4 Units
Lead Time
30 Days After The Receipt of Deposit
Gasoline Model
Available
Certificate
EEC Certificate
Transport Package
Steel Frames Packaged
Specification
Electric mini moke
Trademark
GDSS
Origin
China
HS Code
87031019
Production Capacity
50 Units/Month
Packaging & Delivery
Package Size
320.00cm * 150.00cm * 150.00cm
Package Gross Weight
600.000kg
Product Description
Company
Product Parameters Lithium battery mini moke
| Measurement Parameter | |
| Drive type | LHD |
| Dimensions (LxWxH) | 3290*1530*1500 mm |
| Wheelbase | 2120 mm |
| Wheel track front/rear | 1280mm/1280mm |
| Ground clearance | 180mm |
| Max climbing ability | 30° |
| Curb weight | 430Kg |
| Full load | 960Kg |
| Range | 150Kms |
| Seats | 4 |
| Electric motor | Motor model: GLMI10A1 Motor power (rated/peak): 10 KW/22 KW Motor rpm (rated/max): 3500/7000 r/min Motor rated voltage: 96 V Insulation class: H Protection class: IP65 Motor controller: GLCI6008A2 |
| Battery | Brand: CATL (battery supplier of Tesla) Rated capacity: 166AH Battery pack rated voltage: 96V Total energy: 16.5 KWH Max continuous charge current: 120A Max continuous discharge current: 145.6A Peak discharge current: 250A (Protected to 250 A) Standard voltage: 103.6V MAX voltage: 116V Battery pack weight: 131.2kgs Battery cell model: 18650 Battery core type: Ternary lithium battery Battery working temperature: -20°------60 ° Battery pack cooling method: Natural cooling Excess voltage protection: 4.15V Under voltage protection: 2.8V System self-discharge rate: Keep 95% at 25 days, 25°C IP rated: IP67 |
| Max.speed | 70 (Km/h) |
| Drive type | Front/Front |
| Chassis and other parameters | |
| Steering system | Gear rack mechanical steering |
| Brake system | Front disc/ Rear disc |
| Handbrake | Electronic handbrake |
| Dashboard | Aluminum dashboard |
| Suspension system (F/R) | (Front)double wishbone independent suspension, (rear) after trailing arm type independent suspension |
| Gearbox type | Two-speed transmission, Transmission ratio: 6.7:1 (low speed); 12:1 (high speed). |
| Tire | 155/65R13 |
| Body color | Red, Yellow, Black, Blue, White, Green |
Packaging & Shipping
Certificate
Customer Feedback
FAQ
1) What's the MOQ?
--3 units. But we can put 4 units into a 20ft container, so that we can have a lower shipping freight for each unit.
2) The transmission, what do you have?
-- We have manual transmission for gasoline model and automatic transmission for electric model.
3) Steering wheel assist system, can you install it for us?
-- Yes we can install it for you if you want, and only $350 charges for it.
4) If we want to be your sole agent in our market, what will you do to help us?
-- First you make the initial order to do the marketing, we will provide you a three-months protection. Then we can come to the agreement.
5) Can it be ok for Europe market?
-- Definately yes, we have got EEC certificate with COC document for registration.
6) We are a right hand drive country, can you make it?
-- Yes, both RHD and LHD available. Welcome to pay a visit to us
