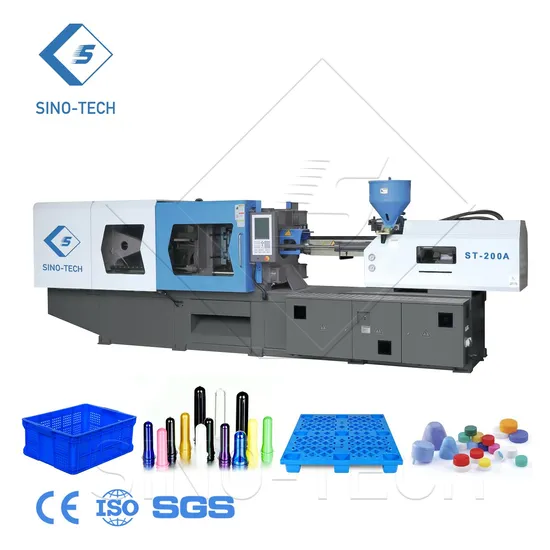

Energy-Saving Plastic Toy and Car Injection Molding Equipment St-750A

Product Description

Plastic Toy and Car Making Injection Molding Machine
Product Description
Machine Features:
1) Precision hydraulic synchronous template adjusting system
2) Optimal design of high-strength precision clamping structure, Clamping unit rigidity and accuracy
3) Large colorful screen high-precision computer system, precision control, easily operation, multi operation language available. High-precision displacement sensor system, temperature control accuracy, big capacity data storage and date protection ability
4) World famous brand electrical system
5) Balanced type of double injection cylinder, eliminate oblique torque, diminishes deformation of screw and barrel, extend life of screw and barrel, optimizes plasticizing effect. Machine injection under multi-pressure and at various speed, with big capacity hydraulic motor.
6) Large torque oil motor
7) Highly abrasion resistant alloy sliding block
8) The integrate type oil detachable oil tank, magnetic filter and bypass strainer. Reasonable and highly efficient lubrication system. Modularized energy conservation high response oil system
9) Highly precise transducer, multi-stage control of opening stroke, speed and position. Flexible tie bars nut eliminate fatigue fracture, assure tie bars long working life.
10) Security door fitted with hydraulic, mechanical and electrical interlocking triple safety device, fully protect machine operator.
11) Energy saving system, no extra energy consumption due to output volume changes according to load alteration. During stage of holding pressure, servo motor lower down energy consumption, 0 energy consumption during machine cooling stage, save 20%-80% energy consumption compare with standard machine.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

ITEM	UNIT	ST-750A
INJECTION UNIT
SCREW DIAMETER	mm	90	95	105
SCREW L/D RATIO	L/D	23.2	22	19.9
THEORETICAL SHOT VOLUME	cm³	2861	3188	3894
SHOT WEIGHT99(PS)	g	2603	2901	3543
INJECTION PRESSURE	Mpa	195	175	143
THEORETICAINIECTION RATE(PS)	G/s	560	610	700
PLASTICISING CAPACITY	G/s	85	100	110
SCREW TORQUE	N.m	7180
MAX.SCREW ROTATE SPEED	R/min	130
INJECTION STROKE	mm	450
CLAMPING UNIT
MAX.CLAMPING FORCE	KN	750
MAX.OPENING STROKE	mm	950
SPACE BETWEEN TIE BARS	mm	950*950
MOULD HEIGHT	mm	400-960
MAX DAYLIGHT	mm	1910
EJECTOR FORCE	KN	200
EJECTOR STROKE	mm	280
EJECTOR QUANTITY		17
OTHER
PUMP MOTOR POWER	KW	67
PUMP PRESSURE	MPa	16
HEATING POWER	KW	46.45
HEATING ZONE		6
SIZE	m	10.1*2.6*2.8
NET WEIGHT	t	40
OIL TANK CAPACITY	L	1500
INTERNATIONAL DESIGNATION		7500-5580
