Plastic Mixing Tank with Agitator Hot Water Tank Heater Water Tank Agitator

Product Description

Plastic mixing tank with agitator hot water tank heater water tank agitator Relater machines:
Usage and application field The product is mainly applied in such industries dailt chemical care products , biopharmaceutical industry , food industry , paint and ink , nanometer materials , petrochemical industry , printing and dyeing auxiliaries , pulp&paper , pesticide , fertilizer , plastic&rubber, electric and electonics , fine chemical industry , etc . The emulsifying effect id more prominent for materilas of high base viscosity and high solid content .
Definition of vacuum homogenizer emulsifier :
It means that when the materials are under the vacuum confition , it makes use of the high shear emulsifier to distribute one ot several phases to another continuous phase repidly and evenly , The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect . By the operation of hydraulic shearing , centrifugal extruding . impacting , breaking and turbulrnce for over 100 thousand times per minute , the materials will be dispersed and emulsified indtantly and evenly . after reciprocation circulation at high frequency , the fine finished products of stable and high quslity without bubbles will be achieved
Performances and features
1. the vacuum emulsifiers produced by out company include many varieties . the homogenizing systems included upper homogenization, lower homogenization , internal and external circulating homogenization . The mixing systems includ dingle-way mixing , double-way mixing and helical ribbon mixing , the lifting systems include single-cylinder lifting and double-cylinder lifting . Various high quality products can be customized according to customer's requirements
2.The triple mixing adopts the imported frequency converter for speed adjustment , which can meet different technological damands .
3.The homogenizing structure made through German technology adopts the i,ported double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 4200rpm and the highest shearing fineness can reach 0.2-0.5um ,
4. The vacuum defoaming can make the materials meet the requirment of being aseptic. The vacuum materials sucking is adopted , and especially for the powder materials , vacuum sucking can avoid dust .
5. The emulsifying pot lid can adopt lifting system, easy to clean and the cleaning effect is more abvious , the emulsifying pot can adopt tilt disvharge .
6. The pot body is welded by imported three-layer stainless steel plat . The tank body and the pipes adopt mirroe polishing , ehich fully conforms to GMP requirements
7. According to technological requirements , the tank body can heat or cool the materials the heating modes manily included steam heating or electric hetaing .
8. To esure the conmtrol of the whole machines is more stable , the electric appliances adopt imported configurations , so as to fully meet the internatonal standards. Main composition :

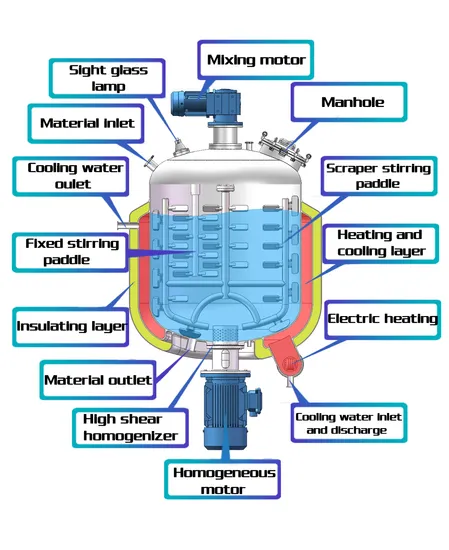

The vacuum emulsifying mixer is mainly composed of water pot , oil pot , emulsifying pot , vacuum system , lifting system (optional), electric contorl system (PLC is opetional ) operation platform etc . Main technical

model	Effective capacity		Mixing speed and powder			Homogenzer speed and powder		Heating way
			kW	r/min		kW	r/min	Electric heating	Steam heating
FMC-50	50		0.75	0-65		1.5	3500	6KW	-
FMC-100	100		1.5	0-65		1.5	3300	12KW	-
FMC-150	150		1.5	0-65		1.5	3300	12KW	-
FMC-200	200		1.5	0-65		3	3000	18KW	-
FMC-300	300		1.5	0-65		3	3000	18KW	-
FMC-500	500		2.2	0-65		4	3000	27KW	-
FMC-1000	1000		4	0-65		7.5	3000	36KW	-
FMC-1500	1500		4	0-65		11	3000	45KW	-
FMC-2000	2000		5.5	0-65		11	2500	Steam heating
FMC-3000	3000		7.5	0-55		15	1500
FMC-5000	5000		11	0-55		22	1500
FMC-P-300	300	1.5		0-63
FMC-P-500	500	2.2		0-63
FMC-P-1000	1000	3		0-63
FMC-P-1500	1500	3		0-63
FMC-P-2000	2000	3		0-63
FMC-P-3000	3000	4		0-63
FMC-P-5000	5000	4		0-63
(The parameters are for reference only,the product depend on actual items.)

Above are our some vacuum emulsifying mixer technologe , The more details pls contact me in bwlow contact way
Mixing Tank Factory
Guangzhou Flk have 29years expenrience in making mixers , that we can provide best quality , competivity price , best service for you .
We have professinal team to design machine for you as your requipment , and with germany stronge technical .
Our Factory manufacturly liquid wash , shampoo , liquid soap , skin cream production line machine . Customer factory :
Mixing Tank Best service
1, Commissioning Services: During the time of installation and debugging, our engineers will not leave, until you are satisfied with the machine.
2, Training Services: Our engineer will train your staff installation and commissioning, operation during this period if necessary.And they will not be leave until your staff can operate properly.
3, Maintenance Services: As soon as we receive your inquiry about fault, we will reply you within 24 hours
4, Lifelong Services: We provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
5, Certificate Services: we can provide certificates to customers
6,Inspection Services: Accept the third party inspection company or inspectors check the products before shipment
7,File Services: we can supply Manual Specification,Operate Video and other files you need.
