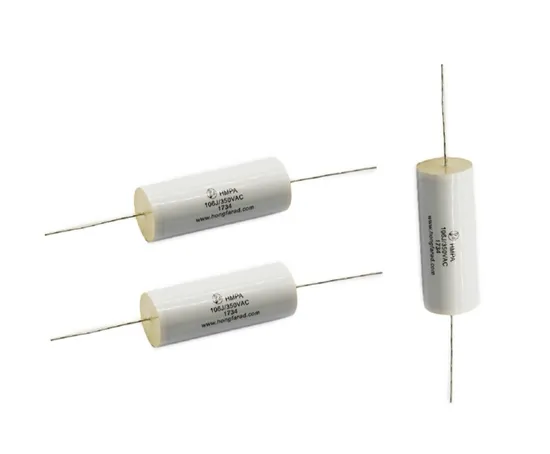

106K 350V, Audio Capacitor, MPa Cbb20 Metallized Polypropylene Film Capacitor
| US$0.0151-0.0175 | 5,000 Pieces (MOQ) |
Basic Info.
Model NO.
MPA CBB20
Packaging Type
Through Hole
Capacitance
0.001UF~15.0UF
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Electrolyte
Air Medium
Usage
High Frequency Coupling, High Frequency Bypass
Tuning
Polystyrene Capacitor
Filter
Paper Capacitor
Reference Standard
GB/T 10190 (IEC 60384-16)
Climatic Category
40/085/21
Rated Voltage
100V 250V 400V 630V
Transport Package
Standard Carton CTN Box (Loose in Bags)
Trademark
Hongfarad
Origin
China(Mainland)
HS Code
8532220000
Production Capacity
1000000
Product Description
106K 350V, Audio Capacitor, MPa Cbb20 Metallized Polypropylene Film Capacitor Product Description Features
1. Metallized polypropylene film, non-inductive type, axial
2. Excellent self-healing property
3. Wrapped with polyester adhesive tape and ends filled with flame retardant epoxy resin
Typical Applications
1. Temperature compensation circuits.
2. Timing, oscillator circuits.
3. Power factor correction and coupling capacitor in SMPS applications.
Specifications
| Reference Standard: | GB/T 10190 (IEC 60384-16) | |
| Climatic Category : | 40/085/21 | |
| Rated Temperature: | 85ºC | |
| Rated Voltage: | 100V,250V,400V,630V,1250V | |
| Capacitance Range: | 0.0010μF~15μF | |
| Capacitance Tolerance: | ±5%(J),±10%(K),±20%(M) | |
| Voltage Proof: | 1.6UR(5S) | |
| Dissipation Factor: | ≤10*10-4(1KHz,20ºC) | |
| Insulation Resistance: | ≥100 000MΩ, CN≤0.33μF ≥30 000S, CN>0.33μF (20ºC,100V,1min) | |
| Maximum Pulse Rise Time(dV/dt): If the working voltage (U) is lower than the rated voltage (UR), the capacitor can be worked at a higher dV/dt.In this case, the maximum allowed dV/dt is obtain by multiplying the right value with UR/U. | UR(V) | dV/dt(V/μS) | ||||||
| L=12.0 | L=14.5 | L=20.0 | L=27.5 | L=33.0 | L=41.5 | L=56.5 | ||
| 100/160 | 150 | 110 | 80 | 60 | 50 | 35 | 20 | |
| 250 | 300 | 220 | 150 | 110 | 90 | 60 | 30 | |
| 400 | 460 | 330 | 250 | 180 | 120 | 80 | 45 | |
| 630 | 600 | 440 | 300 | 220 | 150 | 100 | 60 | |
| 1000 | 800 | 550 | 400 | 300 | 200 | 150 | 80 | |
| 1250 | 1000 | 750 | 580 | 400 | 300 | 200 | 100 | |
Outline Drawing
Dimensions(mm)
| Rated Cap. | 100/250VDC | Rated Cap. | 400VDC | Rated Cap. | 630VDC | Rated Cap. | 1250VDC | |||||||
| OD | L | OD | L | OD | L | OD | L | |||||||
| max | max | max | max | max | max | max | max | |||||||
| 0.010uF | 5.5 | 14.0 | 0.010uF | 5.5 | 14.0 | 0.010uF | 5.5 | 14.0 | 0.010uF | 6.5 | 14.0 | |||
| 0.015uF | 5.5 | 14.0 | 0.015uF | 6.0 | 14.0 | 0.015uF | 6.0 | 14.0 | 0.015uF | 7.0 | 14.0 | |||
| 0.022uF | 6.0 | 14.0 | 0.022uF | 7.0 | 14.0 | 0.022uF | 7.0 | 14.0 | 0.022uF | 8.0 | 14.0 | |||
| 0.027uF | 6.0 | 14.0 | 0.027uF | 7.0 | 14.0 | 0.027uF | 7.0 | 14.0 | 0.027uF | 8.5 | 14.0 | |||
| 0.033uF | 6.0 | 14.0 | 0.033uF | 7.0 | 14.0 | 0.033uF | 7.5 | 14.0 | 0.033uF | 8.0 | 20.0 | |||
| 0.039uF | 6.0 | 14.0 | 0.039uF | 7.0 | 14.0 | 0.039uF | 7.5 | 14.0 | 0.039uF | 8.5 | 20.0 | |||
| 0.047uF | 6.0 | 14.0 | 0.047uF | 7.0 | 14.0 | 0.047uF | 8.0 | 14.0 | 0.047uF | 9.0 | 20.0 | |||
| 0.068uF | 6.5 | 14.0 | 0.068uF | 7.5 | 14.0 | 0.068uF | 8.0 | 20.0 | 0.068uF | 10.5 | 20.0 | |||
| 0.082uF | 6.5 | 14.0 | 0.082uF | 8.0 | 14.0 | 0.082uF | 8.5 | 20.0 | 0.082uF | 11.0 | 20.0 | |||
| 0.10uF | 7.0 | 14.0 | 0.10uF | 8.0 | 14.0 | 0.10uF | 9.0 | 20.0 | 0.10uF | 10.0 | 26.0 | |||
| 0.15uF | 8.0 | 14.0 | 0.15uF | 8.0 | 20.0 | 0.15uF | 10.0 | 20.0 | 0.15uF | 12.0 | 26.0 | |||
| 0.22uF | 7.5 | 20.0 | 0.22uF | 8.5 | 20.0 | 0.22uF | 10.0 | 26.0 | 0.22uF | 14.0 | 26.0 | |||
| 0.27uF | 8.0 | 20.0 | 0.27uF | 9.0 | 20.0 | 0.27uF | 11.0 | 26.0 | 0.27uF | 13.5 | 32.0 | |||
| 0.33uF | 8.5 | 20.0 | 0.33uF | 10.0 | 20.0 | 0.33uF | 11.5 | 26.0 | 0.33uF | 14.5 | 32.0 | |||
| 0.39uF | 8.0 | 26.0 | 0.39uF | 10.5 | 20.0 | 0.39uF | 12.5 | 26.0 | 0.39uF | 15.5 | 32.0 | |||
| 0.47uF | 8.5 | 26.0 | 0.47uF | 10.5 | 26.0 | 0.47uF | 13.5 | 26.0 | 0.47uF | 17.0 | 32.0 | |||
| 0.68uF | 9.5 | 26.0 | 0.68uF | 12.5 | 26.0 | 0.68uF | 14.0 | 32.0 | 0.68uF | 20.0 | 32.0 | |||
| 0.82uF | 10.0 | 26.0 | 0.82uF | 13.0 | 26.0 | 0.82uF | 15.0 | 32.0 | 0.82uF | 20.0 | 37.0 | |||
| 1.0uF | 9.5 | 32.0 | 1.0uF | 13.5 | 26.0 | 1.0uF | 16.5 | 32.0 | 1.0uF | 22.0 | 37.0 | |||
| 1.2uF | 10.0 | 32.0 | 1.2uF | 14.0 | 26.0 | 1.2uF | 18.0 | 32.0 | 1.2uF | 24.0 | 37.0 | |||
| 1.5uF | 11.0 | 32.0 | 1.5uF | 15.0 | 32.0 | 1.5uF | 20.0 | 32.0 | 1.5uF | 21.0 | 46.0 | |||
| 1.8uF | 12.0 | 32.0 | 1.8uF | 16.0 | 32.0 | 1.8uF | 21.5 | 32.0 | 1.8uF | 25.0 | 46.0 | |||
| 2.2uF | 13.0 | 32.0 | 2.2uF | 17.0 | 32.0 | 2.2uF | 21.5 | 37.0 | 2.2uF | 27.5 | 46.0 | |||
| 2.5uF | 13.5 | 32.0 | 2.5uF | 17.5 | 32.0 | 2.5uF | 23.0 | 37.0 | ||||||
| 2.7uF | 14.0 | 32.0 | 2.7uF | 18.0 | 32.0 | 2.7uF | 24.0 | 37.0 | ||||||
| 3.3uF | 15.0 | 32.0 | 3.3uF | 19.0 | 32.0 | 3.3uF | 22.5 | 46.0 | ||||||
| 3.6uF | 15.0 | 36.0 | 3.6uF | 20.0 | 32.0 | 3.6uF | 23.5 | 46.0 | ||||||
| 3.9uF | 15.5 | 36.0 | 3.9uF | 19.0 | 37.0 | 3.9uF | 24.5 | 46.0 | ||||||
| 4.7uF | 17.0 | 36.0 | 4.7uF | 20.5 | 37.0 | 4.7uF | 26.5 | 46.0 | ||||||
| 6.8uF | 18.0 | 36.0 | 5.6uF | 22.5 | 37.0 | |||||||||
| 8.2uF | 17.0 | 46.0 | 6.8uF | 23.0 | 37.0 | |||||||||
| 10.0uF | 18.5 | 46.0 | 8.2uF | 23.0 | 46.0 | |||||||||
| 15.0uF | 20.5 | 46.0 | 10.0uF | 25.0 | 46.0 | |||||||||
| For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability. For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability. | ||||||||||||||
