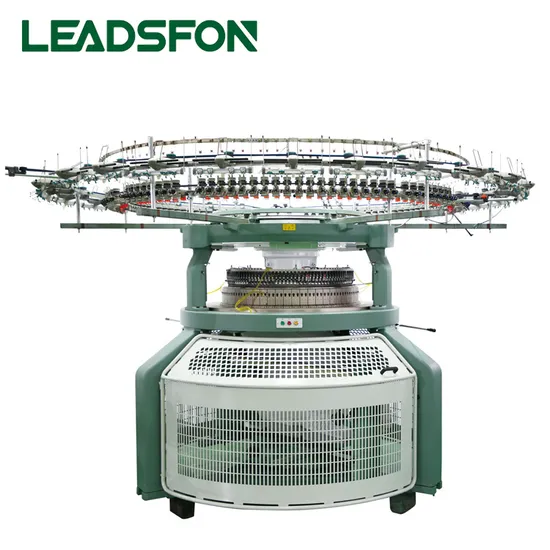

Leadsfon Fancy Yarn for Motorized Machinery Double Singer Semi Knitting Machine

Product Description

DJI 3.2 Highly productive basic Double Jersey
Product Features

1.High performance:Openwidth speed factor up to 850(25rpm at 34").
2.Self-made Take-down system.
3.Patterned double jersey frame system ,Higher fabric quality.
4.Three shafts transmission system.
5.Single adjusting key per feeder.
Product Advantages
1.Single adjusting key per feeder.
2.Three axis linkage transmission system, improve the reliability and durability of the transmission system, enhance the
stability of the machine and high speed dynamic accuracy of the machine.
3.The yard guide ring can be adjusted as a whole, and the yard guide can be adjusted separately.
4.The unique big tripod structure ensures the absolute engagement of the gears, and keeps the equipment stable and efficient.
5.Unique yarn feeding aluminum disc anti-slip setting, avoid parallel lines.
6.Independent patented take-down system.
7.Large pattern range with up to 4 needles tracks in cylinder cam and a wide gauge fabric.
8.Different frame types available for different production requirement.
Technical details

Type	DJI 3.2
Diameter [inch]	30" - 40"
No. Of feeders	98F - 128F [3.2 feeds per inch ](Example :34" 108F)
Speed factor [max]	850(Example : 25rpm at 34")

Available frames

Tubular frame		Open width frame
Standard tubular frame	Giant tubular frame	Standard Open width frame	Giant open width frame
Frame for 550 mm fabric rolls	Frame for 680mm fabric rolls	Frame for 330mm fabric rolls	Frame for 680mm fabric rolls

Q : Where are your factory locates? A : Our company is located in XIAMEN city, FUJIAN province. Q : Are all the main spare parts of the machine are produced by your company? A : Yes, all the main spare parts are produced by our company with the most advanced processing. Q : Will your machine be tested and adjusted before the machine delivery? A : Yes, we will test and adjust the machine before delivery, also if the customer has special fabric demand, we can knit and test it in the machine before machine delivery Q : Do you have after-sales service? A : Yes, We have excellent after-sales service, can give a quick response, support in Chinese, English, and Spanish. Video support is available. We have a training center in our factory. Q : How long does the warranty last? A : We offer a warranty for about one year after customers received our products. Q : What are the main applications for the fabrics produced by your machines? A : Fabrics knitted by our machines mainly can be used for Garments, Home textile ( like bedding sheet, mattress fabric, carpet), Sports fabric ( like Yoga fabric, diving fabric, sportswear ), Shoe fabric, and so on. Also for the jacquard machine, the pattern is easy to make by computer without limitation so the fabric can be widely used.
