Plastic Engine Fans for Large Diameter Drilling Machine

Product Description

What are some advantages of using axial fans in large diameter drilling machines?
High airflow rates at lower pressure: Axial fans are ideal for moving large volumes of air over a short distance, making them suitable for cooling high-power equipment like drilling machines.
Simple design and construction: They have fewer moving parts compared to other fan types, reducing maintenance requirements and increasing reliability.
Lower cost: The simpler design and manufacturing process result in lower production costs.
Product Description
P4Z/P5Z/P6Z
An axial fan, also known as a propeller fan or a blowers, moves air primarily along the rotor axis, perpendicular to the rotation plane. They are called "axial" because the air moves parallel to the shaft (axis) of the fan.
The P4Z/P5Z/P6Z series axial flow fans are available in a wide range of applications including HVAC, compressors and engine driven equipment. The blade size is designed to ensure that the flow rate of the airflow through the blade remains very uniform throughout the blade's surface to achieve optimum fan performance. The UTEK-DELE fan has the following advantages over a one-time injection or stamping fan:
/ More efficient
/ Less absorbed power
/ Low noise
Blade
The fan diameter ranges from 305 to 1343mm, and the blade twist angle can be adjusted from 20° to 50° to meet the different application requirements of the customer. The P4Z/P5Z blade is only the geometric enlargement of the P6Z, and the root design is identical. The root is locked in the fan hub by a steel fixing pin, which ensures that the blade will not be displaced after installation and the twist angle remains unchanged.Blades molded from high-strength thermoplastic materials or die-cast from aluminum alloys have the following advantages:
/ Light weight,high strength
/ Preservative
/ Customization
Product Details
Number of fans

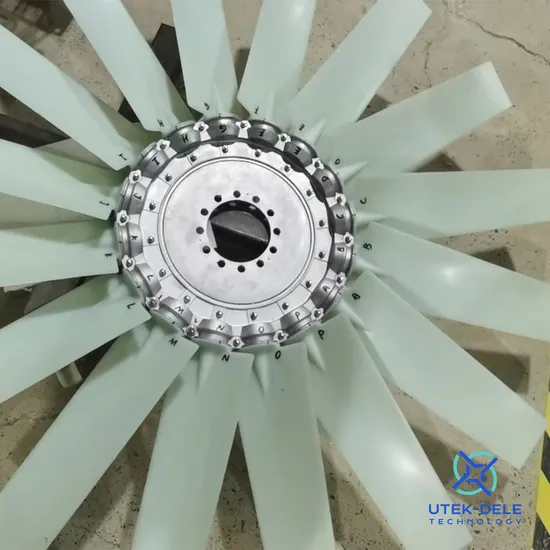

Z-type fans are available in six fan hub models, from 5 blades to 16 blades. This series of fan hubs are made of die-cast aluminum, so they are resistant to corros ion and high strength. In some cases, the number of blades assembled will be less than the maximum number of blades that can be installed. Columns such as 12 blades correspond to up to 12 blades in the Z-fan hub, but only 6 blades can be inserted. The remaining 6 blade root vacancies are inserted into a special insert.
We offer a wide range of bushings to meet the needs of a wide range of fan connections. For fans driven by hydraulic motors, the coupling shaft (conical or cylindrical) is generally small in size. We can provide forging and casting. Heat treated bushing.
The bushing diameter, the key and the optional
countersunk screw hole can be supplied according to the customer's design requirements. We can also provide the bushing directly processed from the bar according to the customer's requirements.

FAQ:
Q: Are almost all fans replaceable?
A: Yes
Q: Can they be fitted?
A: We can machine the connection holes and bushings, so they can definitely be fitted.
Q: Is it safe to use?
A: We will balance and match the angle to the power speed.
Q: Is it possible to replace only the blades?
A: No problem, the design is exactly the same
Product Parameters
Material of blade

Symbol	Material	Temperature range	Characteristic	Application
PA	Nylon6,Black	-40ºC-110ºC	Anti-aging	Standard load
PAG	Nylon6,Black and white	-40ºC-110ºC	Anti-aging	Heavy load
PAGST	Nylon6,Black	-40ºC-110ºC	Shock and impact	Strong vilbration occasion
PACAS	Nylon6,Blue-gray	-30ºC-100ºC	Conductivity Fire resistance	Explosive danger
ALU	Die-cast aluminum alloy	-40ºC-150ºC	Large temperature range	High temperature

Blade Diameter ran

Blade number	Fan diameter mm (Minimum-Maximum)
	P4Z	P5Z	P6Z
5	323-764	305-1035	339-1117
7	360-801	342-1072	376-1154
8	440-881	422-1152	456-1234
9	374-815	356-1086	390-1168
12	454-895	436-1166	479-1248
16	549-990	531-1261	565-1343

Packaging & Shipping

Company Profile
UTEK-DELE Technology Changzhou Co., Ltd is committed to provide tailor-made service to customers with various requirements, mainly including axial fan.
General items: Sales of fans and fans, sales of high-performance fiber and composite materials; Sales of metal matrix composites and ceramic matrix composites, sales of civil aviation materials, sales of new ceramic materials, sales of special ceramic products, sales of glass fiber reinforced plastic products, sales of synthetic materials, sales of graphite and carbon products, sales of glass fiber and products, sales of building waterproof coiled materials, sales of chemical products (excluding licensed chemical products), sales of special chemical products (excluding hazardous chemicals), Sales of instruments and meters, repair of instruments and meters, technology promotion and application services (in addition to projects that need to be approved according to law, independent business activities shall be carried out according to law with the business license)
UTEK-DELE has its own processing capabilities and can customise products for customers, as well as R&D production capabilities
Factory Show
Certifications
Partners
UTEK-DELE ADVANTAGE
1.Same quality as wingfan and multiwing
2.Software to design the model
3.Full sets of blade and hub
4.Fast delivery
Give us a chance, and we' ll return you with satisfaction.
