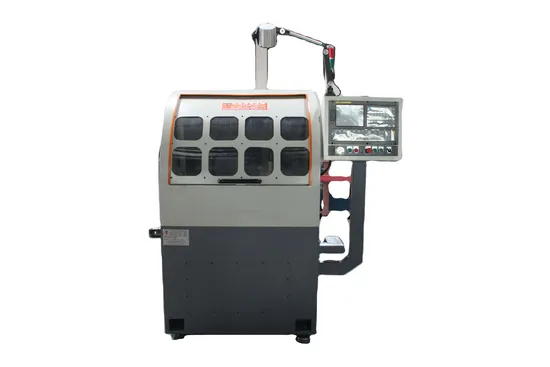

Circular Saw Blade Machine Gear Grinding Machine CNC Automatic Sharpening Machine

Circular Saw Blade Machine Gear Grinding Machine CNC Automatic Sharpening Machine

US$1,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Type
Tool Grinding Machine
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE
Condition
New
Max Blade
1m
Transport Package
Wooden Case
Specification
3500kg
Trademark
Yuetai
Origin
China

Packaging & Delivery

Package Size
150.00cm * 100.00cm * 170.00cm
Package Gross Weight
200.000kg

Product Description

Product Description
Detailed Photos

Product Parameters
Saw diameter 140~400mm
Bore diameter 15.88~80mm
Body thickness <8mm
Side relief 0°~4°
Side angle -5°~+5°
Hook angle -5°~+30°
Pitch <80mm
Tip length <20mm
Wheel power 0.75KW
Wheel diameter 80~120mm
Wheel speed 4800RPM
Wheel linear velocity 30m/s
Grinding speed 2mm~10mm/s
Processing efficiency 4~15tip/min
Grinding accuracy <0.02mm
Coolant tank 70L
Input voltage 380V 50Hz(OR 220V 60Hz)
Power Approx 3.7KW
Dimension 2800mm*1400mm*1900mm
Weight 2200kg
