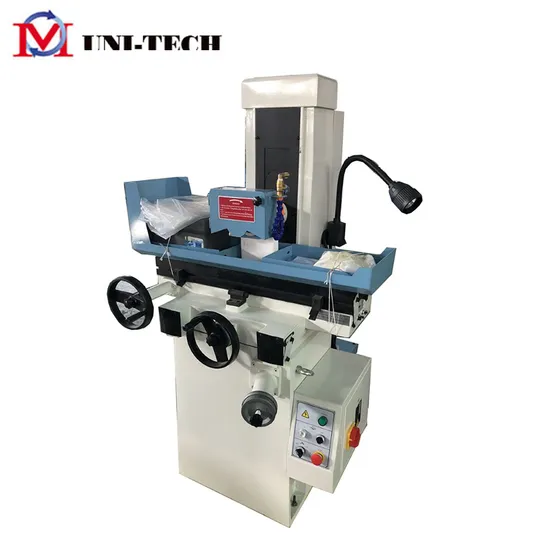

Manual Metal Precision Flat Table Moving Surface Grinding Machine
| US$2,058.00 | 3 Pieces (MOQ) |
Basic Info.
Model NO.
M618A
Type
Surface Grinding Machine
Processing Object
Metal Surface
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Surface Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Metal Manual Surface Grinding Machine
Table Size
460X180mm
Table Travel
500X190mm
Max.Distance From Spindle to Table
335mm
Table Slide Way
V-Type
Number of T-Slot
1X14
Wheel Speed
2850rpm
Wheel Size
180*13
Spindle Motor
1.1kw
Coolant Pump
0.4kw
Overall Size
1550X1150X1590mm
Transport Package
Wood Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
Shandong, China
HS Code
84601900
Production Capacity
100sets/Month
Product Description
manual metal Precision Flat table moving Surface Grinding MachineMain features:
1.Quality castings and Precision ball bearing supporting the spindle
2.Coolant system with nozzle and flow control valve
3.Cast iron machine body and stand for maximum rigidity and smooth operation
4.The machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.The machine is suitable for grinding without auto feed and is installed with permanent magnetic chuck or electromagnetic chuck according to customer's requirement.
5.Vertical dial graduations 0.01mm
6.Cross travel graduations 0.02mm
7.Manual one shot lubrication pump
8.Wheel balancing stand and arbor
9.Halogen work light
| Model | M618A | M820 | |||
| Working table | Table Size (L× W) | mm | 460×180 | 480x200 | |
| Max movement of working table(L× W) | mm | 500×190 | 530x220 | ||
| T -Slot number×width | mm | 1×14 | 1×14 | ||
| Grinding head | Max distance from spindle center to table surface | mm | 335 | 450 | |
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ180×13×Φ31.75 | φ200×20×Φ31.75 | ||
| Wheel speed | 50HZ | r/min | 2850 | 2850 | |
| Table slide -way | / | V-type rail with steel-ball | V-type rail with steel-ball | ||
| Feed amount | Vertical feed on handwheel | Per revolution | mm | 1.25 | 1.25 |
| Per graduation | mm | 0.01 | 0.01 | ||
| Cross feed on handwheel | Per revolution | mm | 2.5 | 2.5 | |
| Per graduation | mm | 0.02 | 0.02 | ||
| Motor power | Spindle motor | kw | 1.1 | 1.1 | |
| Coolant pump motor | kw | 0.4 | 0.4 | ||
| Weight | Net | kg | 650 | 700 | |
| Gross | kg | 750 | 800 | ||
| Overall dimension(L×W×H) | mm | 1550x1150x1590 | 1680x1140x1760 | ||
| Package dimension(L×W×H) | mm | 1000x1150x1760 | 1140x1250x1940 | ||
Standard accessories:
Tool box
Balancing stand balancing bar
Flange wrench
Screwdriver
Balancing screw
Open-end wrench
Inner hexagon spnner
Wheel dresser holder
Wheel dresser
Machine flange
Wheel flange
Chuck
Optional accessories:
1. Tilting permanent chuck
2. Demagnetizer
