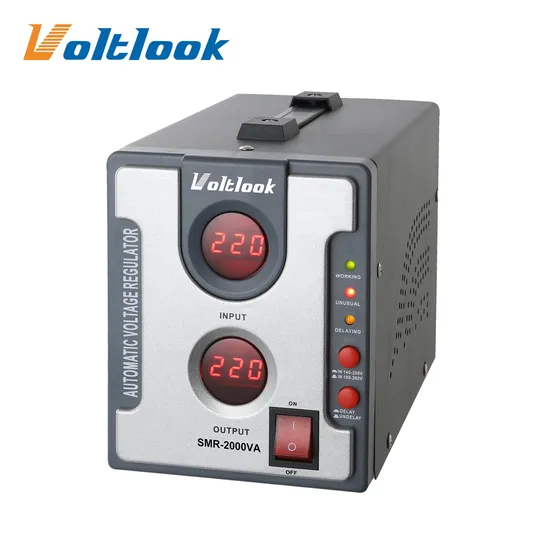

Akai Automatic Voltage Regulator 2000va Digital Meter Relay Type with USB

Product Description

Single Phase Relay Type Voltage Stabilizer with Digital and Analog meter Display
Features:
VOLTLOOK warranty policy is seamless and rich. Product assurance performance guaranteed. This AVR-series has adopted the advanced control technology made with reliable components. It is a new type of AC automatic regulator with fully automatic control system. It has an advanced feature of producing output voltage in a separate socket of 110volts. It also has wide input voltage range from 100v to 260v, high reliability, more stabilized output voltage, energy saving, etc.
It can supply stabilized power to lights, TVs, 1HP Air conditioner, refrigerators or freezers, computers and duplicating machines and other household equipment; Schools, Offices, Hotels, etc. Power to protect redefined. A sure buy guarantees your protection. 2000VA or 2kva (2000watts) Power Wide input voltage range (100V - 260V) Delayed on/off Output Voltage 220v and 110v (separate socket) International socket Digital Leg colour Display Replaceable fuse protection Overload protection Low voltage superior Control Cooling Fan optional USB Charger optional TECHNICAL DETAILS (500VA 1000VA 1500VA 2000VA 3000VA 5000VA 10000VA)
INPUT
Phase: Single phase Voltage Range: 100VAC-260VAC OUTPUT
Voltage Range: 200-240V (Empty load) USB Charger optional Frequency: 50/60Hz Over voltage protection: 250V+5V (Over voltage indicator lights without output Under-voltage protection: 100V+5V (Under-voltage indicator lights without output)(not applicable to super low options) SYSTEM
Efficiency: 95% Display Mode: LED indicator light; Pointer voltmeter/LCD display Input/Output setting: Plug/Socket Wave Distortion: No additional waveform distortion Insulation Resistance: >2M Dielectric Strength: Low frequency sine voltage 1500V for 1 minute (without phenomena of breakdown and flashover) Ambient Temperature: -10 degree C - 40 degree C Relative Humidity: 95% Working: continuous Specifications:

Model		SMR 500VA	SMR 1000VA	SMR 1500VA	SMR 2000VA	SMR 3000VA	SMR 5000VA	SMR 8000VA	SMR 10000VA
Power		500VA	1000VA	1500VA	2000VA	3000VA	5000VA	8000VA	10000VA
Technology		Fully automatic MCU controlled circuit + Toroidal transformer or EI transformer
Transformer		Relay type
Input	Input voltage range	160-260V AC / 140-260V AC / 100-260V AC
	Input frequency	50/60Hz
Output	Output voltage	220V AC / 220V+110V
	Output precision	± 10%; ± 8%
Delay Time		6s /180s selectable
Efficiency		≥95%
Phase		Single phase
Display	Analog meter	output voltage
	Icon display	Working, delaying, overload, over voltage, under voltage
Protection	High voltage	Output cutoff + working icon flashes
	Low voltage	Output cutoff + low-volt icon flashes
	Over load	Output cutoff + over-load icon flashes
	High temperature	Output cutoff at temperature 115ºC
	Short circuit	Circuit breaker trip off
Cooling system		Air Cooled				Smart Fan (Automatic Startup at 65°C)
Safety standards		CE (LVD + EMC) , EN60950, EN55024
Operating conditions	Operating temperature	-5ºC - 45ºC
	Stroage temperature	-15ºC - 45ºC
	Operating relative humidity	10%RH - 90%RH, Non-condensing

Applications: Home Appliances Computer Office equipment Test equipment Light system Safety alarm system Medical equipment Copy machine Numerical control machine tools Industrial automation equipment Color and drying equipment Hi-Fi equipment Pick Up from 100V For AC up to 1.5HP and 3HP Overload and Overheat Protection Stabilize and maximize your AC's efficiency Very Durable Automatic Voltage Regulator
