Window Making Machine of CNC Drilling Milling Machine for Aluminum Profile

Product Description

Jinan SETH Intelligent Equipment Co.,Ltd.
Product Description

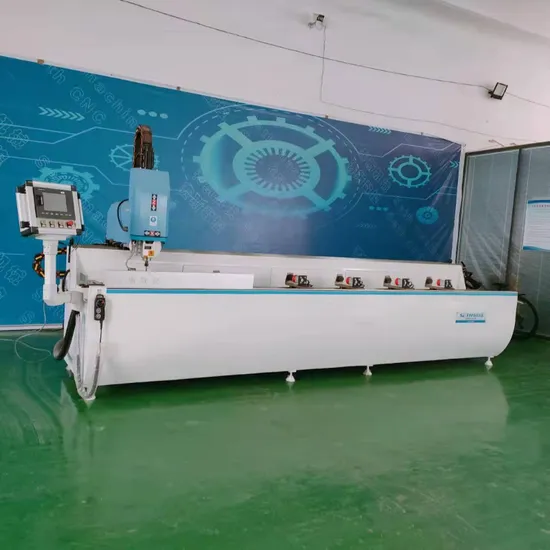

CNC drilling milling machine for Aluminum profile
Features:
1.This machine is designed for processing round holes, slots, keyhole etc
on aluminum profile, window-door and curtain wall industry, it is also
suitable for processing milling, chamfering,engraving plane surface and
other procedure.
2.Main spindle adopt air-cooling electric main axis, 3kW power, 0~18000r/min , have the function of high precision, high safety and high reliable.
3.Adopt Taiwan SYNTEC CNC control system. Have professional CADCAM programming software. It can transform processing G code automatically, have the function of easy operation, high efficiency and lower labor intensity.
4. Imported guide rail, sliding block, X axis adopt high precision oblique
gear and rack driving. Y and Z axis adopts high precision ball screw drive.
5. The drive is stable, so can improve the precision of whole machine.
6. The worktable can overturn 180°-90°~0°~+90°, Clamping one time
profile can realize three faces processing, When processing deeply
hole (hetero type hole ), it can realize deeply hole processing through
overturn worktable, so can highly improve processing efficiency.
7. Electric pump oil supply system is adopted, and spray cooling device
controlled by system is adopted for cutting tools.
8. The main electrical parts: circuit breakers, AC contactor are allSchneider Electric
9. The main components adopt steel structure and they are all through
aging treatment.
Main parameters:

Power supply	380V 50Hz
Total power	6.5 Kw
Main shaft power	S1:3.5kw
Working pressure	0.6~0.8 MPa
Maximum speed	18000rpm
X axis travel	3000mm
Y axis travel	500mm
Z axis travel	350 mm
X axis velocity	50000 mm/min
Y axis, Z axis velocity	15,000 mm/min
Dimensions	4180x1600x2200mm
Weight	About 1600 kg

Detailed Photos
Hot sale products

Packaging & Shipping
Company Profile
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
The company has all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize the design of equipment, processing, assembly, test one-stop flow operation, to ensure the excellent quality of equipment.
our main products including aluminum&uPVC profile machining center, saw machine ,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle, Please join hands with SETH to lead intelligence.
