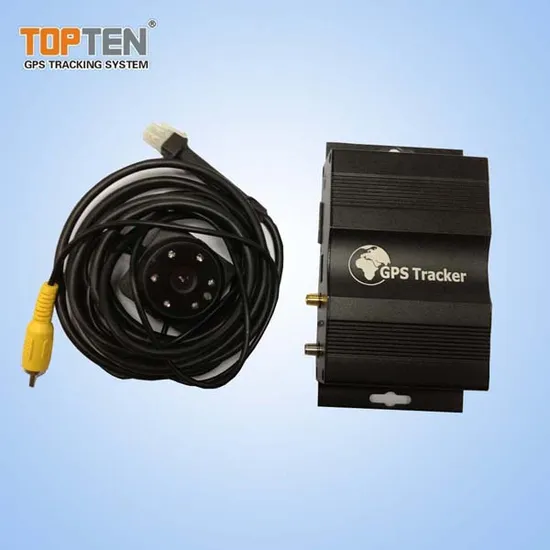

Fleet Management GPS Tracker with Fuel Sensor and Camera (TK510-TN)

Product Description

Vehicle Fleet GPS tracking device RFID&Camera for car truck suport fuel sensor, fuel loss alarm (TK510-TN)
Unique features:
Smart engine ON/OFF status detection without ACC connection;
Multi I/O, support fuel sensor & temp. sensor, fuel-loss alarm;
Support two-way talking function; USB parameter configuration;
Support 2.4G RFID tag, wireless immobilizer & Mifare-I IC card;
Support snapping picture via MMS or platform;
Track by distance;
Fatigue driving alarm & crash alarm; Speed limiter;
Multi-language SMS contents; Lock/Unlock the car door;
Features & Functions
1. GPS tracker + RFID Car alarm with long-distance tag;
2. Active RFID Driver ID identification(optional)
3. Track on command or by time interval or by distance;
4. Arm/disarm by SMS, phone call;
5. Arm/disarm automatically by 2.4G RFID tag(optional);
6. Check the cars real physical address (such as city name, street name..);
7. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
8. Check the location directly by the Google maps URL;
9. Over-speed alert, Geo-fence alert, movement alarm;
10. Snap photo and send out via MMS &Email when there is SOS alarm, ACC On alarm or door open alarm, snap the photo via platform;
11. Speed limiter, when the speed is over limitation, the siren will sound to warn driver & relay will response to slow down the car automatically;
12. Crash alarm, when there is crash & it can detect it automatically;
13. Fatigue driving alarm, if continuous driving time is over the limitation, the siren will sound to warn the driver;
14. Check the coordinates via LBS, even there is no any GPS signal..
15. Support voice monitoring & 2-way talking;
16. Cut off engine to stop the car safely by SMS/GPRS;
17. Built-in shock sensor for power saving & triggering alarm
18. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alert immediately.
19. SOS alarm & anti-tamper alarm, once the wiring harness is disconnected, it will trigger this alarm;
20. Support analog input for fuel monitoring or temperature monitoring, fuel loss alarm;
21. I/O: 5 digital inputs, 2 analog inputs & 5 digital outputs(2 impulse outputs);
22. Lock/unlock the car door remotely by SMS/platform or automatically according to the status of arm/disarm;
23. Wide working voltage range, from 6V-45VDC, suitable for car or big truck.
24. There are 3 types of working mode for power saving flexibly.
25. 8M-bit offline data logger, it can store up to 9,090 waypoints.
26. SMS content in multi-languages(English, Arabic, Spanish, Portuguese).
Tracking platform:
How to solve fleet issues ?
*Use fuel sensor to avoid fuel stolen
*Set speed limiter to control over-speed
*Fatigue driving alarm to warn driver
*Use RFID as driver ID for attendance
*Camera can photo inside vehicle to check driver safety or work
*Two way talking Geo -fence ;
*Geo-fence,to make vehicle work in certain area
