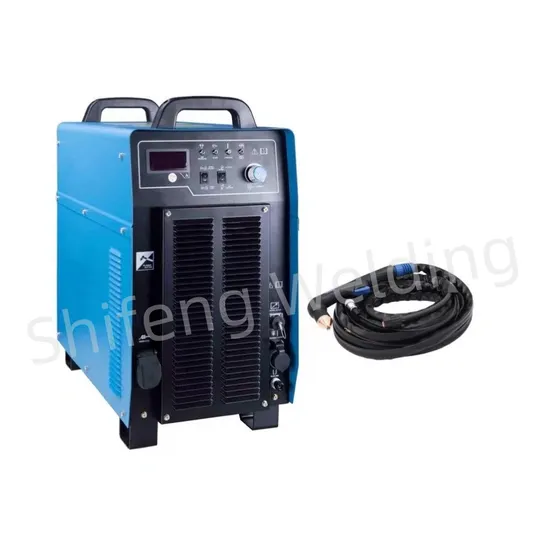

Industrial Portable CNC Inverter Air Plasma Cutting Machine Lgk-120IGBT for Metal Cutting

Product Description

Product Description

Main feature
High load duration, suitable for heavy industry
Cutting current slow rise technology, reduce the cutting torch accessories consumption
With wide network voltage adaptability
Scientific dustproof design, high reliability of the whole machine
Compact structure, small size, light weight, can be installed on CNC machine tools
Accurate preset cutting current, stepless adjustable
It has the function of plasma gas pressure detection and indication
With the ability to test Qigong, easy to adjust the air pressure
It has the automatic protection function of overheating, overvoltage and undervoltage
Product application
It is mainly used for manual and machine cutting of carbon steel, alloy steel, non-ferrous metals and other metal materials
It is widely used in boiler chemical industry, pressure vessel production, industrial power plant installation, metallurgical construction, chemical construction, aerospace industry, automobile manufacturing and maintenance, building decoration and other industries involving metal cutting
Main technical parameters

Project name	unit	Model number
		LGK-63IGBT	LGK-120IGBT		LGK-160IGBT	LGK-200IGBT
Input power supply	V/Hz	3~380±15% 50/60
Rated input capacity	KVA	9.5	22.4		32.2	46.7
Rated input current	A	14.5	34		49	71
Rated output current	A	63	120		160	200
Rated output voltage	V	106	128		144	160
Rated no-load voltage	V	300	300		315	315
Duration of rated load	-	60% (40ºC)	100% (40ºC)
Output current adjustment range	A	30~63	30~120		40~160	40~200
Arc voltage output signal ratio	-	1:1/1:20/1:50/1:100
Mass cutting capability (Carbon steel)	mm	15	25		30	35
Cutting capacity (carbon steel)	mm	25	45		60	65
Plasma gas	-	Compressed air
Gas supply pressure	MPa	0.3~0.5	0.4~0.6
Cutting torch cooling method	-	Air cooling		Air cooling, water cooling
Power cooling system	-	Air cooling
Insulation class	-	Grade F
Case protection class	-	IP21S
Overall dimensions (L × W × H)	mm	585*280*485	675*320*605		800*380*650	800*380*810
Net power weight	kg	26	46		65	82
