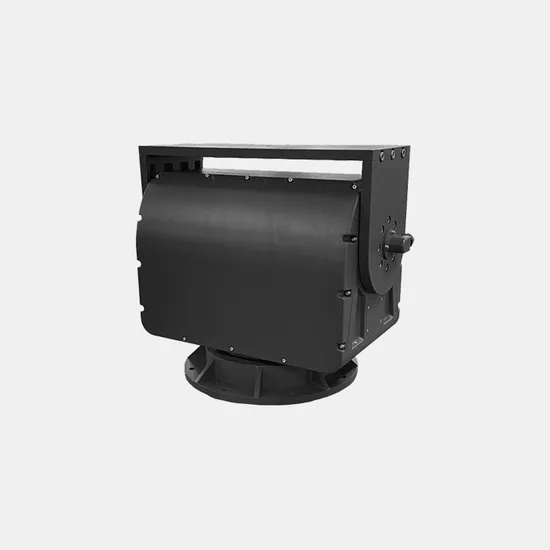

Pantilt Heavy-Duty Intelligent Variable Speed Pan/Tilt

Product Description

Product Description Key Features
1) Max Load: 5kg/10kg/15kg/20kg/50kg
2) Support kinds of Lens preset function
3) Pan tilt speed can reach up to 60º/s
4) High resetting accuracy, up to ±0.1º
5) Adopt die-cast aluminum alloy material
6) Adopt high-precision, high-strength gear-driven, self-locked when power is off
7) Pan angle:0º~360ºcontinuous
8) Protection Class: IP66 to IP67
9) Optional function: returning data of pan tilt position, focal length, focus etc
Product Parameters

Rotation Angle	Pan:0º~360º continuous, Tilt: +20º~-60º
Number of Presets	200
Preset Positioning Accuracy	±0.1º
Optional function	Pan tilt position data, focal length etc.
Auxiliary Switch	2 groups
Lens Preset	Support,with self-adaptive function
Lens control speed	Speed of zoom/focus can be adjustable continuously
Auto Cruising	8 tracks( each with 10 presets)
Homing	It can be set up within the scope of 1~60 min
Auto Scan	1 path
Protocol	Pelco-D/P
Baud Rate	2400/4800/9600/19200bps
Interface	RS485, supporting angle query returns( Or RS422, real-time returns)
Input Voltage	AC24V±20%,50/60HZ;DC28V±20%
Power Consumption	≤70W
Operation Temperature	Temp:-25~+65 celcius,Humidity:90%±3% RH; without condensation(-40~+65 celcius)
Storage Temperature	-40~+70 celcius
Max Load	5kg/10kg/20kg/50kg
Load Mode	Top-mounted/side-mounted
Driven	Worm gear driven
Protection Class	IP66
Weight	12.5 kg
Dimensions	265mm*180mm*315mm(L*W*H)

Detailed Photos Packaging & Shipping
>>> PackageStandard Wooden or Carton cases >>> Delivery 7-20 days after the order is confirmed, delivery details should be decided according to production season and order quantity.
