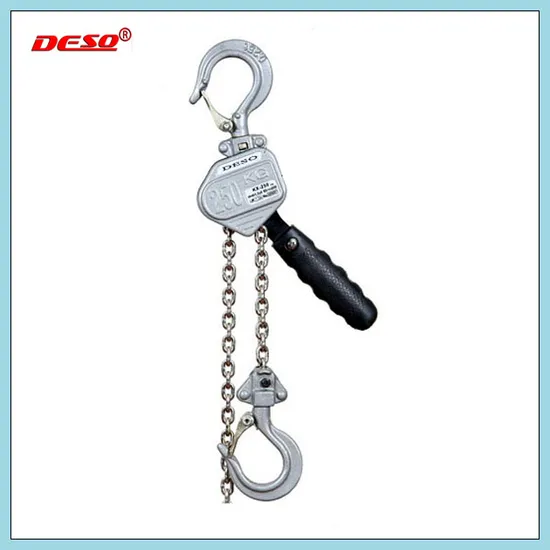

Aluminum Hand Lever Alloy Chain Block / Hoist
| US$25.00-300.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
V type
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
20m
Chain Falls
1/2/3
Certification
CE
Condition
New
Color
Yellow
Transport Package
Carton or Wooden Box
Specification
0.75/1/1.5/2/3/6/9Ton
Trademark
DESO
Origin
China Mainland
HS Code
84251900
Production Capacity
50000PCS/Year
Product Description
Aluminum Lever Block / HoistRolled-edge hand wheel cover provides smooth operation of the hand chain when pulled sideways.
Strong and least-corrosive electrostatic powder painting.
Wet friction discs with longer lift span.
Unique chain guide.
Wider opening hooks of easier handling shape.
Tough froming: The tough gear casing, reinforced with four ribs and four knock pins, provides accurate gear centering and high mechanical efficiency.
Standard of load chain: EN818-7.
| Capacity (t) | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 | |
| Lift (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Test load (t) | 1.1 | 1.5 | 2.25 | 3 | 3.75 | 7.5 | 11.25 | |
| Pull to lift full load (N) | 145 | 150 | 200 | 200 | 280 | 310 | 320 | |
| Number of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Load chain dia (mm) | 6 | 6 | 7.1 | 8 | 10 | 10 | 10 | |
| Dimensions (mm) | A | 155 | 155 | 165 | 165 | 185 | 195 | 195 |
| B | 60 | 60 | 65 | 65 | 85 | 85 | 85 | |
| C | 135 | 135 | 145 | 145 | 195 | 250 | 335 | |
| D | 40 | 40 | 46 | 46 | 50 | 64 | 85 | |
| K | 24 | 24 | 31 | 31 | 34 | 43 | 55 | |
| H | 300 | 300 | 365 | 365 | 440 | 575 | 700 | |
| L | 255 | 255 | 365 | 365 | 365 | 365 | 365 | |
| Net weight (kg) | 7 | 7 | 10 | 12 | 18 | 28.5 | 45 | |
| Weight of extra chain each metre (kg) | 0.8 | 0.8 | 1.1 | 1.4 | 2.2 | 4.4 | 6.6 | |
If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
