600*300mm 3060ahr High Percision Artificial Manual Handwheel Feed High Speed Moving From up to Down Grinder with 3 Axis Control Surface Grinder Grinding Machine

Product Description

Product Description
AH : Experience seamless precision with our AH model, featuring automated control over the front/back, left/right, and up/down axes. The up/down feed is manually adjustable, offering unparalleled ease of operation and customization to meet specific work requirements.
AHD : Elevate your grinding capabilities with our AHD model, which fully automates the front, back, left, right, and up/down axes. The up/down feed is pre-settable with adjustable feed volumes and feed times, and the machine halts automatically upon task completion, ensuring precision and efficiency.
Highly rigid casting body
Our machine's robust structure features high-grade cast iron for the main body, table, slide, column, and head. Utilizing finite element analysis, we achieve engineering-grade rigidity and quality. Post-production stress treatments eliminate internal stresses, ensuring long-term deformation-free performance. The exceptional bending and torsion resistance further guarantees high precision in research and cutting applications over extended periods.
Fully-supported table hard-rail structure
Engineered for excellence, the table features a fully-supported hard-rail structure complemented by Turcite-B and manual scraping. This innovative design minimizes the damping coefficient under load, ensuring smooth table operation and maintaining grinding accuracy.
Independent Hydraulic System
Our independent hydraulic system, driven by a single-cylinder, offers adjustable speeds from 5-25m/min with minimal vibration. This versatile design is suitable for various machining purposes. Premium Japanese oil seals enhance smooth sliding and extend service life.
High Precision Spindle
Crafted entirely in-house at our Jiande, Taiwan factory, each spindle undergoes meticulous production processes, from raw material handling to final assembly in controlled environments. Utilizing CP4 grade precision angled ball bearings, V3 grade low vibration motors, and dynamic balancing, our spindles deliver ultra-low deflection (<0.002mm), minimal noise, and no vibration-ensuring many years of flawless service.
Automatic Lubrication System
Our advanced circulating center lubrication system ensures optimal lubrication for all transmission screws and sliding surfaces. The system recycles and filters waste oil, promoting environmental sustainability and reducing lubrication oil expenses. Equipped with a self-checking function, it alerts you when oil levels are low, maintaining efficient operation.
Electrical control system
Designed to meet stringent CE safety standards, our electrical control system uses internationally renowned components for reliable operation. It ensures low noise and vibration, providing a stable platform for high-precision grinding.
Graphic Operator Panel
The ergonomically designed, fixed operation panel centralizes all controls, offering intuitive, graphical functions that are easy to understand and operate, streamlining your workflow.
Splash-proof wall panel (optional accessory)
Enhance machine cleanliness and longevity with our optional splash-proof wall panel. This accessory prevents grinding water and iron chips from contaminating the rear and slide rails, ensuring sustained machine precision and cleanliness.

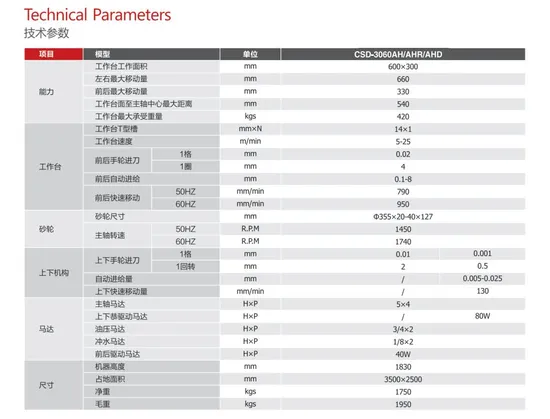

PRODUCT SPECIFICATION

Mountings	Specifications		Unit	CSD-3060AH/ AHR/ AHD
Ability	Table Dimensions		mm	600×300
	Maximum forward and backward movement		mm	660
	Maximum left-right movement		mm	330
	Distance between spindle center and work surface		mm	540
	Maximum bearing weight of working table		kgs	420
Work Table	Table T-slots		mm×N	14×1
	Table speed		m/min	5-25
	Front and rear handwheel feed	a check	mm	0.02
		a round	mm	4
	Auto-supplying from front to back		mm	0.1-8
	High speed moving from frong toback	50HZ	m/min	790
		60HZ	m/min	950
Grinding Wheel	Grinding Wheel Size		mm	Φ355×20-40×127
	Speed of mainshaft	50HZ	R.P.M	1450
		60HZ	R.P.M	1740
Upper and lower mechanism	Up& down handwheel feed	a check	mm	0.01	0.001
		a turing round	mm	2	0.5
	Auto-supplying volumn		mm	/	0.005-0.025
	High-speed moving dimension from up to down		mm/min	/	130
Motor	Spindle motor		H×P	5×4
	Drive motor up and down		H×P	/	80W
	Drive motor up and down		H×P	3/4×2
	Vacuum motor		H×P	1/8×2
	Back and front driving motor		H×P	40
Machine Size	Mechanical height		mm	1830
	Occupied area		mm	3500×2500
	Net weight		kgs	1750
	Gross Weight		kgs	1950
