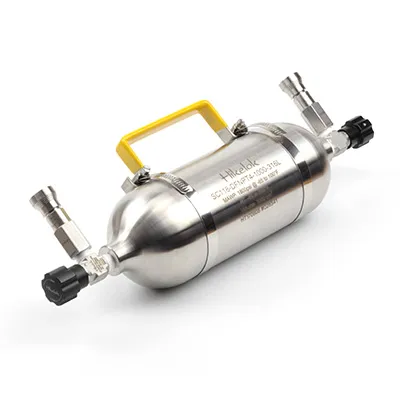

Swagelok Type Gas Single Double Ended Stainless Stee Mini Gas Cylinder
| US$30.00-400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SC
Application
Gas
Material
Stainless Steel
Pressure
10.0MPa≤p<100.0MPa
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Condition
New
Product Name
Sample Cylinder
Working Pressure
500 Psig / 1800 Psig / 5000 Psig
End Connection
Female NPT
Inlet Size
1/8′′ to 1/2′′
Internal Volume
40 Ml to 3785 Ml
Body Material
304 316 Stainless Steel
MOQ
1 Piece
OEM
Available
Transport Package
Plastic Bag Inside, Carton Outside
Specification
1/8′′ to 1/2′′
Trademark
Hikelok
Origin
China
HS Code
7311009000
Production Capacity
1000/Month
Product Description
Sample CylindersFeatures
* Working pressure up to 5000 psig (344 bar)
* Internal volume from 40 to 3785 cm³
* Single-ended and double-ended
* Seamless tubing body provides consistent wall thickness, size and capacity
* Heavey wall end connections provide strength and resist flaring
* 316L and 304L and alloy 400 stainless steel materials available
| Materials Grade/Cylinder Specification | Working pressure, psig (bar) | Internal Volume cm³± 5% | P-Female NPT | Dimension,in.(mm) | |||
| D | L | Minimum wall thickness | Weight lb(kg) | ||||
| Single-Ended | |||||||
| 304L S.S. | 500(34.4) | 150 | 1/4 | 2.00(50.8) | 4.88(124) | 0.093(2.4) | 1.1(0.50) |
| 300 | 8.62(219) | 1.80(0.82) | |||||
| 500 | 13.6(330) | 2.70(1.23) | |||||
| Double-Ended | |||||||
| 304L S.S. | 1800(124) | 40 | 1/8 | 1.25(31.8) | 3.88(98.6) | 0.070(1.8) | 0.31(0.14) |
| 50 | 1/4 | 1.50(38.1) | 3.75(95.2) | 0.093(2.4) | 0.38(0.17) | ||
| 75 | 4.94(125) | 0.62(0.28) | |||||
| 150 | 1/4 | 2.00(50.8) | 5.25(133) | 0.94(0.43) | |||
| 300 | 8.94(227) | 1.80(0.82) | |||||
| 400 | 11.4(290) | 2.10(0.95) | |||||
| 500 | 13.8(351) | 2.60(1.18) | |||||
| 304L S.S. | 1800(124) | 1000 | 1/4 or 1/2 | 3.50(88.9) | 10.9(277) | 0.180(4.6) | 6.50(2.90) |
| 2250 | 4.00(102) | 17.2(437) | 0.206(5.2) | 14.00(6.40) | |||
| 3785(1gal) | 26.7(678) | 21.00(9.50) | |||||
| 316L S.S | 1800(124) | 150 | 1/4 | 2.00(50.8) | 5.25(133) | 0.093(2.4) | 0.94(0.43) |
| 300 | 8.94(227) | 1.80(0.82) | |||||
| 500 | 13.8(351) | 2.60(1.20) | |||||
| 316L S.S | 5000(344) | 150 | 1/4 or 1/2 | 1.90(48.2) | 8.00(203) | 0.240(6.1) | 3.00(1.40) |
| 300 | 14.5(368) | 5.60(2.50) | |||||
| 500 | 23.5(597) | 9.10(4.10) | |||||
| Alloy 400 | 1800(124) | 150 | 1/4 | 2.00(50.8) | 5.25(133) | 0.093(2.4) | 0.94(0.43) |
| 300 | 8.94(227) | 1.80(0.82) | |||||
| 500 | 13.8(351) | 2.90(1.3) | |||||
Single-Ended Cylinders
| Configurations | |
| Volume | 150, 300 and 500 cm³ volume meet a variety of sampling needs |
| Body Material | 316L S.S 304L S.S Alloy 400 |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
| Configurations | |
| Volume | From 40 to 3785 cm³(1 gal) |
| Body Material | 316L S.S 304L S.S Alloy 400 |
| Cleaning Process | Standard Cleaning and Packaging (CP-01) |
