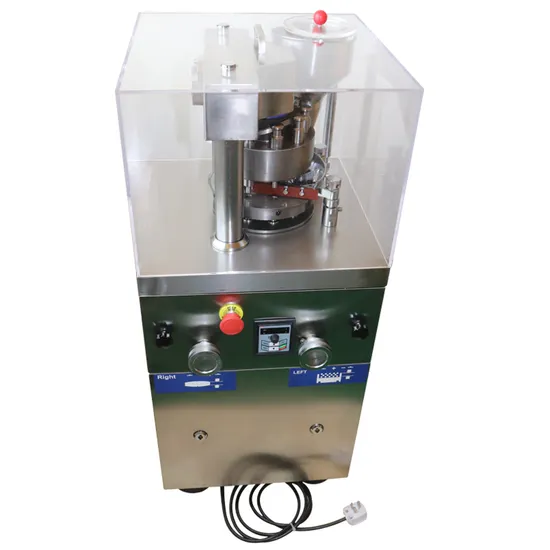

Zp-7 40kn Pressure Desktop Small Rotary Tablet Making Machine

Product Description

ZP-7 40KN Pressure Desktop Small Rotary Tablet Making Machine Product Name: Automatic Small Rotary Tablet Press Machine
Model: ZP-7A
Max. Tablet Thickness(mm): 6MM
Max. Tablet Diameter(mm): 12MM
Capacity (pcs/h): 12600 pieces/h
Station (Set): 7 Sets
Max. Pressure(KN): 40kN
Motor Voltage: 220V or 110v
Weight (KG): 230 KG
Power (kW): 1.5 KW
This machine is a new type of 7-punch Rotary tablet press, which is a single-press automatic rotating, continuous tableting machine, which compresses granular raw materials into various tablets.
This machine is suitable for use in hospitals, medical research institutes, laboratories, universities, small pharmaceutical factories and health care plants, and is well received by customers Favor.
ZP-7 Small Rotary Pill Press Machine ( Classic Version ) Technical Parameters

Model	ZP-5A	ZP-7A	ZP-9A	ZP-11A	ZP-12A
Number of die (paid)	5	7	9	11	12
Maximum tablet pressure (kN)	40	40	40	40	40
Maximum tablet diameter (mm)	12mm
Maximum filling depth (mm)	15	15	15	15	15
Maximum tablet thickness (mm)	6	6	6	6	6
Turntable speed (rev/min)	30	30	30	30	30
Production capacity (pieces/hour)	9000	12600	16200	19800	21600
Motor power (kw)	1.5kw
Dimensions (mm)	615*610*1200mm
Host weight (kg)	230kg

There are 5 popular ZP small rotary tablet press machine with 4 ton pressure, which share the same technical, we can say they are the same machine ;
Their difference is the quantity of punching dies, which make them has different production ability per hour :
ZP5A means it has 5 punching dies
ZP7A means it has 7 punching dies
ZP9A means it has 9 punching dies
ZP11A means it has 11 punching dies
ZP12A means it has 12 punching dies
ZP-7 Small Rotary Pill Press Machine ( Classic Version ) Molds
€ The machine comes with a round circular mold, you can choose one from the size 6, 8, 10, and 12mm diameter.
€ If you don't want to choose, the standard model with the machine is 8mm size.
€ And we also can supply with custom molds for ZP pill press machine.
ZP-7 Small Rotary Pill Press Machine ( Classic Version ) Charateristics
1. This machine is a single-press automatic rotating, continuous tableting machine, which compresses granular raw materials into various tablets. It is mainly used in the production of tablets in the pharmaceutical industry, as well as in the chemical, food, and electronics industries.
2. The outer shell is a fully enclosed form, the material is stainless steel, and the internal table is made of stainless steel.
3. The surface of the turntable has been specially treated to maintain the surface gloss and prevent cross-contamination, which meets GMP requirements.
4. The doors and windows equipped with transparent glass can clearly observe the state of the pressing, and can be fully opened, which is easy for internal cleaning and maintenance.
5. All controllers and operating parts are reasonably arranged. The frequency conversion speed control device is used for electrical speed control, which is convenient to operate, stable in rotation, safe and accurate.
ZP-7 Small Rotary Pill Press Machine ( Classic Version ) Shipping This ZP-7 machine is generally divided into different parts and then ship to you if you don't mind

1. we will use strong wooden cases to pack them in order to make sure they are completely protected perfectly . 2. we will check the tablet press machine to be good condition, and made small adjustment to make sure you can use the machine smoothly once you receive it, no need for our customers to make adjustments again .
ZP-7 Small Rotary Pill Press Machine ( Classic Version ) Shipping Time
→You can receive parcel photos and video from us within 24 hours ;
→You can receive your parcels in 35-45 days in general for most countries
Other ZP Machines Choice
Feel free to contact us if you need to know the prices of the below tablet press machines ;

Feel free to contact us if you need to know how we ship tablet press machine smoothly ;

Feel free to contact us if you need to see the photos and videos of the Machine you are interested .

ZP Model	ZP-5, 7, 9, 11, 12A	ZP-5, 7, 9, 11, 12B	ZP-5, 7, 9, 11, 12C
Punching Quantity	5-7-9-11-12	5-7-9-11-12	5-7-9-11-12
Max Pressure (KN)	40	60	60
Adjustable Tablet Diameter (mm)	6 - 12mm	6mm - 18mm	6mm - 18mm
Adjustable Filling Depth (mm)	15	15	15mm
Adjustable Tablet Thickness (mm)	2-6mm	2-6mm	2-6mm
Rotary Speed (RPM)	30	30	30
Production Ability (piece/hour)	-	-	-
Motor Power (kw)	1.5	2.2	2.2
Dimensions (mm)	940*630*1130mm	960*660*1300mm	960*660*1300mm
Weight (kg)	210	320	320

Finished Tablet Shapes From ZP Series Tablet Machine :
This machine is an amazing product, and this machine is a single Roller continuous automatic tablet press for pressing various kinds of different shape tablets and plain tablets It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
1.Pharmaceutical:Chinese tablets,Western medicine,plain films,chewable tablet,calcium tablet,spirulina tablet,effervescent tablet pioneer,camphor ball etc.
2.Foodstuff:candy pieces,flake coffee,chicken essence chunk,seasoning chunk,glucose tablet,milk powder candy etc,.
3.Agriculture:wafered feed,fertilizer chunk,animal food etc,.
4.Chemical:bleaching powder,ceramic powder, powder metallurgy,magnetic materials, antiseptic,powdered carbon molecular sieve etc,.
5.Electronic:carbon brush,button cell,electronic component etc.
FAQ ( Freely Asked Questions )
Q: What's your MOQ ?
A: It is ok if you need 1 piece of this small mixer machine for a test .
Q: How can I pay ?
A: We have western union, bank transfer and Online payment ways ( VISA,MasterCard,JCB,Discover,AMERICAN EXPRESS ) with trade assurance.
Q: Do you have 220V motor and 110V motor for Choice ? A: We have 110V and 220V motor for choice, and meanwhile we have different plug for different countries, our clients can use it directly after receiving it
Q: What's the shipping time
A: Different countries have different shipping time, you can tell me which city you are in, and we would tell you the accurate shipping time .
Q: What's the shipping service
A: We can help complete Customs-clearance, and also cover tariff since many friends don't want to contact Customs to do Customs-clearance in person .
Q: Which Machines are in stock ? I need quick delivery after my payment .
A: All popular Tablet Press Machines are in enough stock, we can ship order quickly and tracking number can be out within 24 hours .
Q: Do I get a die with the machine or do I have to buy it separately?
A: You do get a die with the machine. Every machine comes fitted with a die.
If you would like you can get this customized with your logo or lettering, and it takes around 7 days -10 days for the production .
Q: What is the maximum weight I can have in a tablet with this rotary press machine ?
A: This will mainly depend on the density of the food powder you are going to press .
Q: Is the pressure of this rotary press strong enough to make consistent herbal tablets?
A: Yes, it can be, but as with all products it has to be tested. It is impossible to say if every herbal product will bind because it will depend on the total tablet mix and the shape and size of the tablet.
Q: Could I make effervescent tablets with this small rotary pill press ?
A: Yes, you could but they would be quite small. Most effervescent tablets are larger to accommodate the large amount of actives that they have to hold.
The ZP-7 is only able to make a tablet up to 12mm in diameter, so we do not recommend it for anything larger than that, unless it has been tested first.
Q: How long does it take to do maintenance on the ZP rotary pill press?
A: It takes about 1-2 hours to clean, disassemble, and grease a ZP rotary pill press machine . and we recommend that this is done at the end of every run to ensure the maximum life of your machine.
