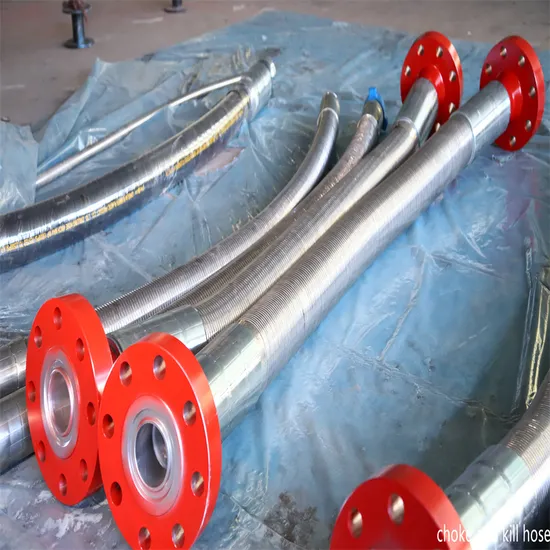

Oilfield Oil Rig High Pressure Fire Resistance Flexible Choke Line and Kill Line Hose 3000psi 5000psi 10000psi 15000psi Oilfield Drilling Hose API 16c Hose

Product Description

Oilfield Oil Rig High Pressure Fire Resistance Flexible Choke Line and Kill Line Hose 3000psi 5000psi 10000psi 15000psi Oilfield Drilling Hose API 16c hose
Product Parameters

Hose I. D. (inch) (mm)	Hose I. D. (mm)	Outer Diameter(inch) (mm)	Outer Diameter(mm)	Flame Shield	Amored	WockingPessuE (bar )	WockingPessuE (psi)	Test Pressure (bar)	Test Pressure (Psi)	55ifaty Gosficen	FSL	MBRoperalon (m)	MBRoperalon (m)	Weight (Kg/m)	LengthMax (m)
2	51	5.98	152	Yes	No	345	5000	517	7500	2.25	FSL3	0.9	1	40	70
2	51	6.46	164	Yes	Yes	345	5000	517	7500	2.25	FSL3	0.9	1	46.8	70
2	51	6.14	156	Yes	No	690	10000	1034	15000	2.25	FSL3	1.2	1.3	44.6	70
2	51	6.61	168	Yes	Yes	690	10000	1034	15000	2.25	FSL3	1.2	1.3	49.7	70
2	51	732	186	Yes	No	1034	5000	1552	22500	2.25	FSL3	13	1.4	74	70
2	51	7.8	198	Yes	Yes	1034	15000	1552	22500	2.25	FSL3	13	1.4	82	70
3	76	7.01	178	Yes	No	345	5000	517	7500	2.25	FSL3	1.1	1.2	50	70
3	76	7.44	189	Yes	Yes	345	5000	517	7500	2.25	FSL3	1.1	1.2	58.5	70
3	76	7.24	184	Yes	No	690	10000	1034	15000	2.25	FSL3	1.4	1.5	54.6	70
3	76	7.68	195	Yes	Yes	690	10000	1034	15000	2.25	FSL3	1.4	1.5	61.2	70
3	76	8.46	215	Yes	No	1034	15000	1552	22500	2.25	FSL3	1.6	1.7	93.3	70
3	76	8.86	225	Yes	Yes	1034	15000	1552	22500	2.25	FSL3	1.6	1.7	101	70
4	102	8.98	228	Yes	No	345	5000	517	7500	2.25	FSL3	15	1.6	93.5	70
4	102	9.41	239	Yes	Yes	345	5000	517	7500	2.25	FSL3	15	1.6	103	70
4	102	9.13	232	Yes	No	690	10000	1034	15000	2.25	FSL3	1.6	1.7	97	70
4	102	9.57	243	Yes	Yes	690	10000	1034	15000	2.25	FSL3	1.6	1.7	1055	70

Product Description
Oilfield Oil Rig High Pressure Fire Resistance Flexible Choke Line and Kill Line Hose 3000psi 5000psi 10000psi 15000psi Oilfield Drilling Hose API 16c hose
Structural characteristics:
Inner layer material: hydrogenated nitrile rubber/nitrile rubber/nylon
Working temperature: -29ºC~+121ºC
Survival temperature: 177ºC can be used continuously for 1 hour
Flexibility level: FSLO~FSL3
Hose characteristics: resistant to wear, corrosion, oil-based/water-based mud, methane and hydrogen sulfide, etc.
Connection form: flange/union/thread
Optional accessories: safety pipe clamp/hose lifting device/stainless steel armor
